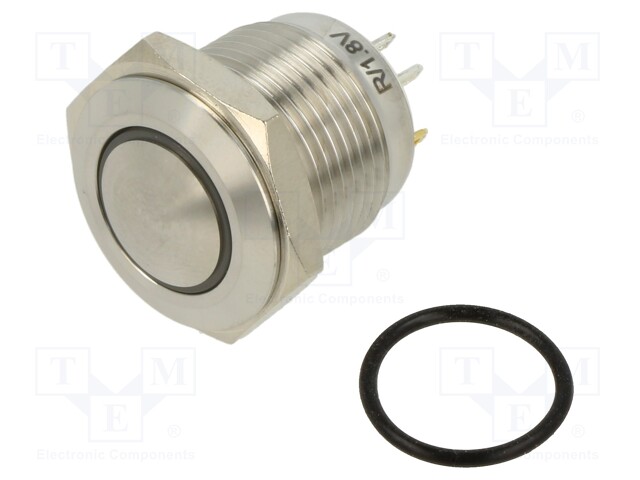

Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP65; Ø16mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GQ16B-10E/J/41RGB/S
    Tootja: ONPOW
    Tootja tootekood: GQ16B-10E/J/41RGB/S
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Illumination
    • Illumination
    • Electrical life
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Operating Force
    • Button shape
    • Ring shape

    11,22 € 11,22 € (KM-TA) 11.22 EUR

    11,22 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: vandal resistant; Pos: 2; SPST-NO; 3A/250VAC; IP65; Ø16mm

    Operating temperature -25...50°C
    IP rating IP65
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Contact material silver alloy
    Max. contact resistance 50mΩ
    Body material stainless steel
    Mounting hole diameter Ø16mm
    Body colour silver
    Mechanical durability 1000000cycles
    Illumination LED, ring
    Electrical life 50000cycles
    Contacts configuration SPST-NO
    AC contacts rating @R 3A / 250V AC
    Switching method OFF-(ON)
    Operating Force 4N
    Button shape convex
    Ring shape rounded
