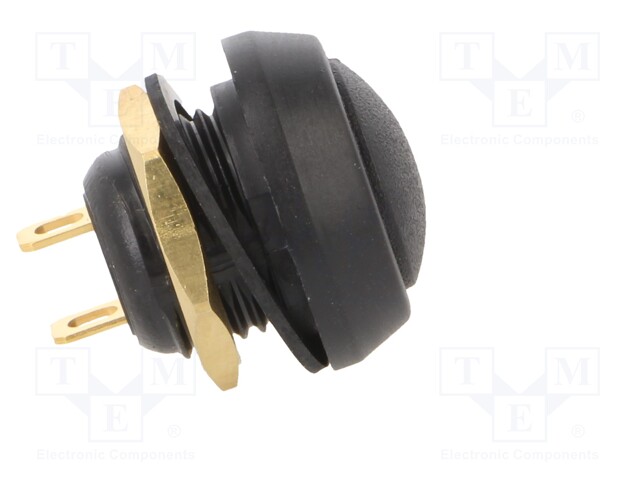

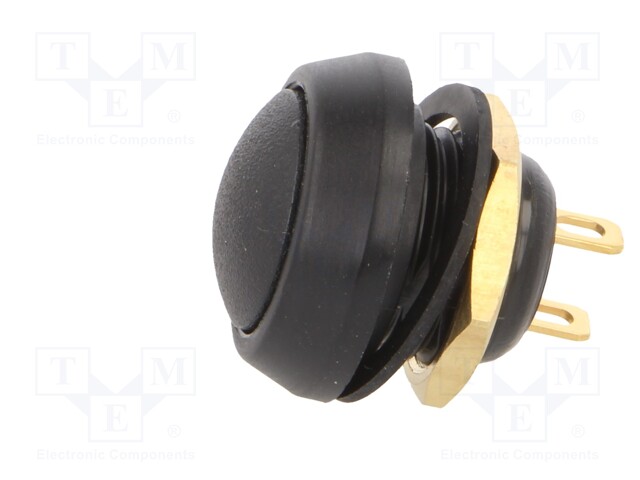

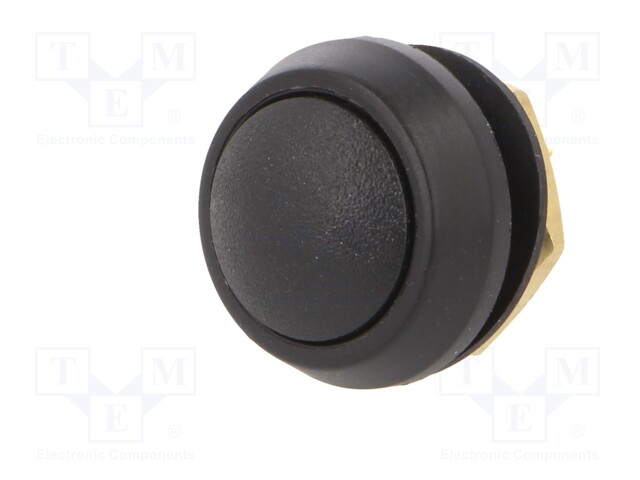

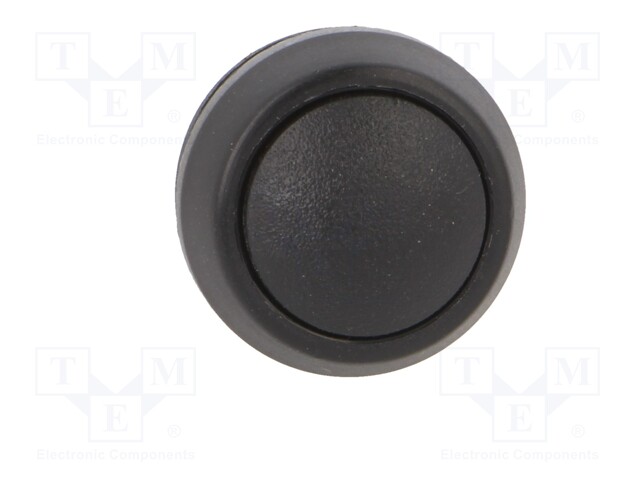

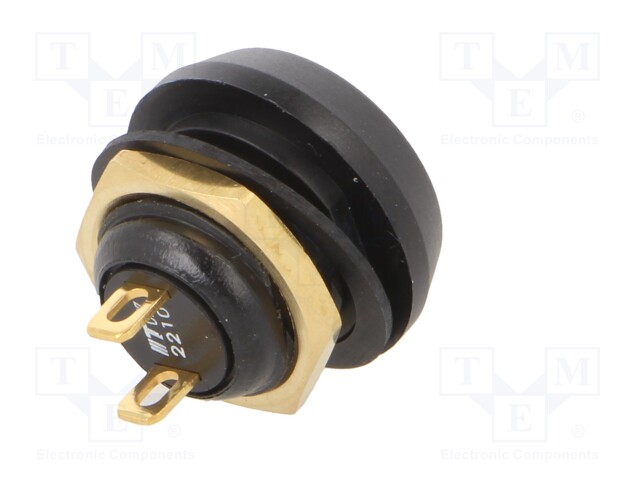

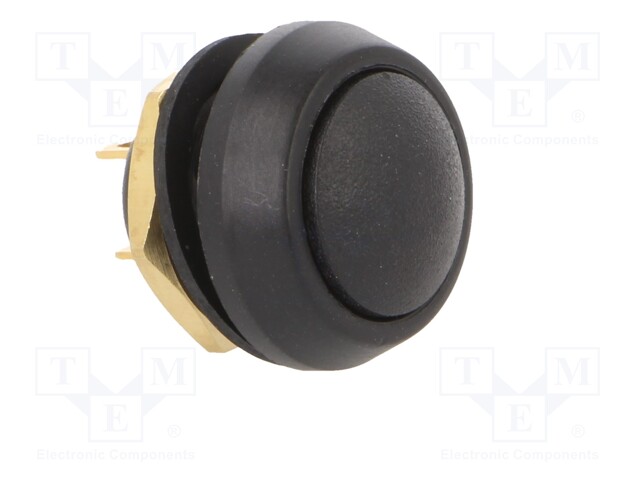

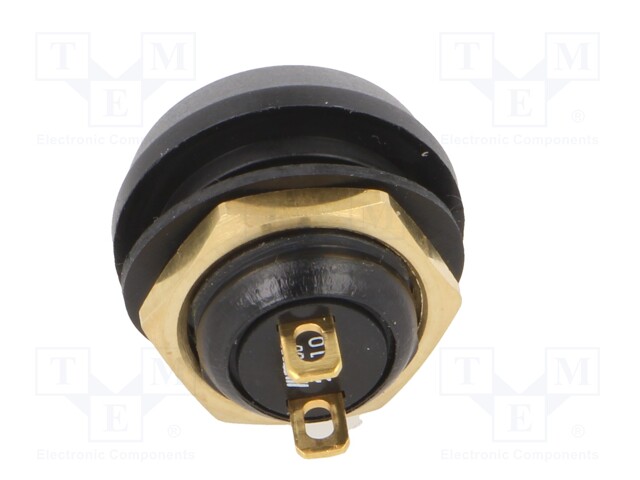

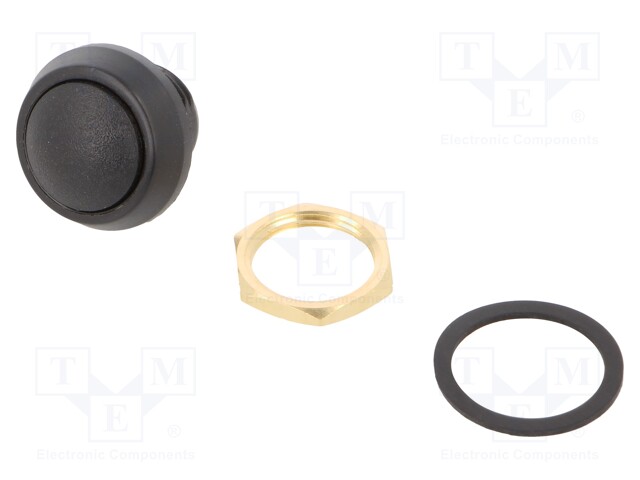

Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.1A/50VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: W59-511
    Tootja: ITW SWITCHES
    Tootja tootekood: W59-511
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance
    • Mounting hole diameter
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape

    14,45 € 14,45 € (KM-TA) 14.450000000000001 EUR

    14,45 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.1A/50VDC

    Mounting panel
    Operating temperature -40...105°C
    IP rating IP67 (from the front)
    Type of switch push-button
    Number of positions 2
    Leads for soldering
    Max. contact resistance 50mΩ
    Mounting hole diameter Ø13.6mm
    Electrical life 500000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 100mA / 50V DC
    AC contacts rating @R 125mA / 125V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3N
    Actuator colour red
    Button shape round
