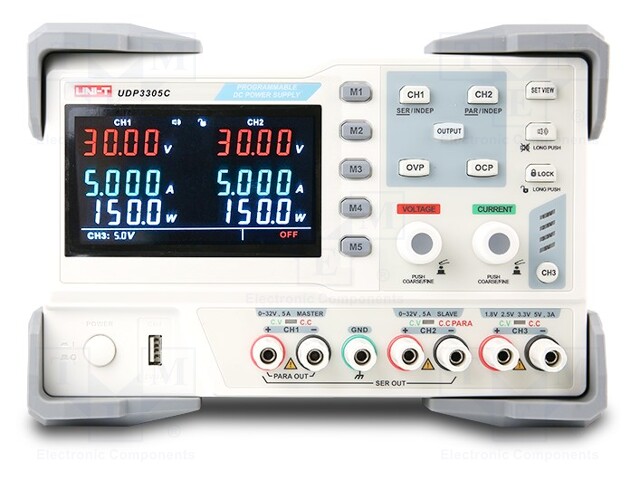

Power supply: laboratory; linear,multi-channel; Ch: 3; 0÷30VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
UDP3303C
Tootja: UNI-T
Tootja tootekood: UDP3303C
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEB5AF486FD728A0D6&compId=UDP3303C.txt?ci_sign=5c77e4d08c5f0e141286aef6d7f19b966a33c9d3
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEBB83059212E8E0D6&compId=UDP3000.pdf?ci_sign=e39cf3e8e51f5cf055f87e196305e720deff9e05
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEBB8306511A8940D6&compId=UDP3000-UM.pdf?ci_sign=07d73c906b1e79fb75201a329c16d3708f0a4bc8
Spetsifikatsioon tootele Power supply: laboratory; linear,multi-channel; Ch: 3; 0÷30VDC
| Output current | 0...3A |
| Supply voltage | 100...230V AC |
| Number of channels | 3 |
| Protection | anti-overload |
| Interface | RS232, USB device |
| Type of power supply | programmable laboratory |
| Output voltage | 0...30V DC |
| Kind of display used | LCD |
| Kind of power supply | linear, multi-channel |
| Measuring instrument features | automatic switching to constant voltage or constant current operation |
| Standard equipment | mains cable, RS232 cable, USB cable |
| Output voltage resolution | 10mV |
| Output current resolution | 1mA |
