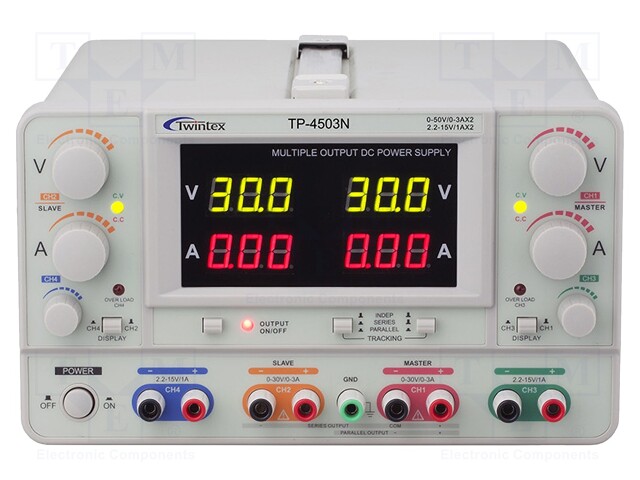

Power supply: laboratory; Channels: 4; 0÷50VDC; 0÷3A; 0÷50VDC; 0÷3A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TP-4503N
Tootja: TWINTEX
Tootja tootekood: TP-4503N
Product downloads
Spetsifikatsioon tootele Power supply: laboratory; Channels: 4; 0÷50VDC; 0÷3A; 0÷50VDC; 0÷3A
| Output current | 0...3A |
| Supply voltage | 100...240V AC |
| Number of channels | 4 |
| Protection | anti-overload, short circuit protection |
| Type of power supply | laboratory |
| Dimensions | 250x150x310mm |
| Output voltage | 0...50V DC |
| Output voltage 3 | 2.2...15V DC |
| Output current 2 | 0...3A |
| Output voltage 2 | 0...50V DC |
| Output current 3 | 1A |
| Kind of power supply | linear, multi-channel |
| Measuring instrument features | simultaneous voltage and current readout, voltage and current stepless adjustment |
| Output voltage 4 | 2.2...15V DC |
| Output current 4 | 1A |
| Output voltage resolution | 100mV |
| Output current resolution | 10mA |
| Voltage load regulation | ≤0,01% + 3mV |
| Current load regulation | ≤0,2% + 3mA |
