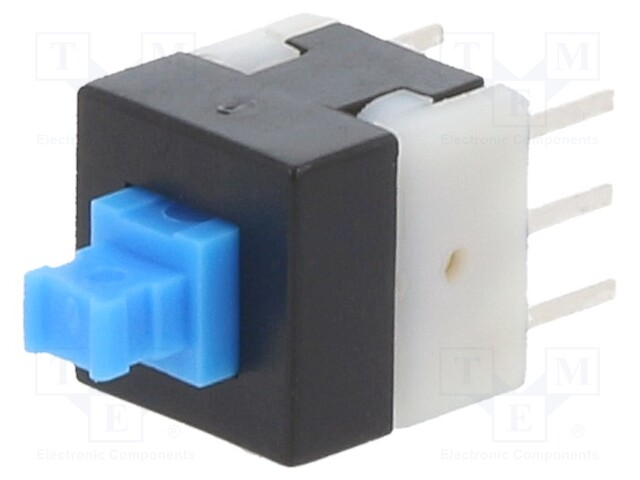

Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; Illumin: none; THT

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TL2285EE
    Tootja: E-SWITCH
    Tootja tootekood: TL2285EE
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Illumination
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button height
    • Button marking

    1,70 € 1,70 € (KM-TA) 1.7 EUR

    1,70 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; DPDT; 0.1A/30VDC; Illumin: none; THT

    Mounting THT
    Operating temperature -20...70°C
    Type of switch push-button
    Contact plating silver plated
    Number of positions 2
    Leads for soldering, straight
    Contact material copper alloy
    Max. contact resistance 100mΩ
    Terminal pitch 2.5mm
    Illumination none
    Electrical life 10000cycles
    Contacts configuration DPDT
    DC contacts rating @R 100mA / 30V DC
    Switching method ON-ON
    Stable positions number 2
    Operating Force 1.8N
    Button shape rectangular
    Button height 13.5mm
    Button marking blank
