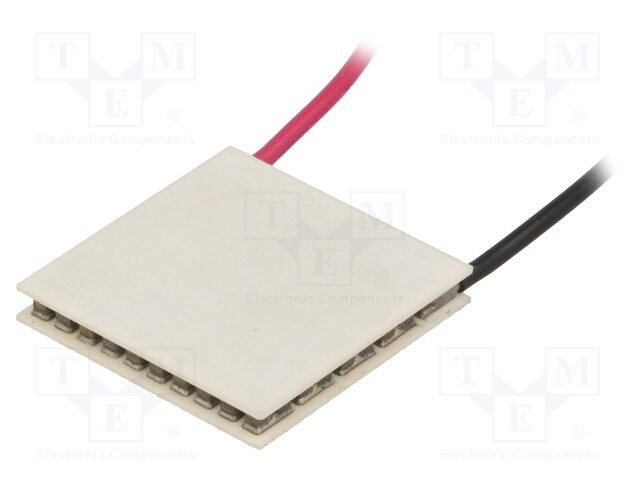

Module: Peltier; 5.9V; 8A; 25x25x3.5mm; 30W; Mat: Al2O3; 20AWG; 66°C

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: TEC1-04908
    Tootja: STONECOLD
    Tootja tootekood: TEC1-04908
    • Resistance
    • Max. operating current
    • Operating temperature
    • Material
    • Type of module
    • Contact material
    • Body dimensions
    • Max. operating voltage
    • Max. temperature difference
    • Wire insulation material
    • Max. heat pump capacity
    • Cable length

    16,91 € 16,91 € (KM-TA) 16.91 EUR

    16,91 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: Peltier; 5.9V; 8A; 25x25x3.5mm; 30W; Mat: Al2O3; 20AWG; 66°C

    Resistance 550mΩ
    Max. operating current 8A
    Operating temperature ≤ 90°C
    Material Al₂O₃
    Type of module Peltier
    Contact material BiSn
    Body dimensions 25x25x3.5mm
    Max. operating voltage 5.9V
    Max. temperature difference 66°C
    Wire insulation material teflon
    Max. heat pump capacity 30W
    Cable length 151mm
