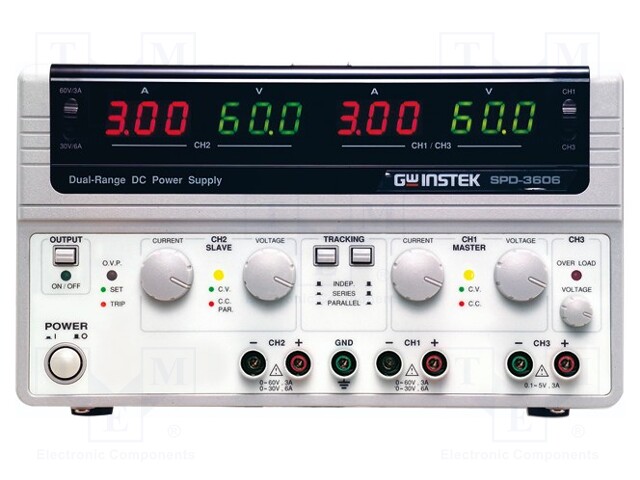

Power supply: laboratory; Channels: 3; 0÷30VDC; 0÷6A; 0÷60VDC; 0÷3A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
SPD-3606
Tootja: GW INSTEK
Tootja tootekood: SPD-3606
Product downloads
Spetsifikatsioon tootele Power supply: laboratory; Channels: 3; 0÷30VDC; 0÷6A; 0÷60VDC; 0÷3A
| Output current | 0...6A |
| Supply voltage | 100...240V AC |
| Operating temperature | 0...40°C |
| Number of channels | 3 |
| Protection | against reverse polarity, anti-overload, anti-overvoltage, overheating |
| Type of power supply | laboratory |
| Dimensions | 255x145x265mm |
| Output voltage | 0...30V DC |
| Kind of display used | LED |
| Plug variant | EU |
| Output voltage 3 | 100mV...5V DC |
| Output current 2 | 0...3A |
| Output voltage 2 | 0...60V DC |
| Output current 3 | 3A |
| Kind of power supply | multi-channel, switched-mode |
| Measuring instrument features | simultaneous voltage and current readout |
| Standard equipment | mains cable, test leads |
| Output voltage resolution | 100mV |
| Output current resolution | 10mA |
