Power supply: switched-mode; LED; 60W; 12VDC; 8.4÷12VDC; 5A; IP64
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PLN-60-12
Tootja: MEAN WELL
Tootja tootekood: PLN-60-12
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BB9C1C9B1D30FA8&compId=INB-MN-LED-EN.pdf?ci_sign=a4547431a59a29fd5cdb2668f74feb5197ccd283
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA3908F7DBE84A0C7&compId=Mean_Well_LED-Catalog.pdf?ci_sign=9418c0cab4404a4678439163a402f890ca6b0e6f
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBABB3BDD562D980C7&compId=MEANWELLLED.txt?ci_sign=47dae5812981da6c821142ede2a94e1719cfab54
- pVersion=0046&contRep=ZT&docId=E1C0556C61015CF1A6F5005056AB5A8F&compId=pln60.pdf?ci_sign=66656770021d927c1023d4c38fb0378b62db31be
Spetsifikatsioon tootele Power supply: switched-mode; LED; 60W; 12VDC; 8.4÷12VDC; 5A; IP64
| Output current | 5A |
| Supply voltage | 90...264V AC, 127...417V DC |
| Power | 60W |
| Operating temperature | -30...50°C |
| IP rating | IP64 |
| Protection | overheating, anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | PLN-60 |
| Application | LED |

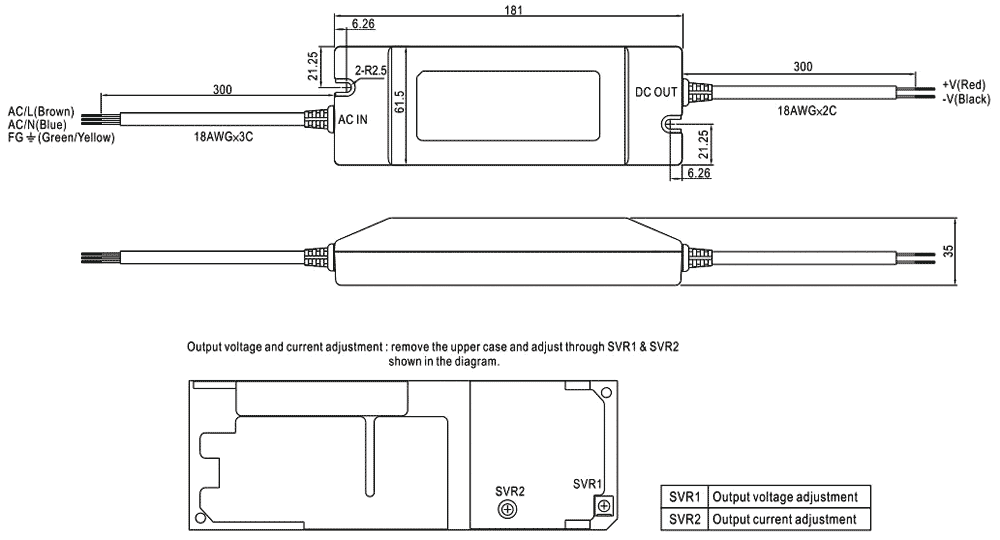

| Body dimensions | 61.5x181x35mm |
| Output voltage | 12V DC |
| Additional functions | active PFC |
| Efficiency | 85% |
| Number of outputs | 1 |
| Electrical connection | 320mm wires |
| Kind of case | 960A |
