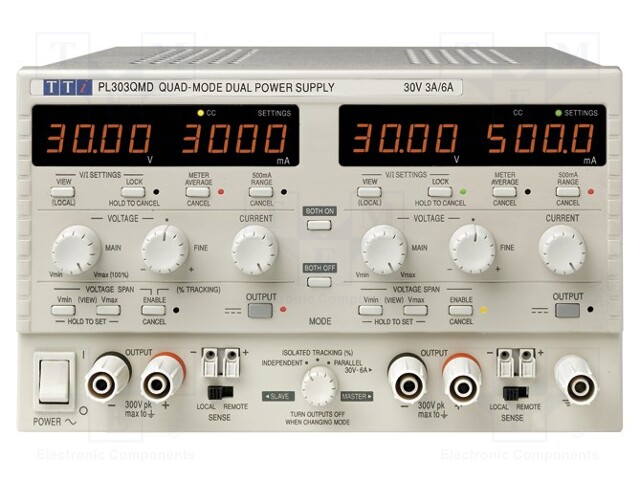

Power supply: laboratory; Channels: 2; 0÷30VDC; 0÷3A; 0÷30VDC; 0÷3A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PL303QMD
Tootja: AIM-TTI
Tootja tootekood:
Product downloads
Spetsifikatsioon tootele Power supply: laboratory; Channels: 2; 0÷30VDC; 0÷3A; 0÷30VDC; 0÷3A
| Output current | 0...3A |
| Supply voltage | 100...240V AC |
| Number of channels | 2 |
| Protection | against reverse polarity, short circuit protection |
| Type of power supply | laboratory |
| Series | PL |
| Dimensions | 210x130x315mm |
| Output voltage | 0...30V DC |
| Plug variant | EU |
| Output current 2 | 0...3A |
| Output voltage 2 | 0...30V DC |
| Kind of power supply | linear, multi-channel |
| Measuring instrument features | 4 modes of operation: independent, parallel and 2 tracking modes, coarse and fine voltage adjustment, constant voltage or constant current operation, LOCK function (settings lock), simultaneous voltage and current readout, voltage and current stepless adjustment |
| Output voltage resolution | 10mV |
| Output current resolution | 1mA |
| Voltage load regulation | ≤0,01% + 2mV |
