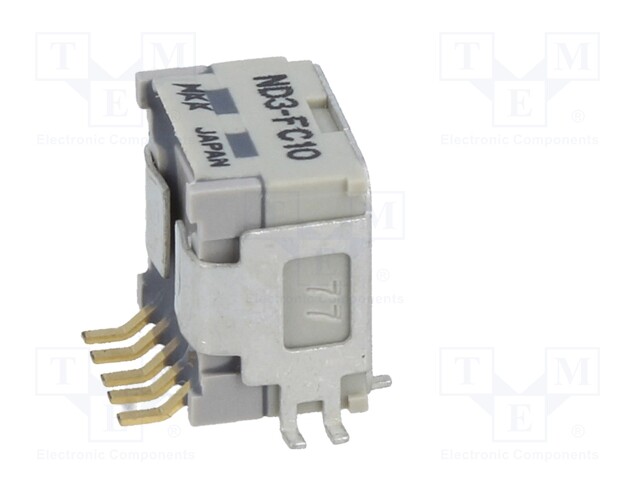

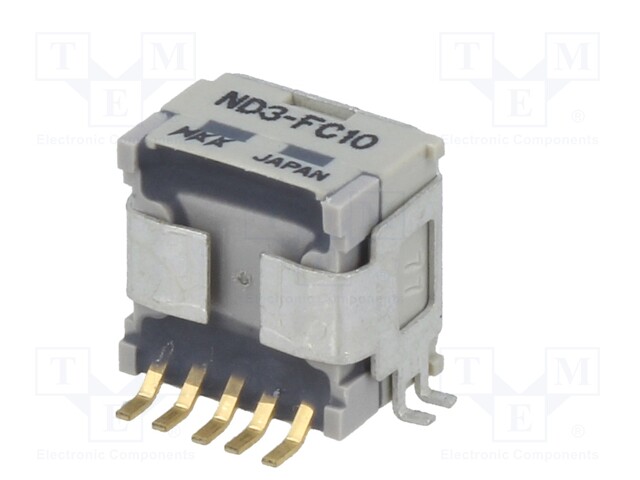

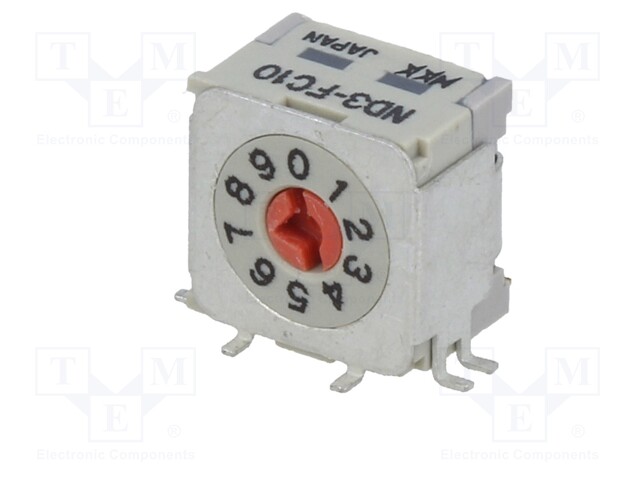

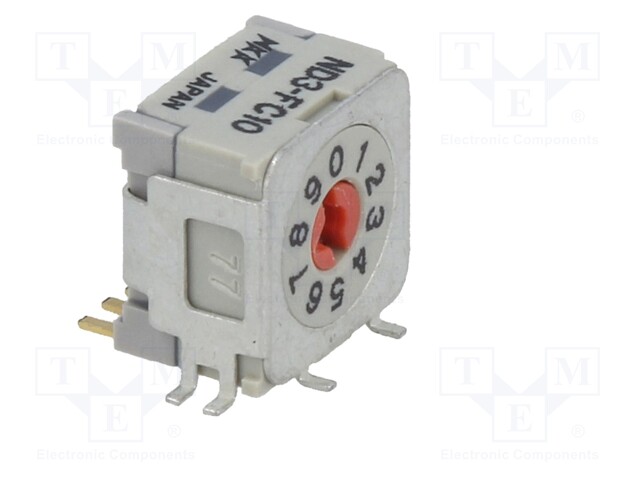

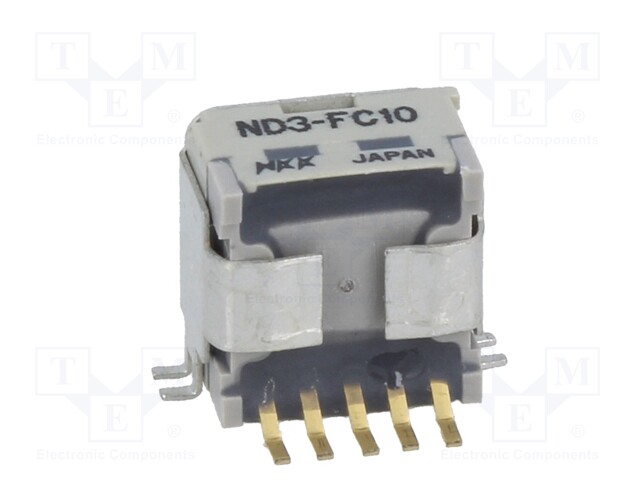

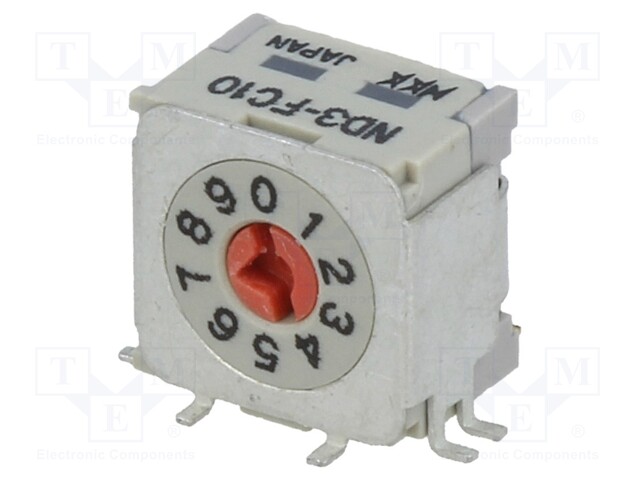

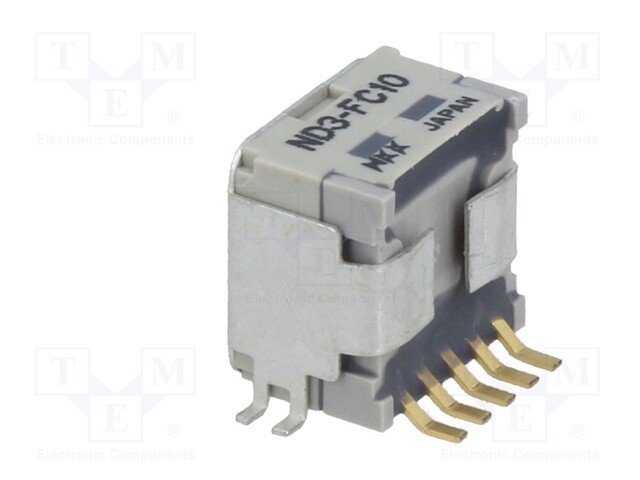

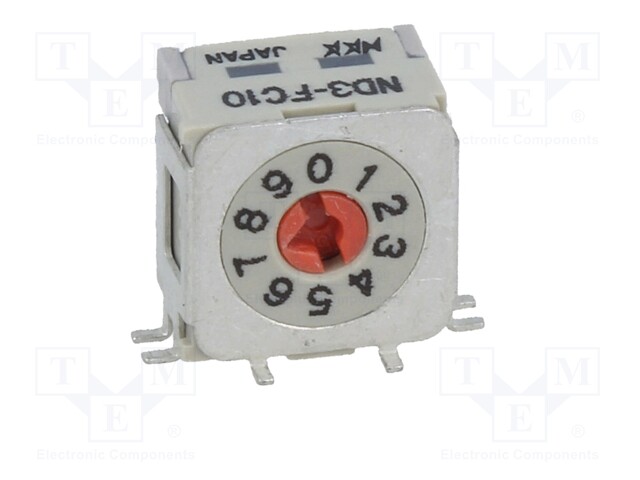

Encoding switch; angular; Rcont max: 30mΩ; DC load @R: 0.1A/5VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: ND3FC10H
Tootja: NKK SWITCHES
Tootja tootekood: ND3FC10H
  • Mounting
  • Operating temperature
  • Type of switch
  • Kind of package
  • Number of positions
  • Leads
  • Max. contact resistance
  • Mechanical durability
  • Min. insulation resistance
  • Electrical life
  • DC contacts rating @R
  • Stable positions number
  • Kind of encoding switch

7,83 € 7,83 € (KM-TA) 7.83 EUR

7,83 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Encoding switch; angular; Rcont max: 30mΩ; DC load @R: 0.1A/5VDC

Mounting angular
Operating temperature -25...85°C
Type of switch encoding switch
Kind of package in-tray
Number of positions 10
Leads for PCB
Max. contact resistance 30mΩ
Mechanical durability 20000cycles
Min. insulation resistance 1GΩ
Electrical life 20000cycles
DC contacts rating @R 100mA / 5V DC
Stable positions number 10
Kind of encoding switch DEC/BCD
