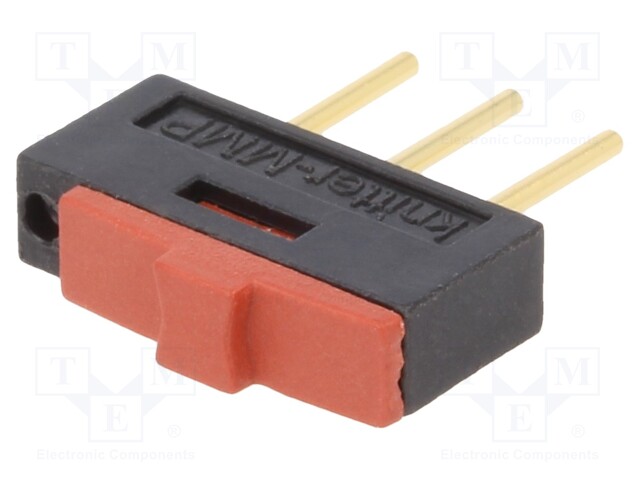

Switch: slide; Pos: 2; 0.3A/24VAC; 0.5A/12VDC; ON-ON; -40÷85°C; 30mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MMP 1010 D-1
    Tootja: KNITTER
    Tootja tootekood: MMP 1010 D-1
    • Mounting
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Terminal pitch
    • Body material
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Illumination
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force

    3,56 € 3,56 € (KM-TA) 3.56 EUR

    3,56 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: slide; Pos: 2; 0.3A/24VAC; 0.5A/12VDC; ON-ON; -40÷85°C; 30mΩ

    Mounting PCB, THT
    Operating temperature -40...85°C
    Type of switch slide
    Contact plating gold-plated
    Number of positions 2
    Leads flat pins
    Max. contact resistance 30mΩ
    Terminal pitch 2.54mm
    Body material polyamide
    Body colour black
    Body dimensions 10x2.5x4.5mm
    Mechanical durability 10000cycles
    Illumination none
    Electrical life 1000cycles
    Contacts configuration SPDT
    DC contacts rating @R 500mA / 12V DC
    Switching method ON-ON
    Stable positions number 2
    Operating Force 7.85N
