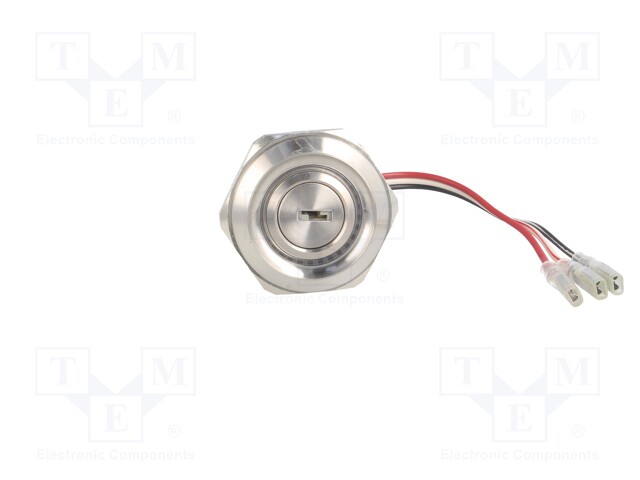

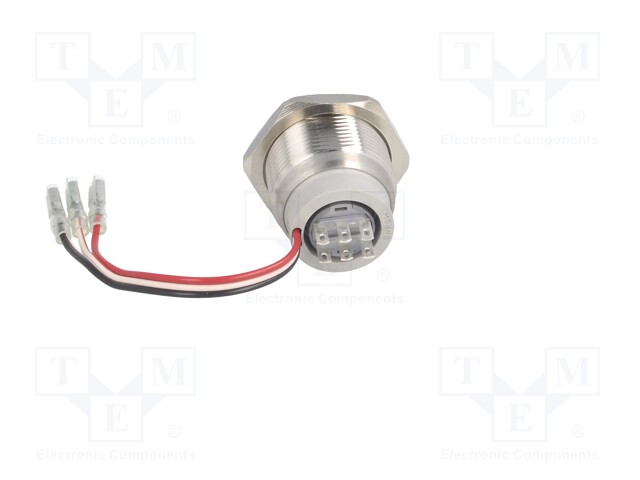

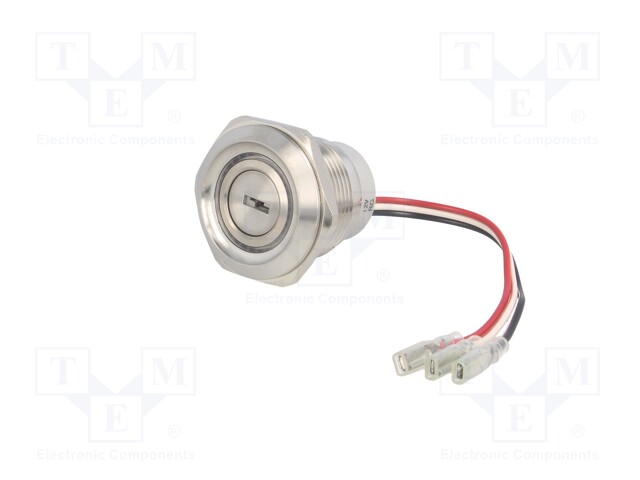

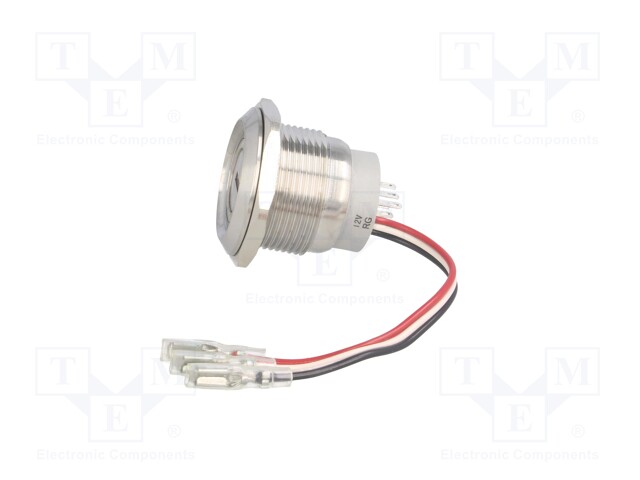

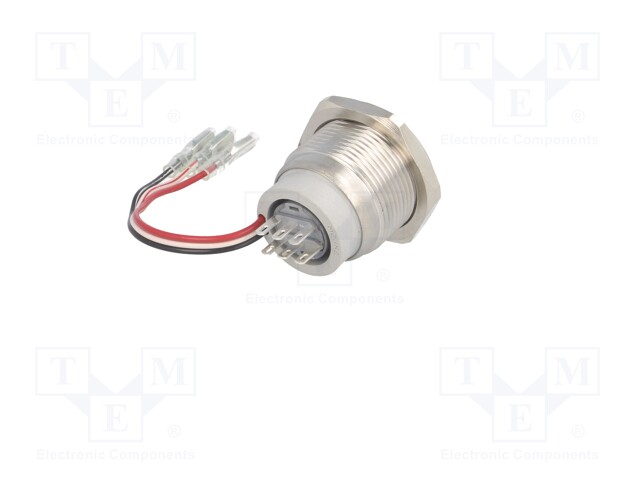

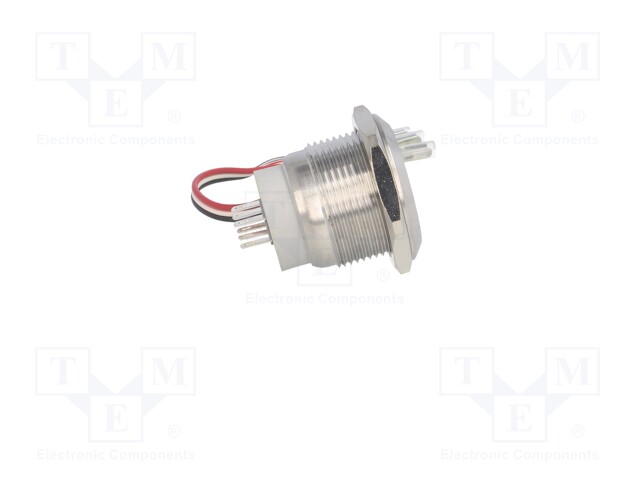

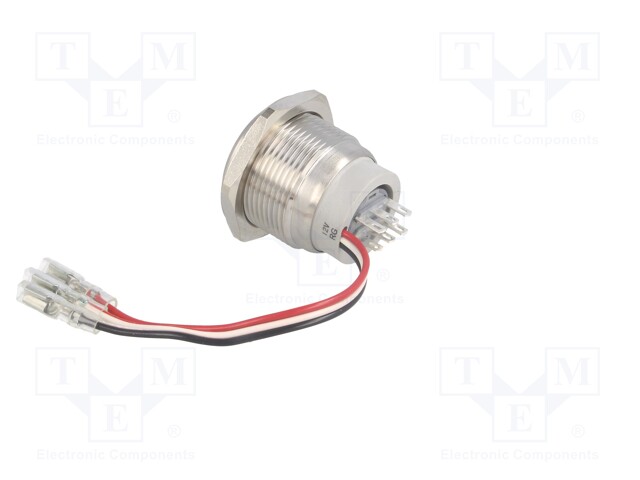

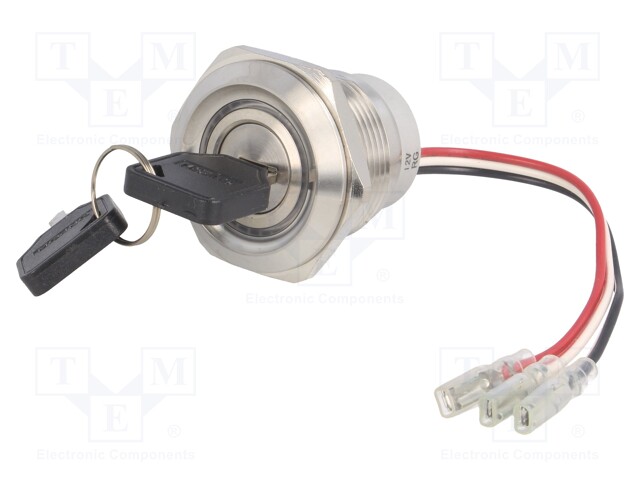

Switch: key switch; Stabl.pos: 3; Contacts: 3PST; Ø30mm; Key: flat

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: LAS1-AGQ30-22Y/31/RG/12V
    Tootja: ONPOW
    Tootja tootekood: LAS1-AGQ30-22Y/31/RG/12V
    • Operating temperature
    • IP rating
    • Type of switch
    • Switches features
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Number of terminals
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Mechanical rotation angle
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Switching method
    • Stable positions number
    • Illumination voltage
    • Ring shape

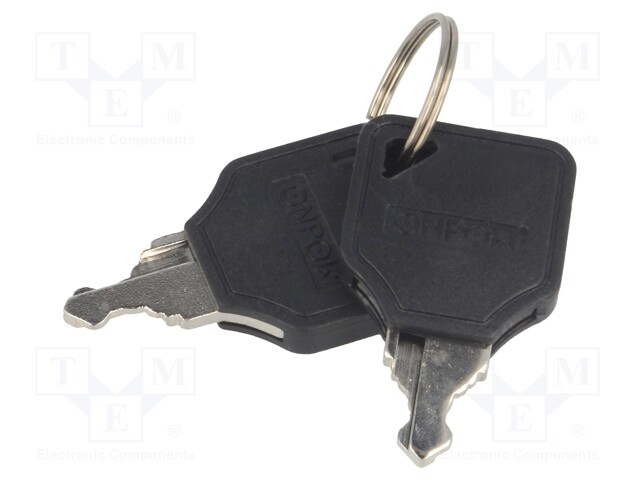

    • Key shape
    • Kind of key

    30,21 € 30,21 € (KM-TA) 30.21 EUR

    30,21 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: key switch; Stabl.pos: 3; Contacts: 3PST; Ø30mm; Key: flat

    Operating temperature -20...55°C
    IP rating IP40
    Type of switch key switch
    Switches features the key can be removed at any position
    Number of positions 3
    Leads for soldering
    Contact material silver alloy
    Max. contact resistance 50mΩ
    Body material stainless steel
    Mounting hole diameter Ø30mm
    Body colour silver
    Mechanical durability 200000cycles
    Number of terminals 8
    Backlight colour red/green
    Illumination ring, LED
    Electrical life 50000cycles
    Mechanical rotation angle 90°
    Test voltage 2kV
    Contacts configuration 3PST
    DC contacts rating @R 1A / 24V DC
    AC contacts rating @R 500mA / 220V AC
    Switching method OFF-ON-ON - line 1, ON-ON-OFF - line 2
    Stable positions number 3
    Illumination voltage 12V
    Ring shape rounded

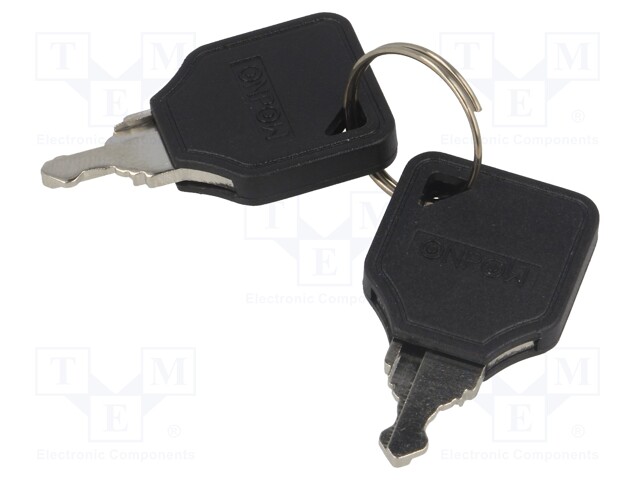

    Key shape flat
    Kind of key symmetrical
