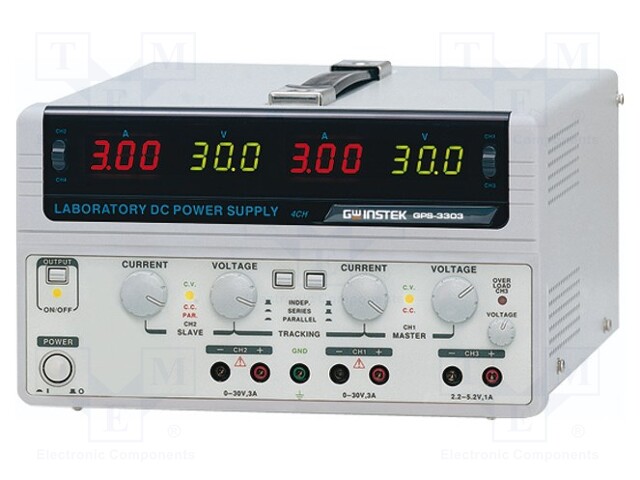

Power supply: laboratory; Channels: 3; 0÷30VDC; 0÷3A; 0÷30VDC; 0÷3A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
GPS-3303
Tootja: GW INSTEK
Tootja tootekood: GPS-3303
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3A3B3C7511D30926B&compId=82PS-30300MM%2B.zip?ci_sign=64f0af1ac7ea5a8113a063e765ea2cb293969e94
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB72103D4F21DC&compId=INB-ZAS-LAB-EN.pdf?ci_sign=db94e243c38f5821daa6230d2999c491a12c8e1a
- pVersion=0046&contRep=ZT&docId=E29C2C71A930BDF19A99005056AB752F&compId=GPS4303.pdf?ci_sign=38616790ccaf6603fa5e2b72b0870150256fc4cc
Spetsifikatsioon tootele Power supply: laboratory; Channels: 3; 0÷30VDC; 0÷3A; 0÷30VDC; 0÷3A
| Output current | 0...3A |
| Supply voltage | 100...240V AC |
| Number of channels | 3 |
| Protection | against reverse polarity, anti-overload |
| Type of power supply | laboratory |
| Dimensions | 255x145x265mm |
| Output voltage | 0...30V DC |
| Output voltage 3 | 5V DC |
| Output current 2 | 0...3A |
| Output voltage 2 | 0...30V DC |
| Output current 3 | 0...3A |
| Kind of power supply | linear, multi-channel |
| Measuring instrument features | simultaneous voltage and current readout, voltage and current stepless adjustment |
| Output voltage resolution | 100mV |
| Output current resolution | 10mA |
| Voltage load regulation | ≤0,01% + 3mV |
