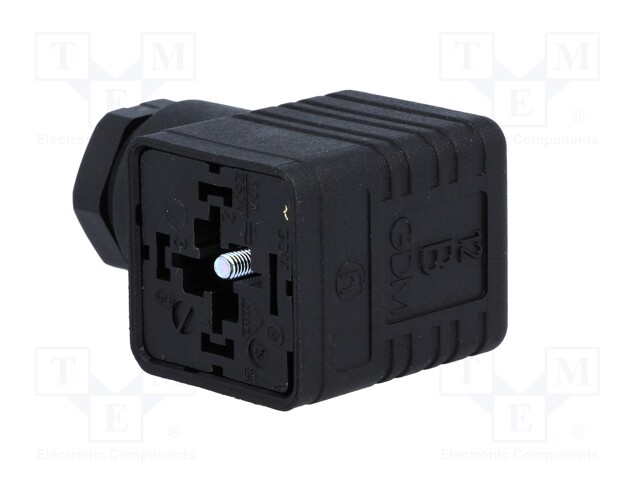

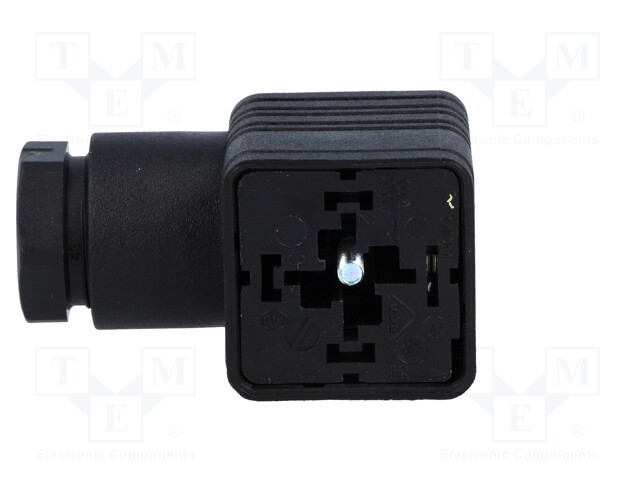

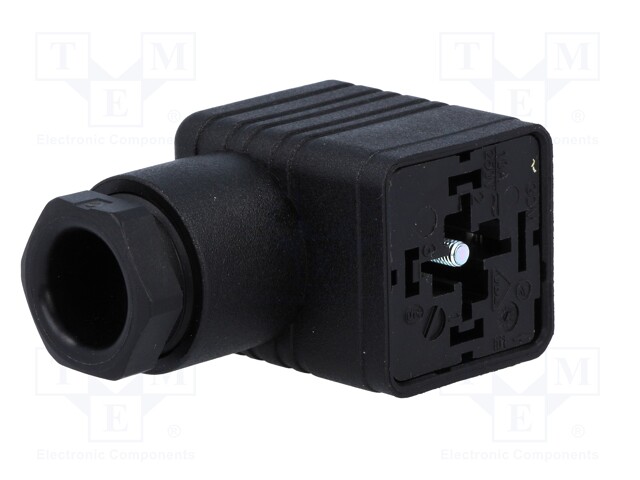

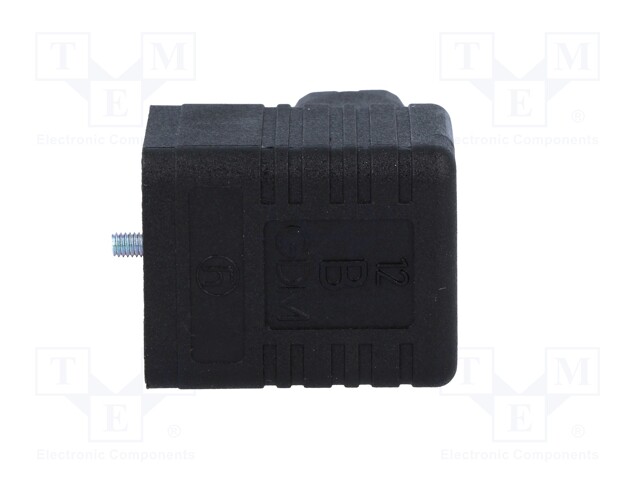

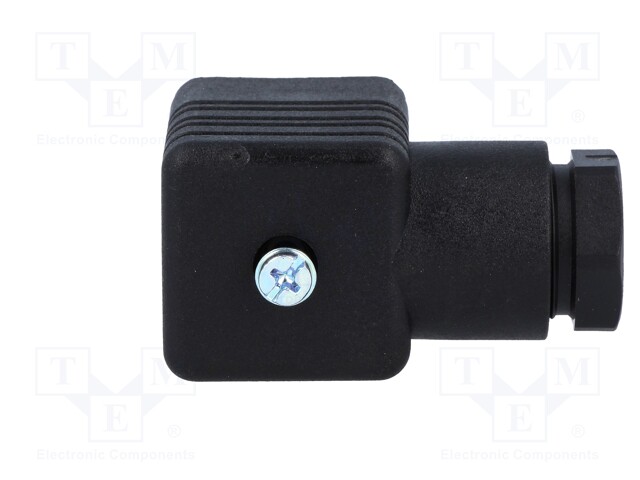

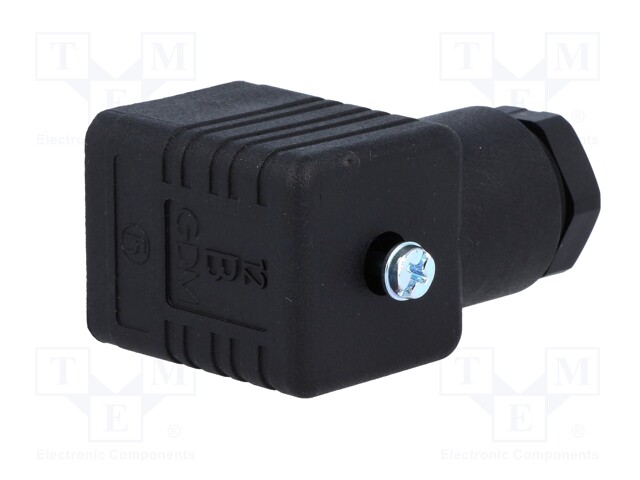

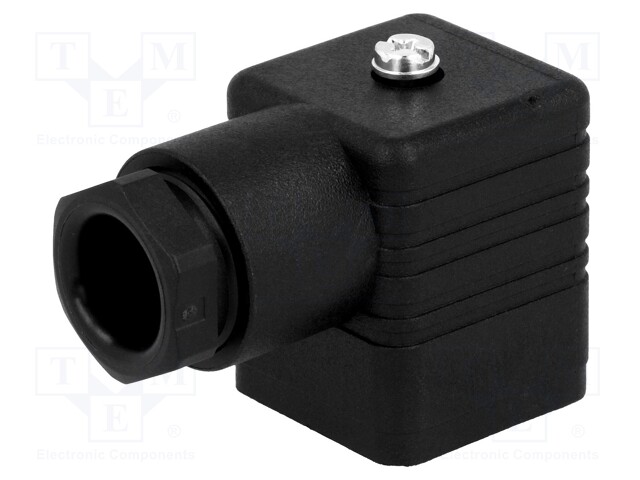

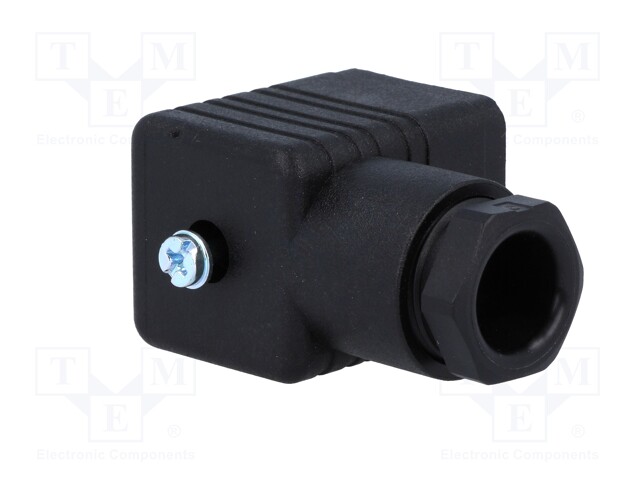

Connector: valve connector; plug; form A; 18mm; female; PIN: 3; 16A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GDM2011SW
    Tootja: HIRSCHMANN
    Tootja tootekood: 931957100 GDM 2011 SCHWARZ
    • Case
    • Operating temperature
    • IP rating
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Type of connector
    • Number of pins
    • Current rating
    • Type of pin configuration
    • Rated voltage
    • Cable external diameter
    • Locking system
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Gland thread

    1,05 € 1,05 € (KM-TA) 1.05 EUR

    1,05 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Connector: valve connector; plug; form A; 18mm; female; PIN: 3; 16A

    Case form A
    Operating temperature -40...125°C
    IP rating IP65
    Contacts pitch 18mm
    Electrical mounting screw terminal
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour black
    Type of connector valve connector
    Number of pins 3
    Current rating 16A
    Type of pin configuration 2+PE
    Rated voltage 250V
    Cable external diameter 6...9mm
    Locking system screws
    Conform to the norm DIN 43650, ISO 4400
    Spatial orientation angled 90°
    Gland thread PG11
