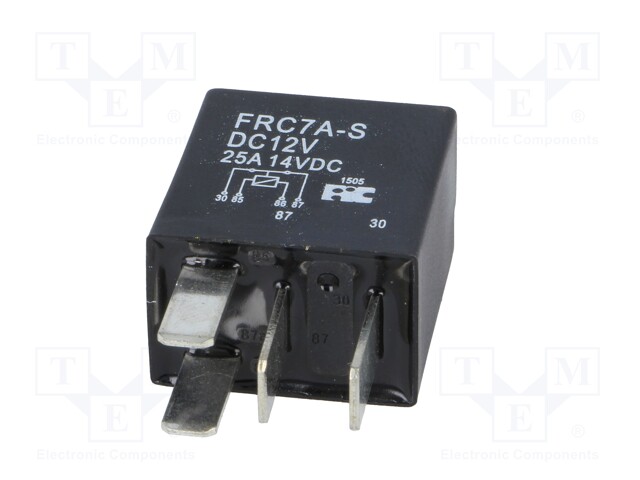

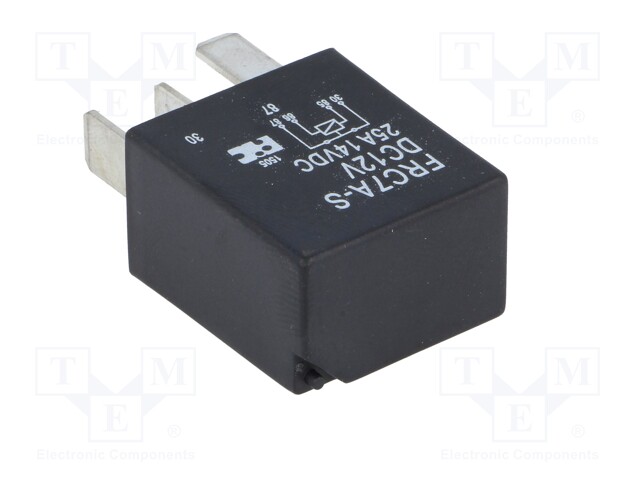

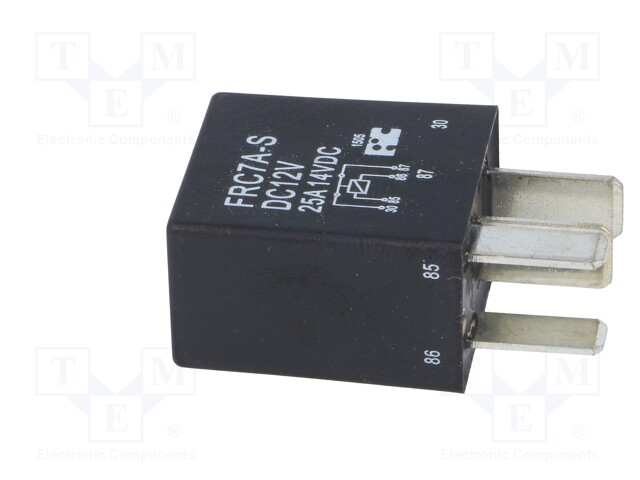

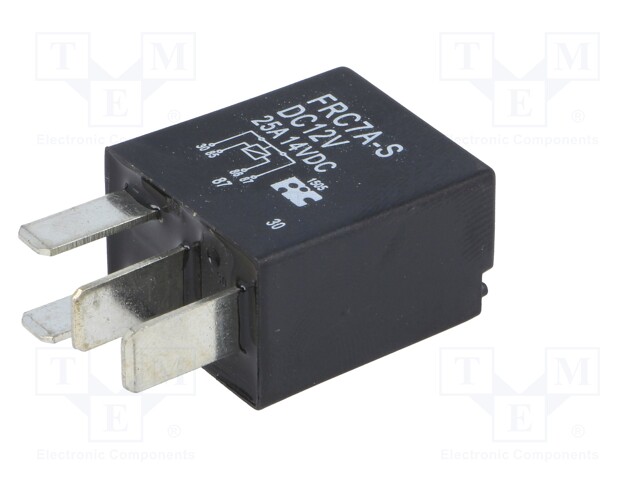

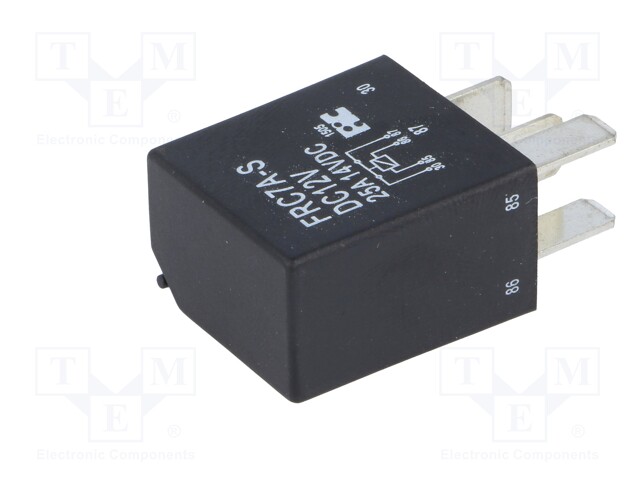

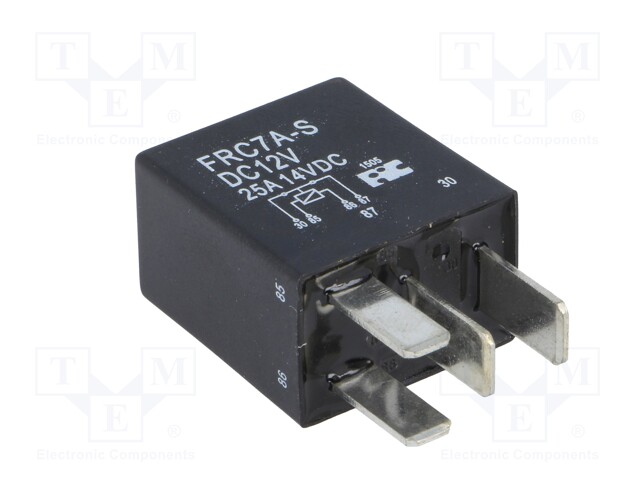

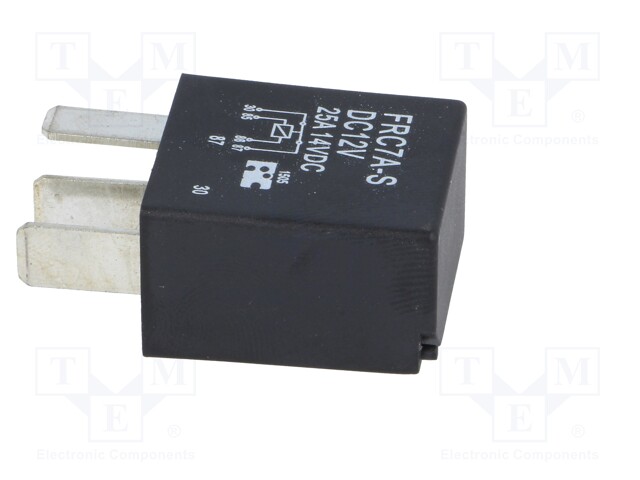

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 25A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FRC7A-S-DC12V
    Tootja: FORWARD INDUSTRIAL CO.
    Tootja tootekood: FRC7A-S-DC12V
    • Mounting
    • Operating temperature
    • Leads
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1,80 € 1,80 € (KM-TA) 1.8 EUR

    1,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 25A; automotive

    Mounting socket
    Operating temperature -40...85°C
    Leads 4,8x0,8mm connectors, 6,4x0,8mm connectors

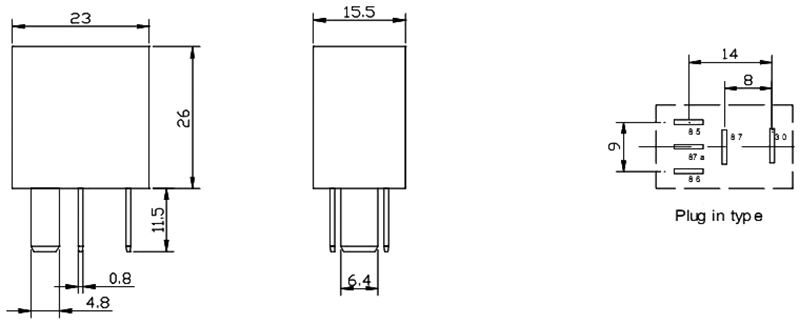

    Body dimensions 15.5x23x26mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 14V DC
    Electrical life 100000cycles
    Coil resistance 120Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 25A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 1.2W
    Operate time 10ms
    Release time 7ms
    Coil current 100mA
