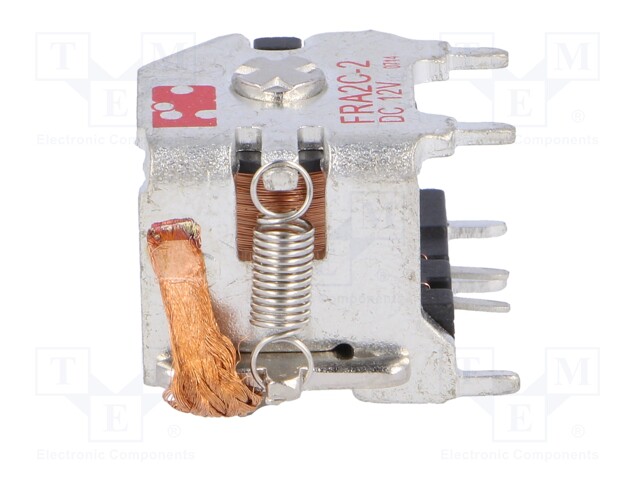

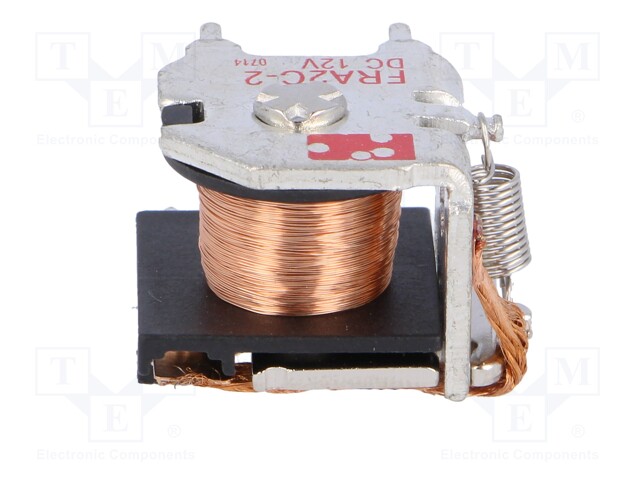

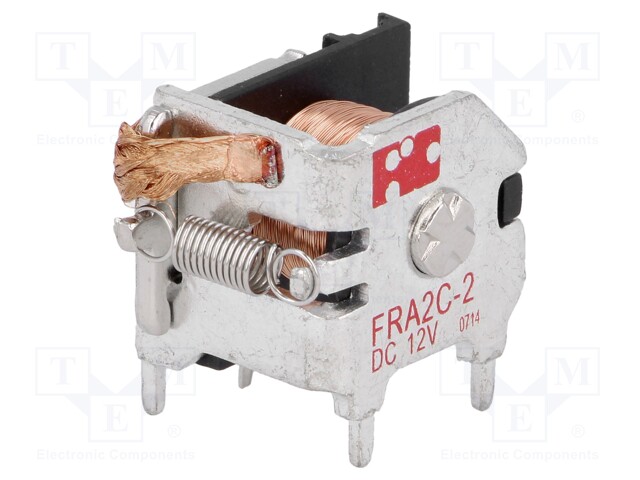

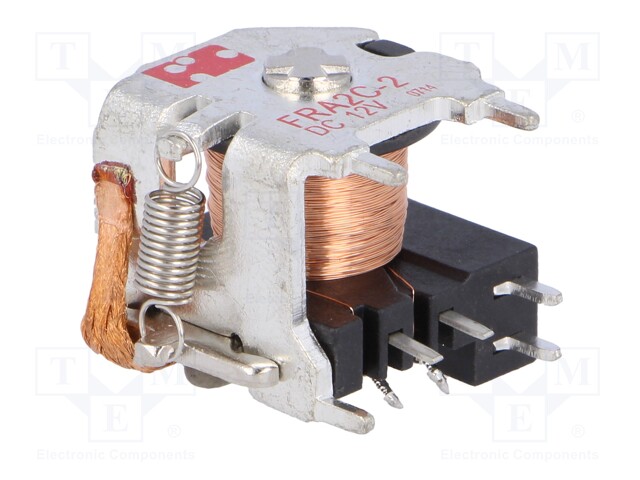

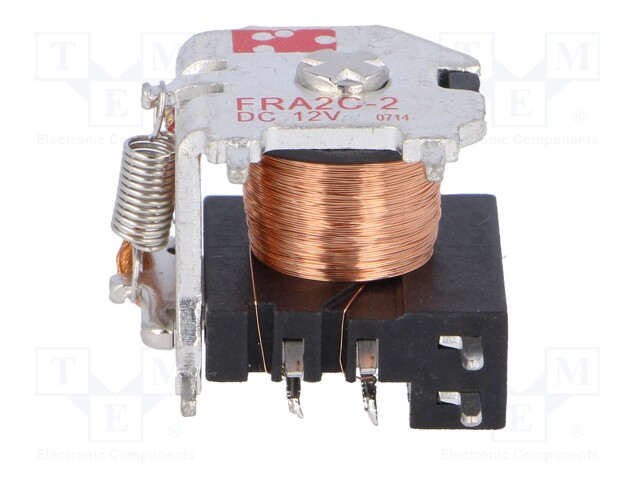

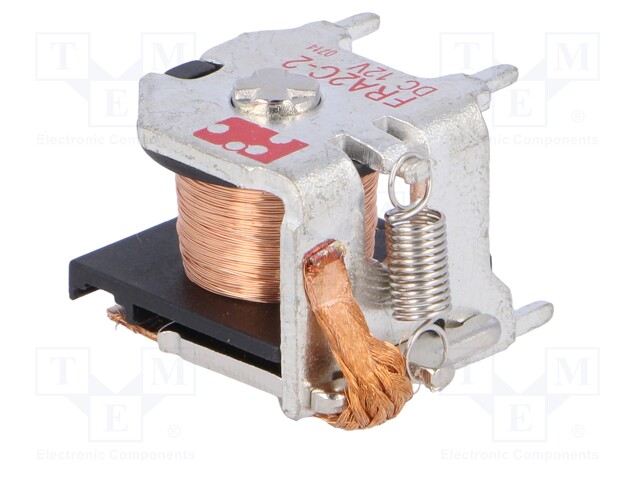

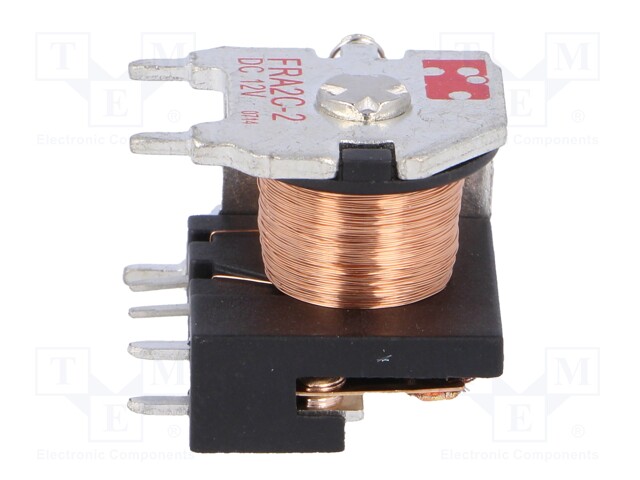

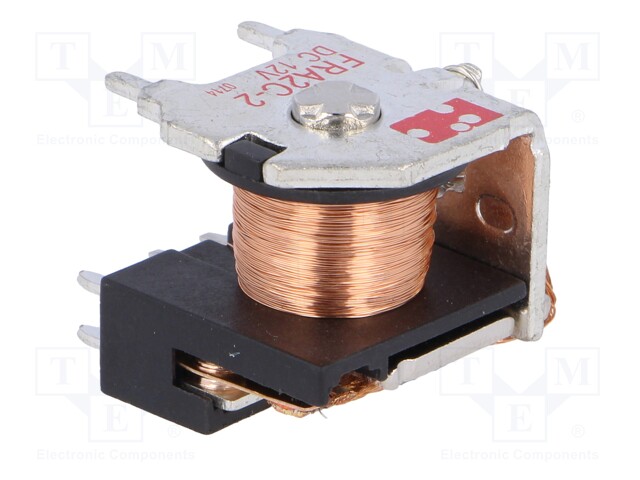

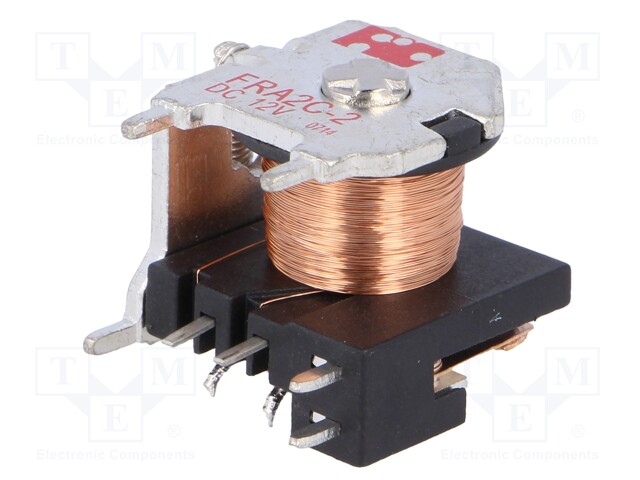

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 1.6W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FRA2C-2-DC12
    Tootja: FORWARD INDUSTRIAL CO.
    Tootja tootekood: FRA2C-2-DC12
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1,88 € 1,88 € (KM-TA) 1.8800000000000001 EUR

    1,88 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 1.6W

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgSnO<sub>2</sub>

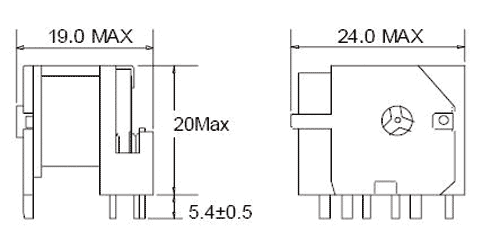

    Body dimensions 26x22x22.3mm
    Mechanical durability 100000000cycles
    Switched voltage ≤ 75V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC

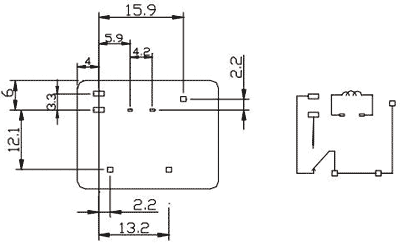

    Contacts configuration SPDT
    DC contacts rating @R 30A / 14V DC
    Contact resistance 30mΩ
    Contact current max. 40A
    Relay variant automotive
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 1.6W
