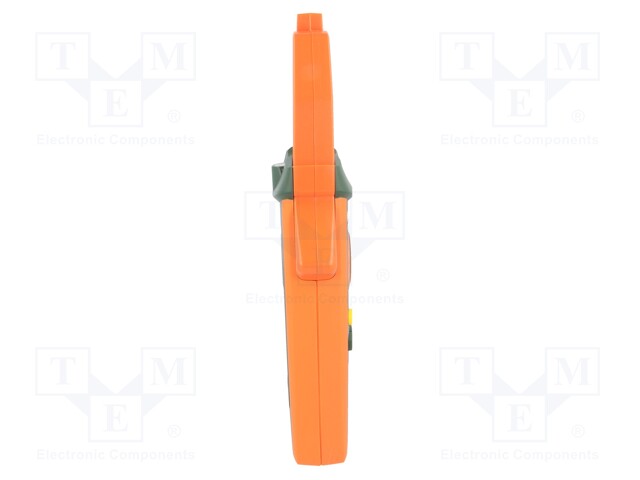

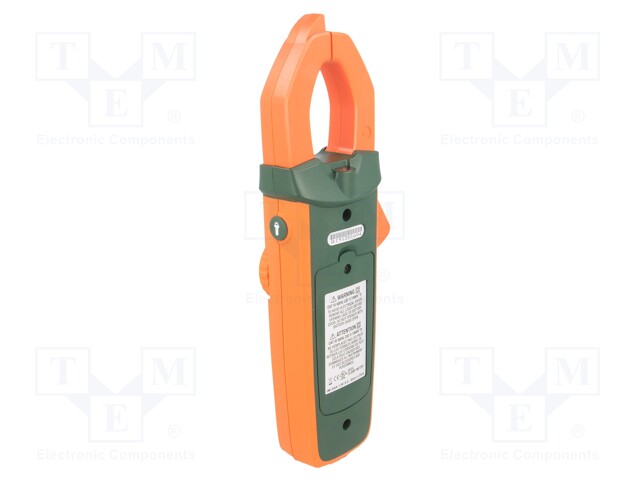

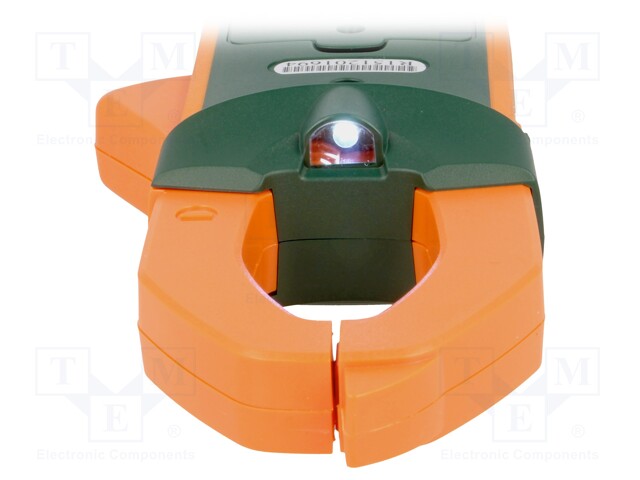

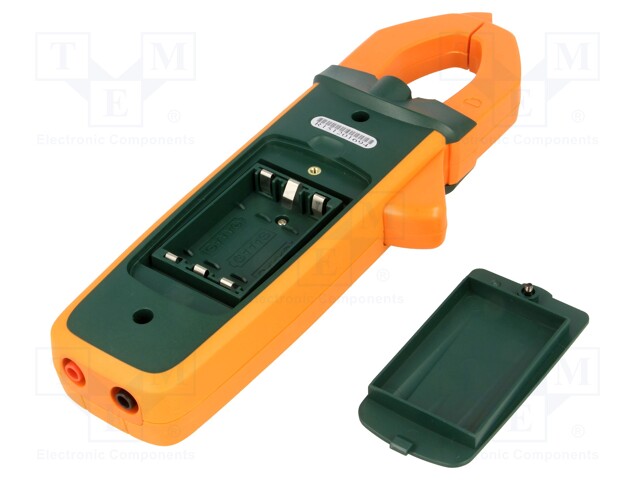

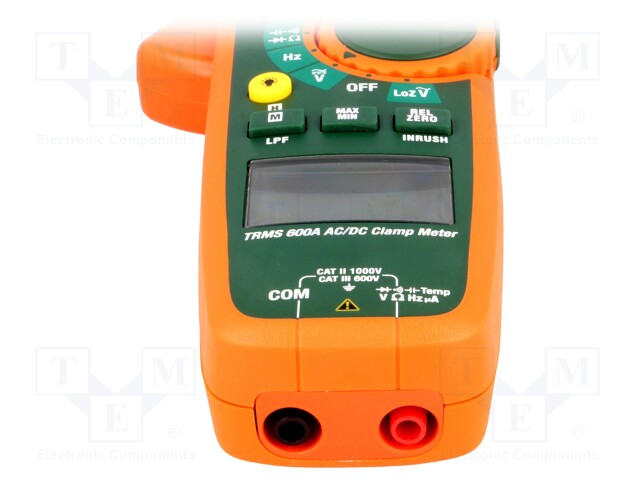

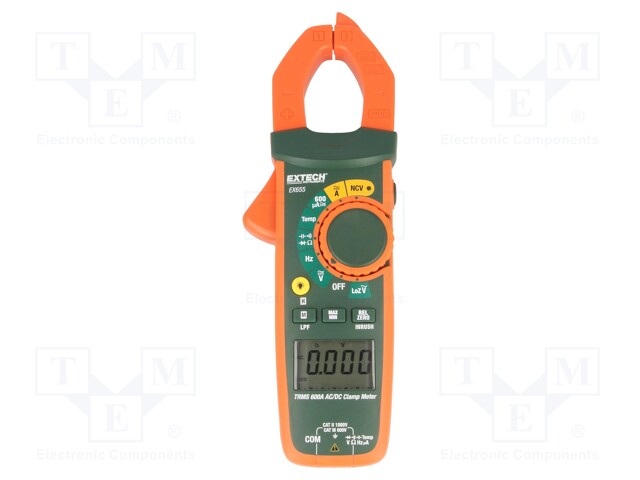

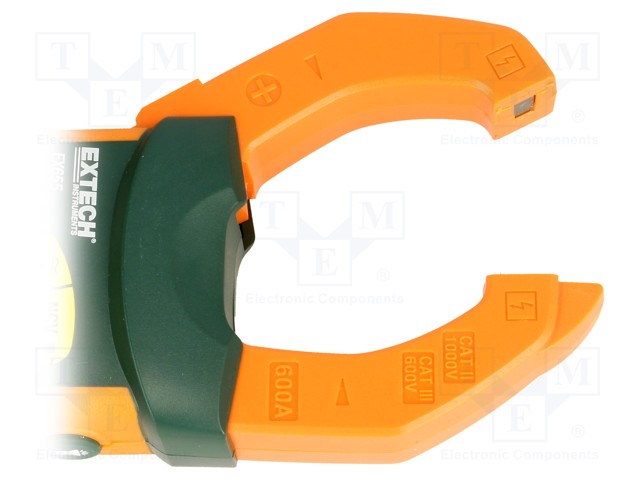

AC/DC digital clamp meter; Øcable: 30mm; I DC: 60/600A,600uA
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EX655
Tootja: EXTECH
Tootja tootekood: EX655
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6D412F7421DC&compId=INB-MIER-EN.pdf?ci_sign=9f97fafdfd0fa92910eac1938c04e02cb683e79f
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED681DC07F67FA191BF&compId=EX65x_DS-en.pdf?ci_sign=38e4110f783374a198e54b6f65287c3cad84cefe
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE7A2AC2E53D04EA749&compId=EX65x_UM-en.pdf?ci_sign=77a76cabfc1fa20a00a52ffedb820fc2455b98ab
Spetsifikatsioon tootele AC/DC digital clamp meter; Øcable: 30mm; I DC: 60/600A,600uA
| Dimensions | 288x77x41mm |
| Temperature measuring range | -40...1000°C |

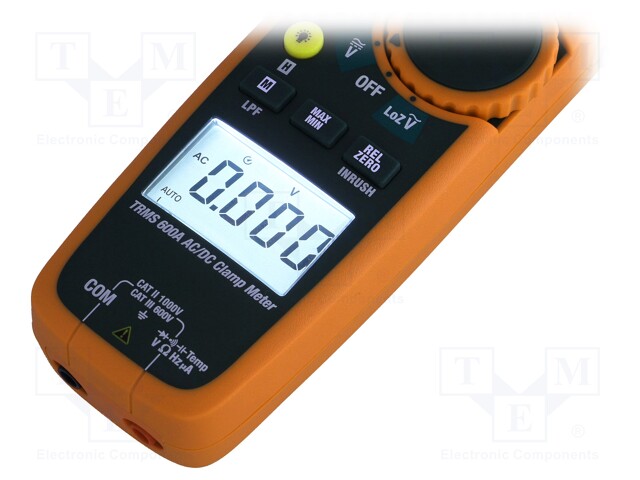

| Kind of display used | LCD |
| Conform to the norm | CAT II 1000V, CAT III 600V, EN 61010 |
| Measuring instrument features | auto and manual ranging, automatic power-off, HOLD function, low-pass filter for measuring drive parameters, non-contact voltage detector |
| Standard equipment | temperature probe, test leads |
| Pollution degree | 2 |
| Max. diameter of measured cable | 30mm |
| Measurement | AC current, AC voltage, capacitance, DC current, DC voltage, frequency, resistance, temperature, inrush current |
| Continuity test | acoustic indication |
| True effective value measurement | True RMS AC |
| Weight without batteries | 265g |
| Kind of meter | digital |
