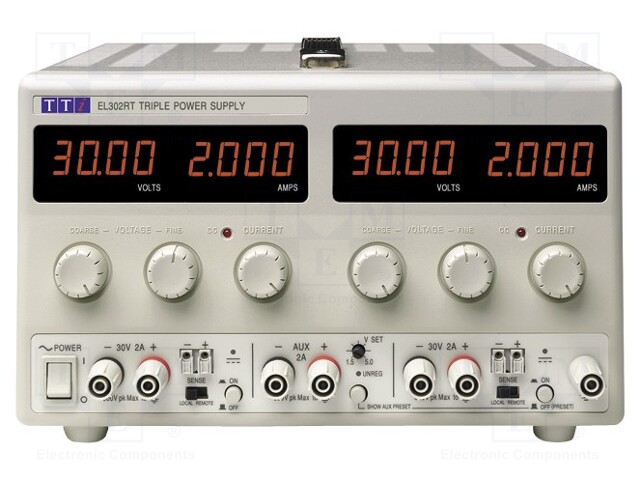

Power supply: laboratory; Channels: 3; 0÷30VDC; 0÷2A; 0÷30VDC; 0÷2A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EL302RT
Tootja: AIM-TTI
Tootja tootekood:
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB72103D4F21DC&compId=INB-ZAS-LAB-EN.pdf?ci_sign=db94e243c38f5821daa6230d2999c491a12c8e1a
- pVersion=0046&contRep=ZT&docId=E1C04B8E2EEBF0F1A6F5005056AB5A8F&compId=elr-exr-series.pdf?ci_sign=6b55d16d114987bd50544fafae6ac45bf3d0db24
Spetsifikatsioon tootele Power supply: laboratory; Channels: 3; 0÷30VDC; 0÷2A; 0÷30VDC; 0÷2A
| Output current | 0...2A |
| Supply voltage | 230V AC |
| Number of channels | 3 |
| Protection | against reverse polarity, anti-overvoltage |
| Type of power supply | laboratory |
| Dimensions | 260x160x195mm |
| Output voltage | 0...30V DC |
| Output voltage 3 | 1.5...5V DC |
| Output current 2 | 0...2A |
| Output voltage 2 | 0...30V DC |
| Output current 3 | 2A |
| Kind of power supply | linear, multi-channel |
| Output voltage resolution | 10mV |
| Output current resolution | 1mA |
