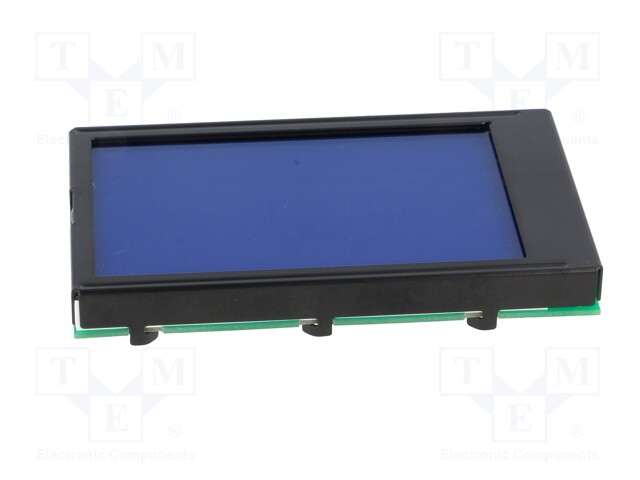

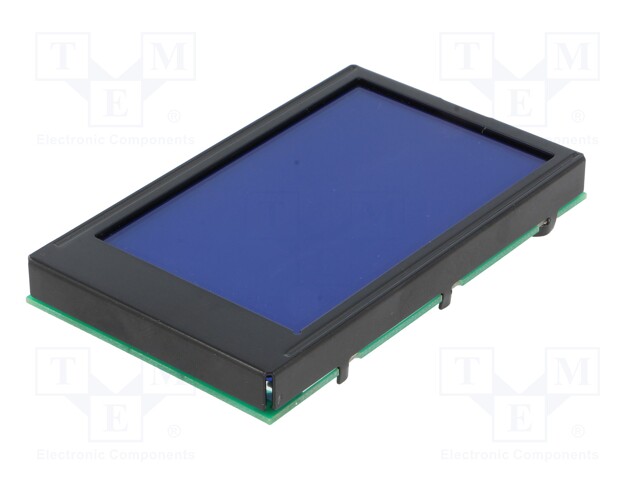

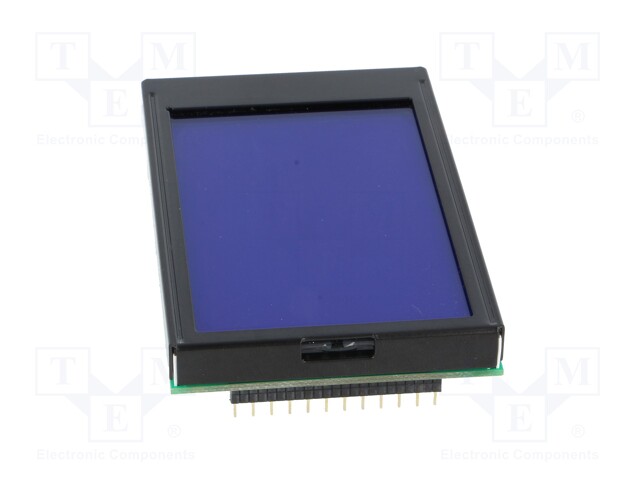

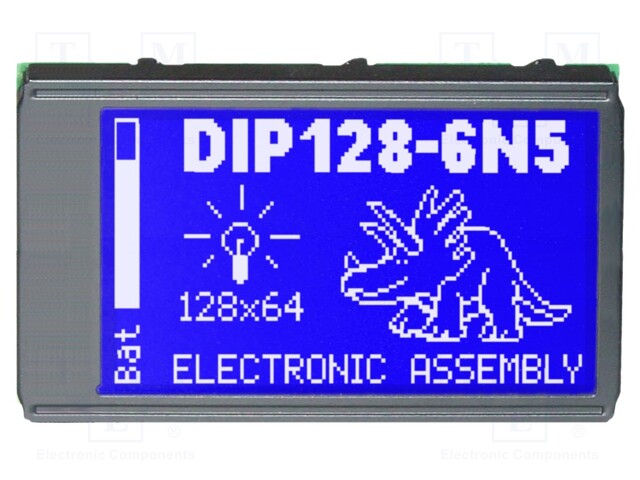

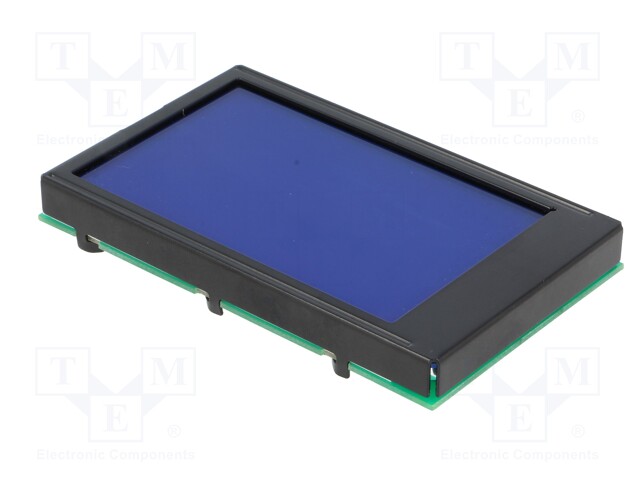

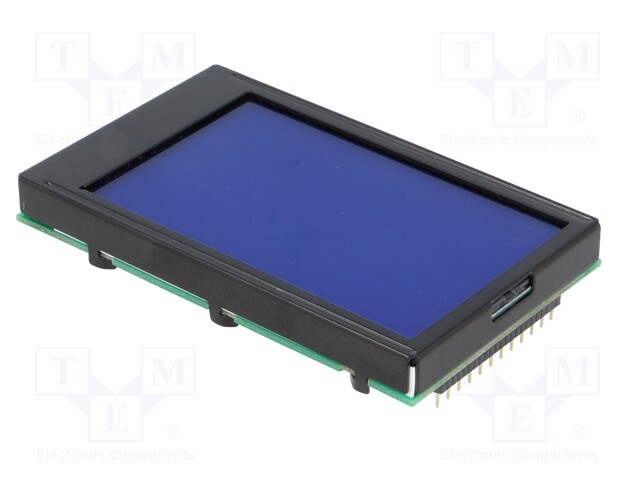

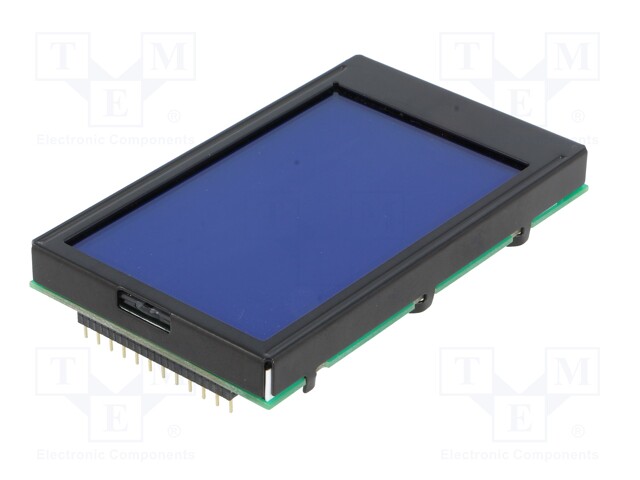

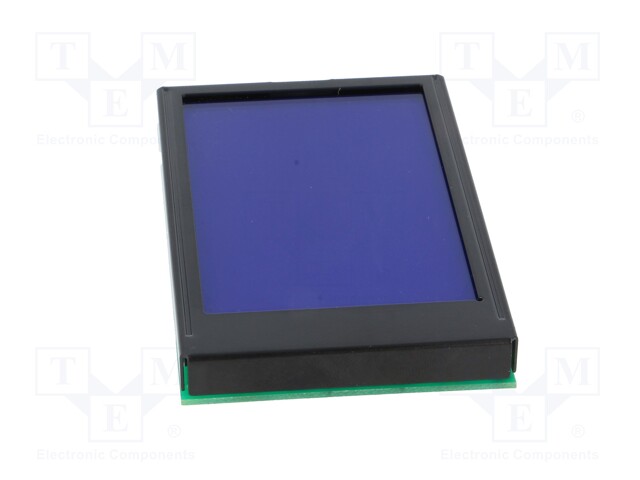

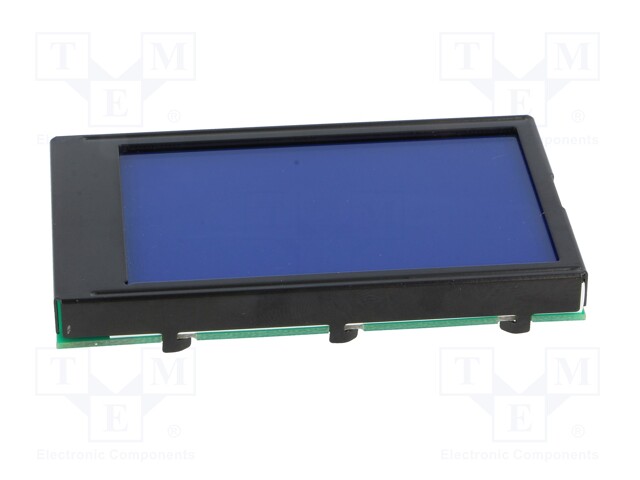

Display: LCD; graphical; 128x64; STN Positive; blue; 75x45.8mm; LED
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EA DIP128-6N5LW
Tootja: ELECTRONIC ASSEMBLY
Tootja tootekood: EA DIP128-6N5LW
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB798F96B71AA40D2&compId=EA%20DIP128-6N5LW.pdf?ci_sign=4ff1a4fd198dcab189218bc462e8215d0e43ce35
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDFA48D1C148081C0D6&compId=ESD%20Customer%20Service.txt?ci_sign=3268072bd7a58e9047ff598dac2a1cb8c9585688
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB8AAF6A40EB05A0C7&compId=display-visions.txt?ci_sign=bb0d6a37612ec70fbd412e3f6c33742a0c45459e
Spetsifikatsioon tootele Display: LCD; graphical; 128x64; STN Positive; blue; 75x45.8mm; LED
| Supply voltage | 5V DC |
| Contacts pitch | 2.54mm |
| Interface | 8bit BUS |
| Number of pins | 24 |
| Dimensions | 75x45.8mm |
| Type of pin configuration | 2x12 |
| Display resolution | 128x64 |
| Kind of display | graphical |
| Display technology | STN Positive |
| Backgr. colour | blue |
| Backlight colour | white |
| Illumination | LED |
| Window dimensions (H x W) | 61x38mm |
| Kind of controller | KS0107/108, PT6607/08 |
| Type of display | LCD |
