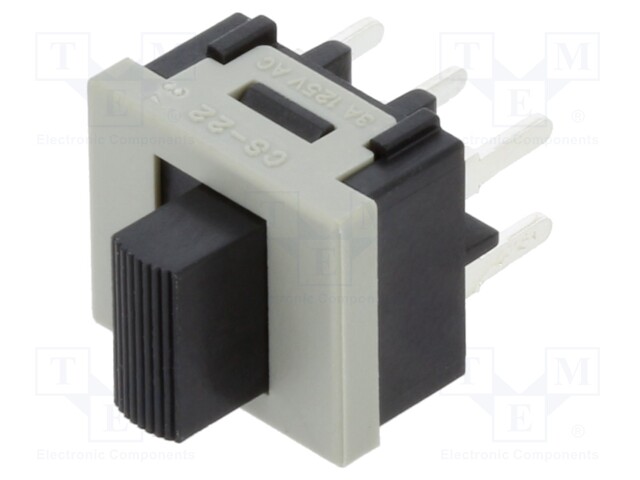

Switch: slide; Pos: 2; DPDT; 3A/125VAC; ON-ON; No.of term: 6

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: CS22BNW03
    Tootja: NKK SWITCHES
    Tootja tootekood: CS22BNW03
    • Mounting
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Series
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Body material
    • Body colour
    • Mechanical durability
    • Number of terminals
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Key stroke
    • Poles number
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number

    5,13 € 5,13 € (KM-TA) 5.13 EUR

    5,13 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: slide; Pos: 2; DPDT; 3A/125VAC; ON-ON; No.of term: 6

    Mounting PCB, THT
    Operating temperature -30...85°C
    Type of switch slide
    Contact plating silver plated
    Number of positions 2
    Leads for soldering, straight
    Series CS
    Contact material copper
    Max. contact resistance 10mΩ
    Terminal pitch 4.7mm
    Body material polyamide
    Body colour black
    Mechanical durability 50000cycles
    Number of terminals 6
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 20000cycles
    Key stroke 2.2mm
    Poles number 2
    Contacts configuration DPDT
    AC contacts rating @R 2A / 250V AC
    Switching method ON-ON
    Stable positions number 2
