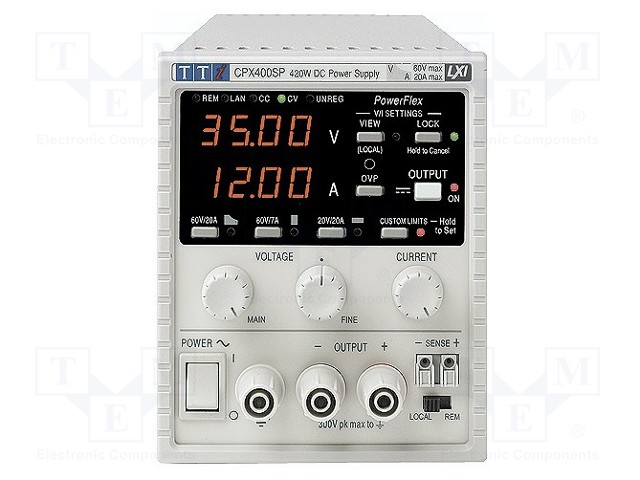

Power supply: laboratory; Channels: 1; 0÷60VDC; 0÷20A; Plug: EU,UK
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
CPX400SA-1
Tootja: AIM-TTI
Tootja tootekood: CPX400SA
Product downloads
Spetsifikatsioon tootele Power supply: laboratory; Channels: 1; 0÷60VDC; 0÷20A; Plug: EU,UK
| Output current | 0...20A |
| Supply voltage | 230V AC |
| Number of channels | 1 |
| Protection | against reverse polarity, anti-overvoltage |
| Type of power supply | laboratory |
| Series | CPX |
| Dimensions | 107x130x350mm |
| Output voltage | 0...60V DC |
| Kind of display used | 2x LED |
| Kind of power supply | single-channel, switched-mode |
| Measuring instrument features | coarse and fine voltage adjustment, constant voltage or constant current operation, isolated analog remote control, LOCK function (settings lock), simultaneous voltage and current readout, voltage and current stepless adjustment |
| Standard equipment | mains cable |
| Output voltage resolution | 10mV |
| Output current resolution | 10mA |
| Voltage load regulation | <0,02% |
