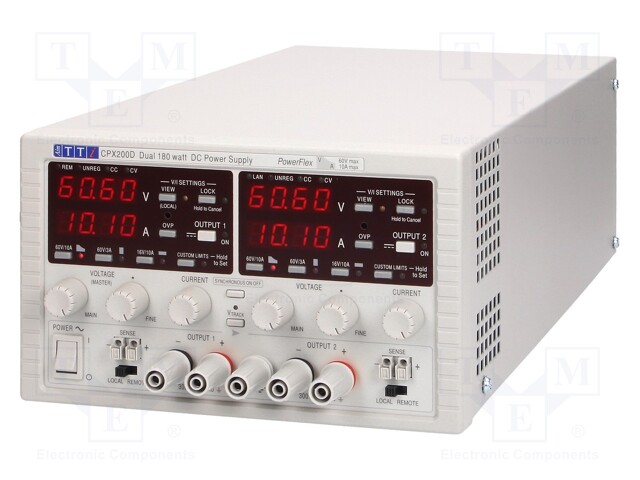

Power supply: laboratory; Channels: 2; 0÷60VDC; 0÷10A; 0÷60VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
CPX200D
Tootja: AIM-TTI
Tootja tootekood: CPX200D
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB72103D4F21DC&compId=INB-ZAS-LAB-EN.pdf?ci_sign=db94e243c38f5821daa6230d2999c491a12c8e1a
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED481CF906EF96961EC&compId=CPX200D-DTE.pdf?ci_sign=4fad7e5791223a193fcdc038acbb1131de2611a7
Spetsifikatsioon tootele Power supply: laboratory; Channels: 2; 0÷60VDC; 0÷10A; 0÷60VDC
| Output current | 0...10A |
| Supply voltage | 100...240V AC |
| Operating temperature | 5...40°C |
| Number of channels | 2 |
| Protection | anti-overvoltage, overheating |
| Type of power supply | laboratory |
| Series | CPX |
| Dimensions | 210x130x377mm |
| Output voltage | 0...60V DC |
| Output current 2 | 0...10A |
| Output voltage 2 | 0...60V DC |
| Kind of power supply | multi-channel, switched-mode |
| Measuring instrument features | constant voltage or constant current operation, LOCK function (settings lock), simultaneous voltage and current readout, voltage and current stepless adjustment |
| Output voltage resolution | 10mV |
| Output current resolution | 10mA |
| Voltage load regulation | <0,01% |
