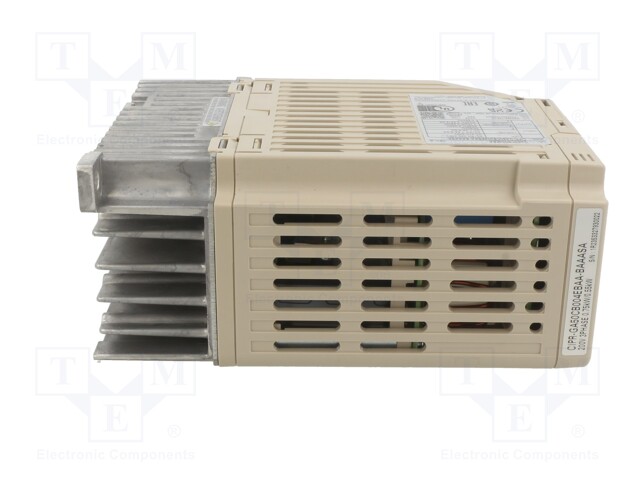

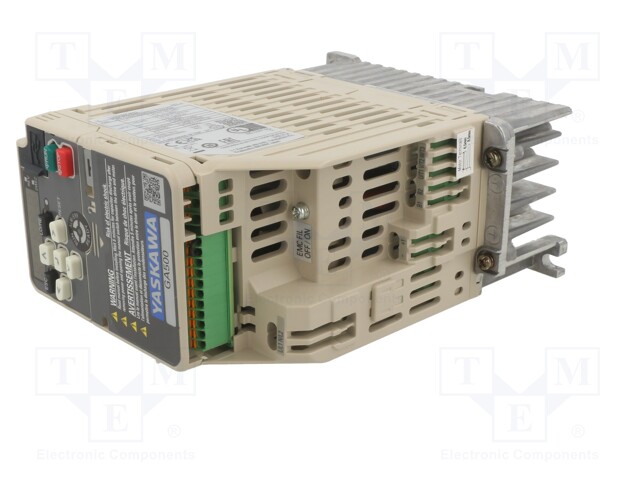

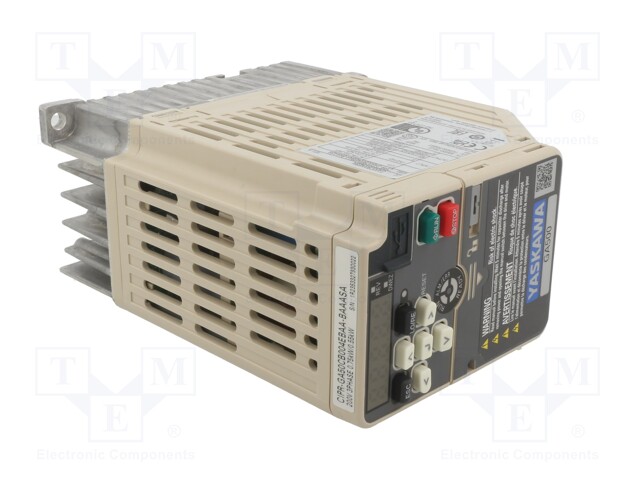

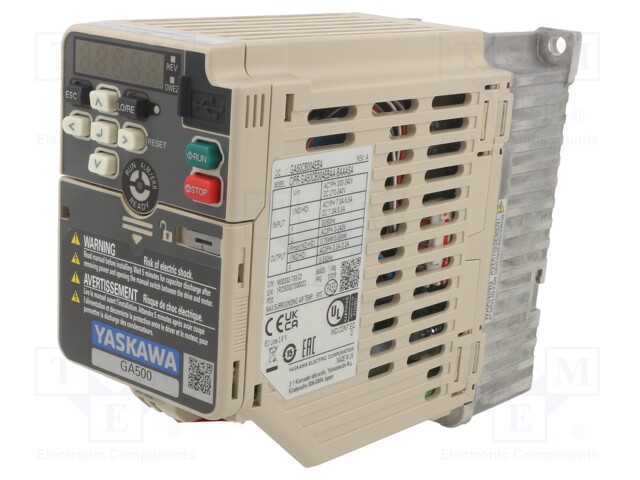

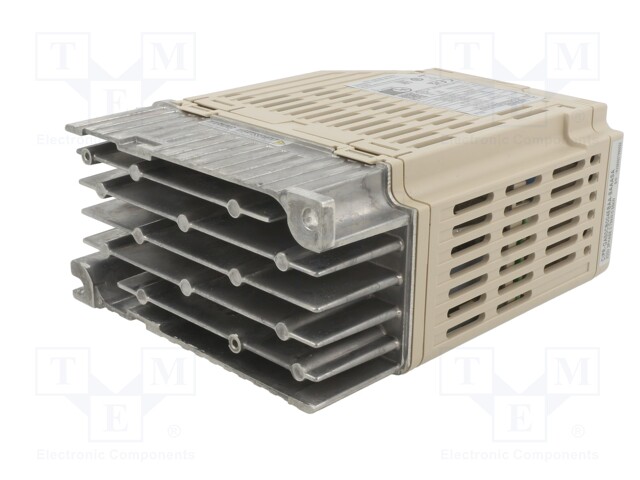

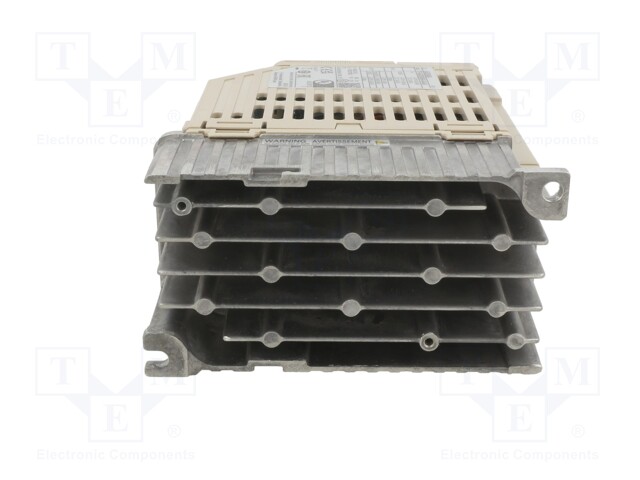

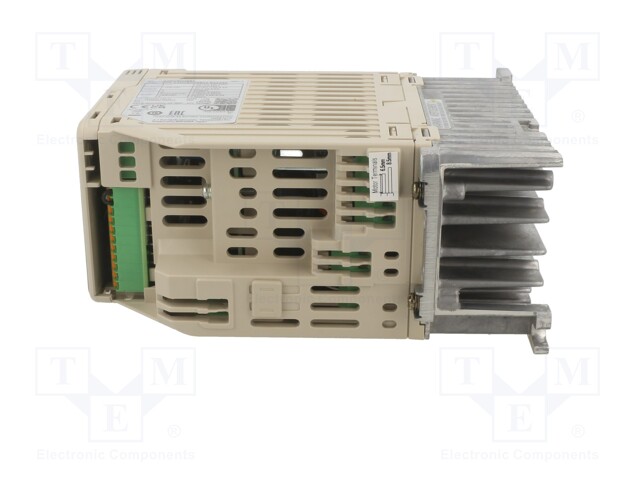

Vector inverter; Max motor power: 0.55/0.75kW; Usup: 200÷240VAC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
CIPR-GA50CB004EBAA-BAAASA
Tootja: YASKAWA
Tootja tootekood: CIPR-GA50CB004EBAA-BAAASA
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB7E34D1C8167C0C7&compId=GA500-EN.pdf?ci_sign=df1c88cd614d7ad713993cc73916435f88df6d28
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB7E35985DE8FC0C7&compId=GA500-INS-MULTI.pdf?ci_sign=89b720fcdede0a1618d82c1dd3a728834681e22c
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB7E35E085861A0C7&compId=GA500-EN-INS-FULL.pdf?ci_sign=ad70b26f210599da15d051e9edad8001c602e67d
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB88F9FB84D4C40C7&compId=GA500-EN.txt?ci_sign=b932a6a015baa7d1140d1abf71debc533663d1ae
Spetsifikatsioon tootele Vector inverter; Max motor power: 0.55/0.75kW; Usup: 200÷240VAC
| Mounting | for wall mounting |
| Supply voltage | 200...240V AC |
| Operating temperature | -10...50°C |
| IP rating | IP20 |
| Protection | anti-overload, anti-overvoltage, overheating, voltage drop |
| Type of module | vector inverter |
| Current rating | 3...3.5A |
| Output frequency | 0...590Hz |
| Electrical connection | screw terminals, spring-loaded terminals |
| Driver features | integrated brake transistor, integrated EMC filter |
| Max motor power | 0.55/0.75kW |
| Inverter output voltage | 3 x 230V AC |
| The programming method | keypad, PC |
