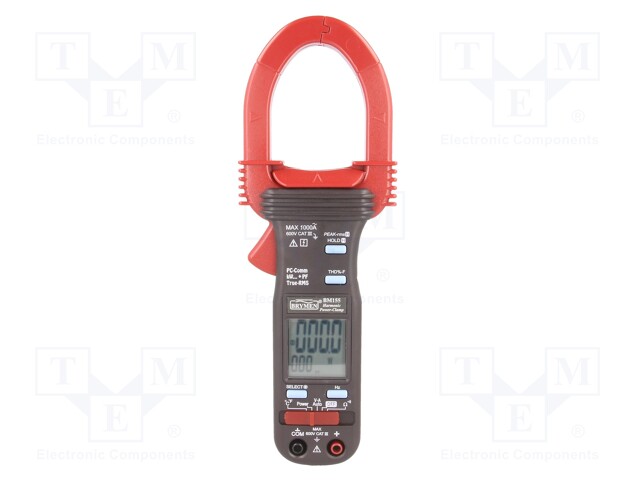

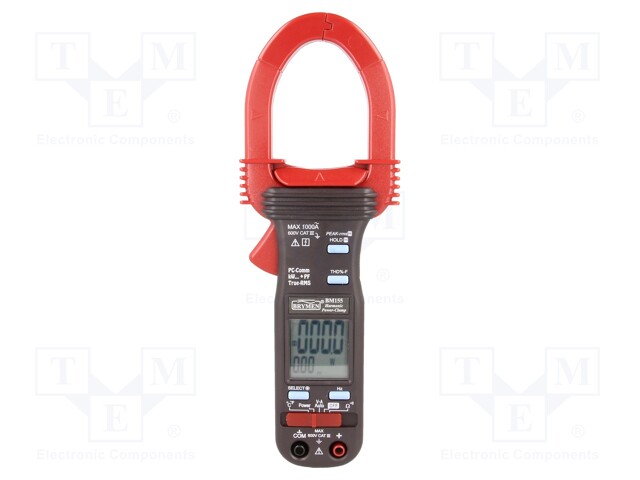

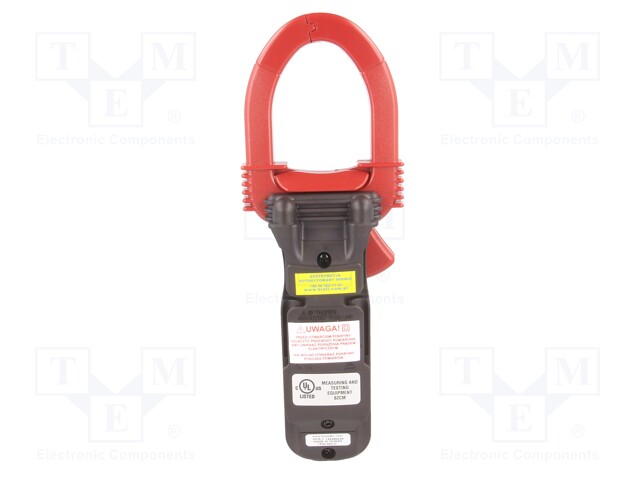

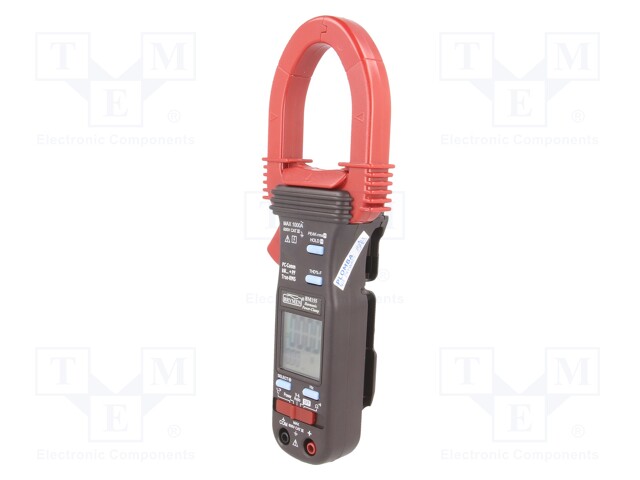

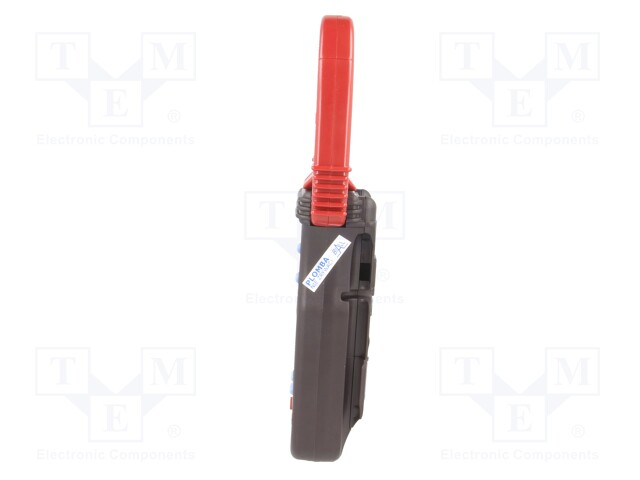

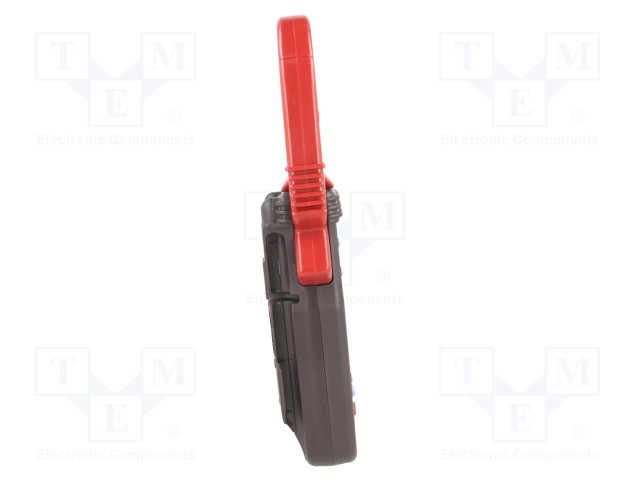

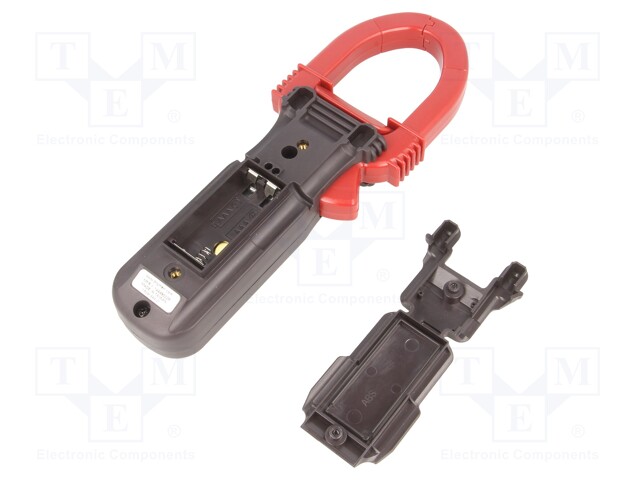

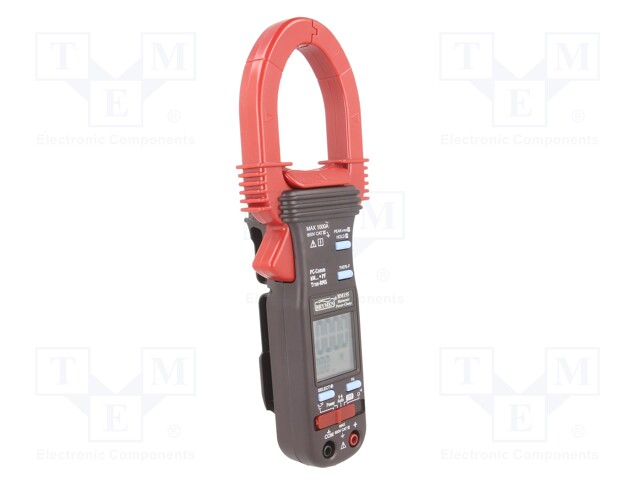

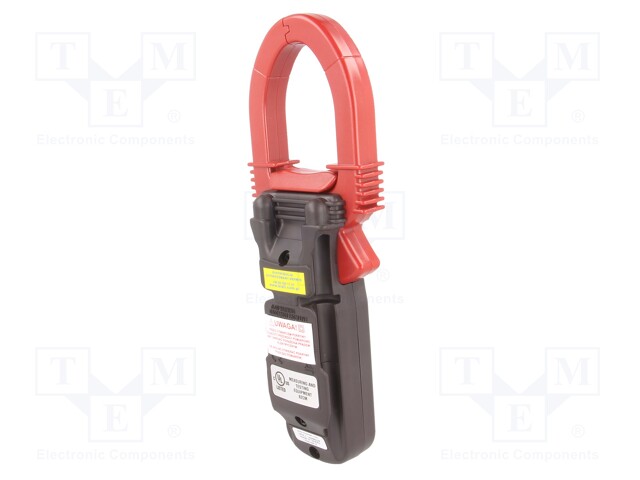

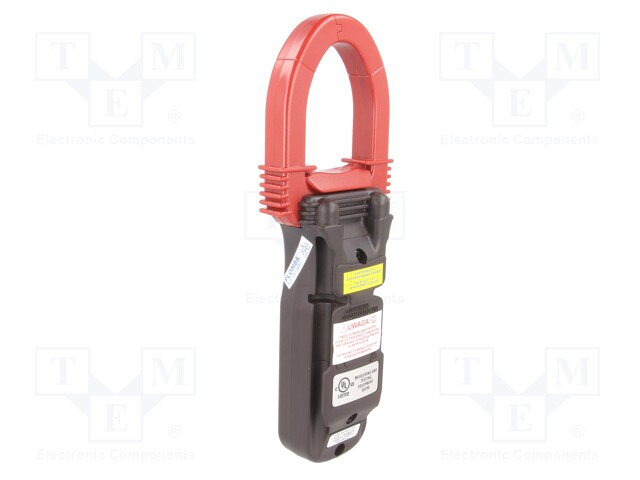

Power clamp meter; Øcable: 45mm; I AC: 0,01÷40/400/1000A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
BM155
Tootja: BRYMEN
Tootja tootekood: BM155
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6D412F7421DC&compId=INB-MIER-EN.pdf?ci_sign=9f97fafdfd0fa92910eac1938c04e02cb683e79f
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE4AF80771E46A72469&compId=warunki%20gwarancji_12_EN.pdf?ci_sign=3f7ac99182b9231616a273f0858a9d9898996e53
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90A24340F1B5C0C7&compId=BM155.pdf?ci_sign=f5747a25296168b61079bb304c32a3ab59c917b9
Spetsifikatsioon tootele Power clamp meter; Øcable: 45mm; I AC: 0,01÷40/400/1000A
| Dimensions | 224x78x40mm |
| Temperature measuring range | -50...300°C |
| Kind of display used | LCD |
| Conform to the norm | CAT III 600V, EN 61010 |
| Measuring instrument features | automatic power-off, automatically selects AAC, VAC, VDC measurement on the basis of measured signal, autoranging, HOLD function, PEAK HOLD function for AC measurements, THD%-F immediately evaluates harmonic content in measured voltage and current signals |

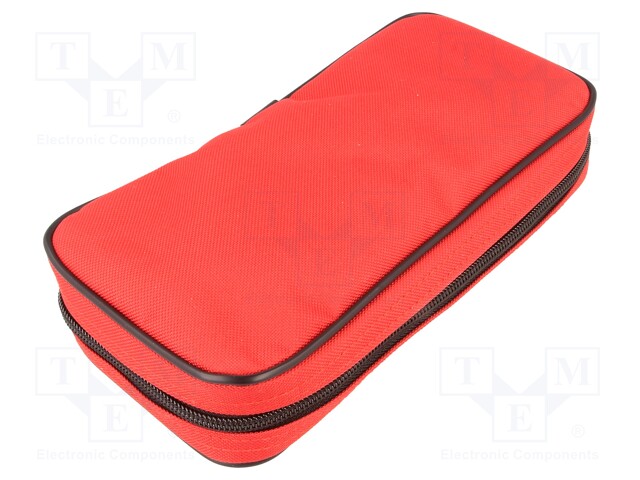

| Standard equipment | drop-like K-type temperature probe, test leads, case |
| Pollution degree | 2 |
| Max. diameter of measured cable | 45mm |
| Type of meter | power meter |
| Measurement | AC current, AC voltage, active power, apparent power, DC voltage, frequency, power factor, reactive power, resistance, temperature |
| Continuity test | acoustic indication |
| Sampling | 1x/s (kW, kVA, kVAR), 4x/s |
| Weight with battery | 224g |
| True effective value measurement | True RMS AC |
| Harmonic content measuring accuracy | ±(1% + 6 digits) (for fundamental harmonic), ±(2% + 6 digits) (for 4...51 harmonic), ±(5% + 6 digits) (for 2 and 3 harmonic) |
| Harmonic content measurement | 0...99,99% |
