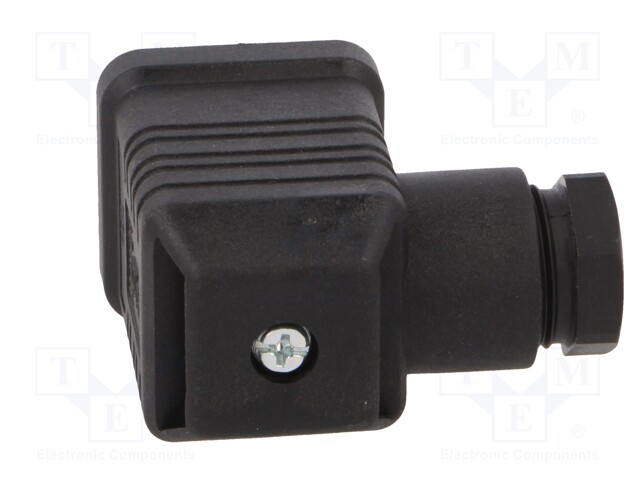

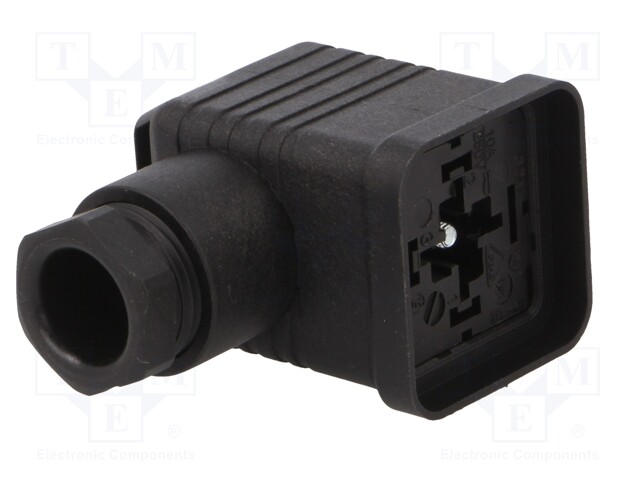

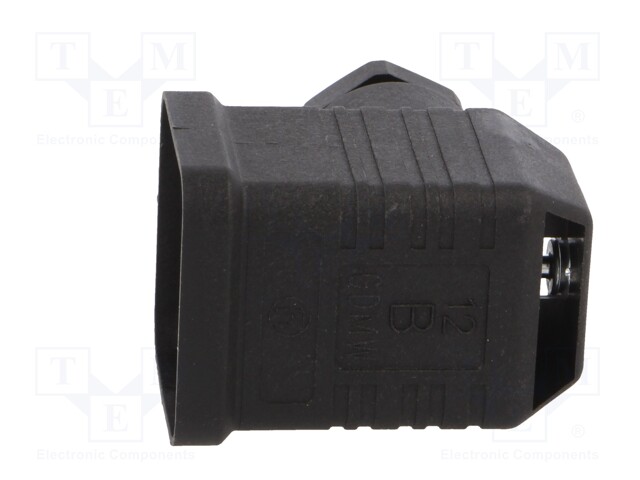

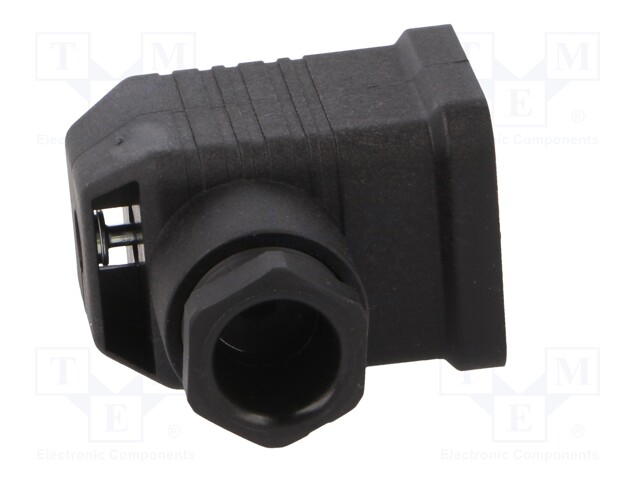

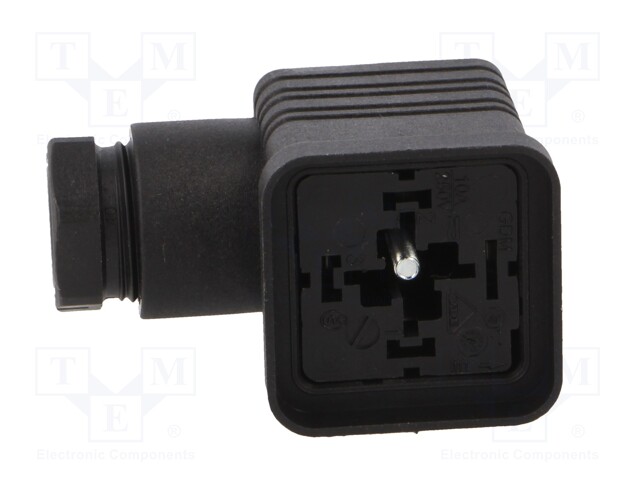

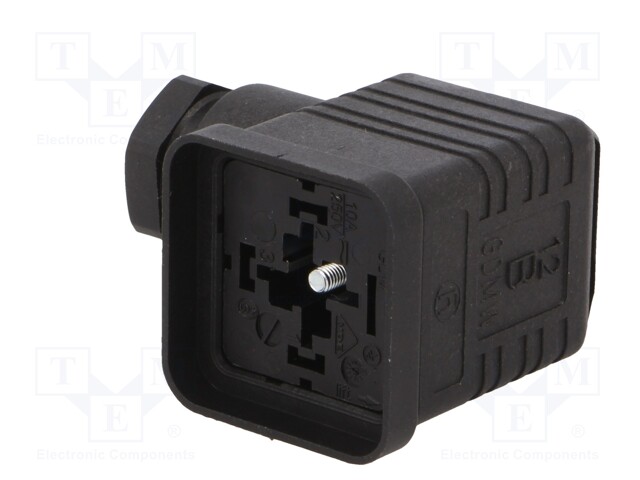

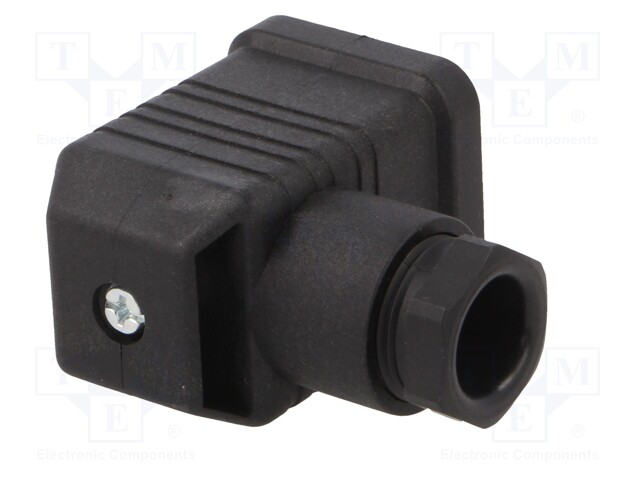

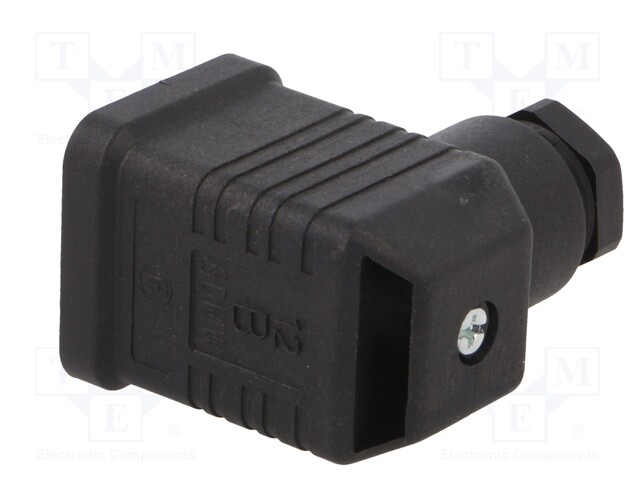

Connector: valve connector; plug; form A; 18mm; female; PIN: 4; 400V

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 932547200 GDMW 3011 DF SCHWARZ
    Tootja: HIRSCHMANN
    Tootja tootekood: 932547200 GDMW 3011 DF SCHWARZ
    • Case
    • Operating temperature
    • IP rating
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Type of connector
    • Number of pins
    • Current rating
    • Type of pin configuration
    • Rated voltage
    • Cable external diameter
    • Locking system
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Gland thread

    3,56 € 3,56 € (KM-TA) 3.56 EUR

    3,56 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Connector: valve connector; plug; form A; 18mm; female; PIN: 4; 400V

    Case form A
    Operating temperature -40...125°C
    IP rating IP65
    Contacts pitch 18mm
    Electrical mounting screw terminal
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour black
    Type of connector valve connector
    Number of pins 4
    Current rating 16A
    Type of pin configuration 3+PE
    Rated voltage 400V
    Cable external diameter 4.5...11mm
    Locking system screws
    Conform to the norm DIN 43650, ISO 4400
    Spatial orientation angled 90°
    Gland thread PG11
