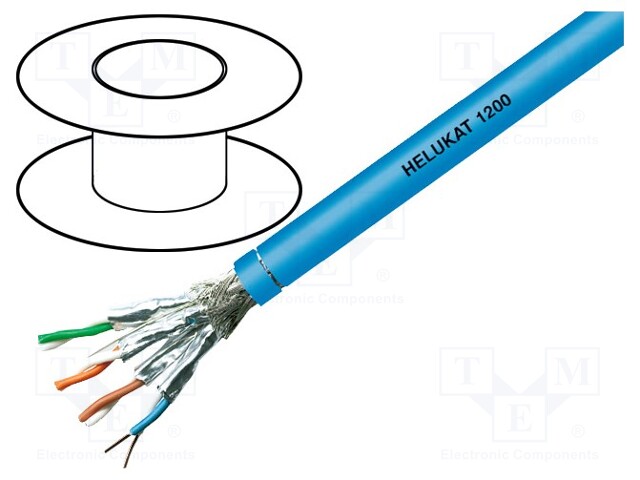

Wire; HELUKAT® 1200,S/FTP; 7; solid; Cu; 4x2x22AWG; FRNC; blue; 100m
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
81699
Tootja: HELUKABEL
Tootja tootekood: 81699
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE96F178AFA5BD40D5&compId=Ethernet%20Cable.txt?ci_sign=339abd646a4ab99851aa83b6a70ec6e35878c062
- pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDB4BEB9086843E0D4&compId=kable.txt?ci_sign=7b3d2dd3b18122de9bd4adb1264f5299c9ecabd9
- pVersion=0046&contRep=ZT&docId=E1CC08D0F531B0F1A704005056AB0C4F&compId=R_079_LAN_Cable.pdf?ci_sign=7f7c5d2927d8d17e4f4030bba9715e9d9e7fc03a
Spetsifikatsioon tootele Wire; HELUKAT® 1200,S/FTP; 7; solid; Cu; 4x2x22AWG; FRNC; blue; 100m
| Operating temperature | -20...60°C |
| Core structure | solid |
| Kind of core | Cu |
| Cable features | low smoke density, twisted pair conductors |
| Number of cores | 8 |
| Ethernet category | Cat 7 |
| Kind of wire | HELUKAT® 1200, S/FTP |
| Cable external diameter | 7.7mm |
| Insulation colour | blue |
| Cable application | LAN |
| Type of wire | data transmission |
| No. of pairs | 4 |
| Shield structure | braid made of copper wires, pairs shielded with Al-PET foil |
| CPR standard | D<sub>ca</sub> |
