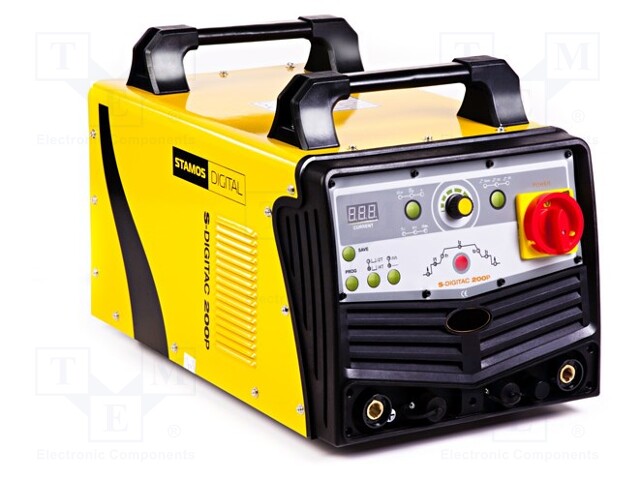

Inverter welder; 3.2kVA; 230VAC; 14.6A; 50/60Hz; MMA,TIG; IP23

• Supply voltage 230V AC
• IP rating IP23
• Kit contents 1,6mm electrode
• Kit contents ground clamp with 3,6m cable
• Kit contents MMA welding holder with 4m cable
• Kit contents spare TIG holder accessories
• Kit contents TIG welding holder with 3.8m cable
• Power consumption 3.2kVA
• Kind of display used LED
• Efficiency 85%
• Insulation class F
• Type of device inverter welder
• Input current 14.6A
• Supply voltage frequency 50/60Hz
• Power factor ≥0.93
• Open circuit voltage 62V
• Electrode diameter (MMA) 1...4mm
• Electrode diameter (TIG) 1...3.2mm
• Welding method MMA
• Welding method TIG
• Welding current TIG-AC 10...200A
• Pulse current in PULSE mode 10...200A
• Gas flow time after welding 0...9.9s
• Pulse frequency DC mode 0.3...20Hz
• Welding current at 100% duty cycle 155A
• Welding current TIG-DC 10...200A
• Welding current MMA 10...180A
• Welding equipment features 2 T / 4 T change-over switch
• Welding equipment features ANTI STICK - prevents electrode from sticking to welding material
• Welding equipment features ARC FORCE - electrical arc stablization
• Welding equipment features HOT START - easy to initiate an electrical arc
• Welding equipment features integrated solenoid gas valve
• Welding equipment features MOSFET technology
• Welding equipment features overload / failure indicator
• Welding equipment features possibility to save welding programs in welder memory
• Welding equipment features possibility to set balance in AC current mode
• Welding equipment features possibility to set current upslope and downslope time
• Welding equipment features possibility to set gas flow time before welding
• Welding equipment features possibility to set the frequency of the output current in AC mode
• Welding equipment features possibility to set the pulse frequency in pulse mode welding
• Welding equipment features PULS - possibility of pulse current welding
• Welding equipment features TIG AC - welding of aluminum and non-ferrous metals (brass, bronze)
• Welding equipment features TIG HF - non-contact electrical arc ignition using high frequency
• Welding current at 60% duty cycle 200A
• Current increase time 0...9.9s
• Nominal duty cycle 60%
• Method of cooling the handle air
• Gas flow time before welding 0...2s
• Current decrease time 0...9.9s
• Pulse frequency AC mode 0.3...20Hz
• Dimensions (a x b x c) 600x375x330mm
