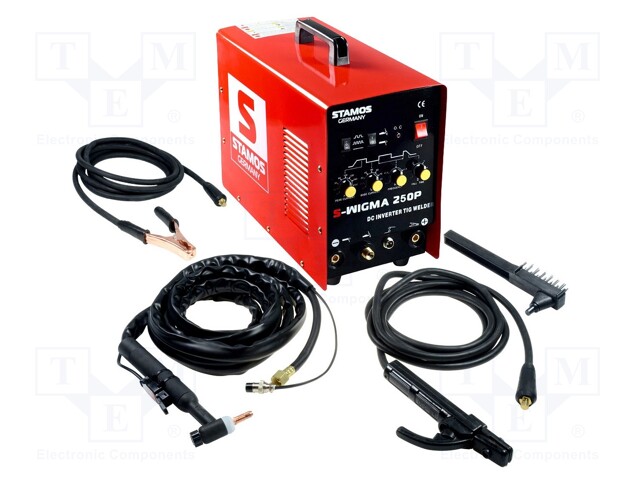

Inverter welder; 4.1kVA; 230VAC; 18.8A; 50/60Hz; MMA,TIG; IP21S

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2011
    Tootja: STAMOS
    Tootja tootekood: 2011
    • Supply voltage
    • IP rating
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Power consumption
    • Efficiency
    • Insulation class
    • Type of device
    • Input current
    • Supply voltage frequency
    • Power factor
    • Open circuit voltage
    • Electrode diameter (MMA)
    • Electrode diameter (TIG)
    • Welding method
    • Welding method
    • Pulse current in PULSE mode
    • Gas flow time after welding
    • Pulse frequency DC mode
    • Welding current at 100% duty cycle
    • Welding current TIG-DC
    • Welding current MMA
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding equipment features
    • Welding current at 60% duty cycle
    • Nominal duty cycle
    • Method of cooling the handle
    • Current decrease time
    • Dimensions (a x b x c)

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Inverter welder; 4.1kVA; 230VAC; 18.8A; 50/60Hz; MMA,TIG; IP21S

    Supply voltage 230V AC
    IP rating IP21S
    Kit contents collets, ground clamp with 3,6m cable, hammer with a wire brush, MMA welding holder with 3.6m cable, porcelain nozzles, TIG welding holder with 4m cable, welding mask
    Power consumption 4.1kVA
    Efficiency 85%
    Insulation class F
    Type of device inverter welder
    Input current 18.8A
    Supply voltage frequency 50/60Hz
    Power factor ≥0.93
    Open circuit voltage 56V
    Electrode diameter (MMA) 1...4mm
    Electrode diameter (TIG) 1...3.2mm
    Welding method MMA, TIG
    Pulse current in PULSE mode 5...250A
    Gas flow time after welding 3s
    Pulse frequency DC mode 0.5...25Hz
    Welding current at 100% duty cycle 193A
    Welding current TIG-DC 5...250A
    Welding current MMA 5...250A
    Welding equipment features ANTI STICK - prevents electrode from sticking to welding material, ARC FORCE - electrical arc stablization, HOT START - easy to initiate an electrical arc, integrated solenoid gas valve, MOSFET technology, overload / failure indicator, possibility to set current downslope time, PULS - possibility of pulse current welding, TIG HF - non-contact electrical arc ignition using high frequency
    Welding current at 60% duty cycle 250A
    Nominal duty cycle 60%
    Method of cooling the handle air
    Current decrease time 0...5s
    Dimensions (a x b x c) 430x290x200mm
