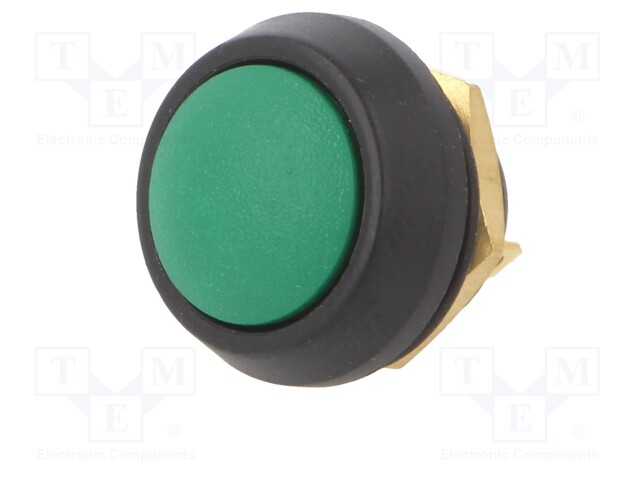

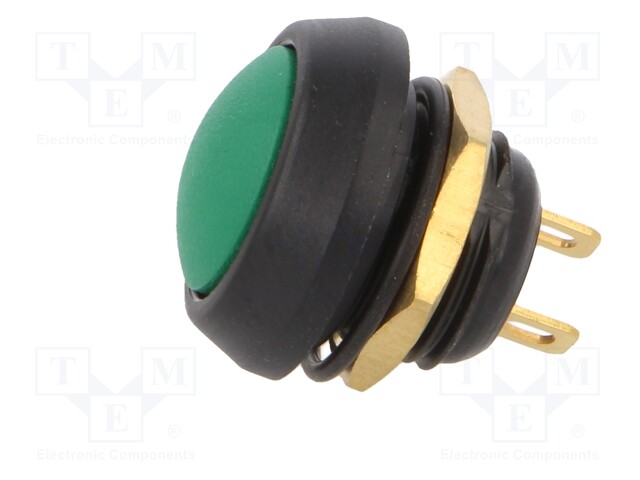

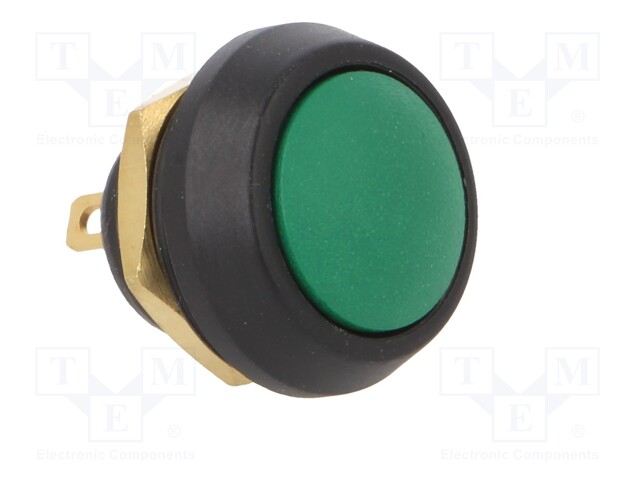

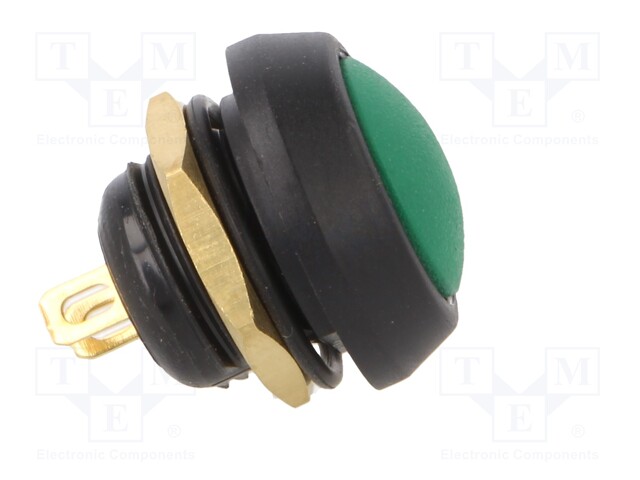

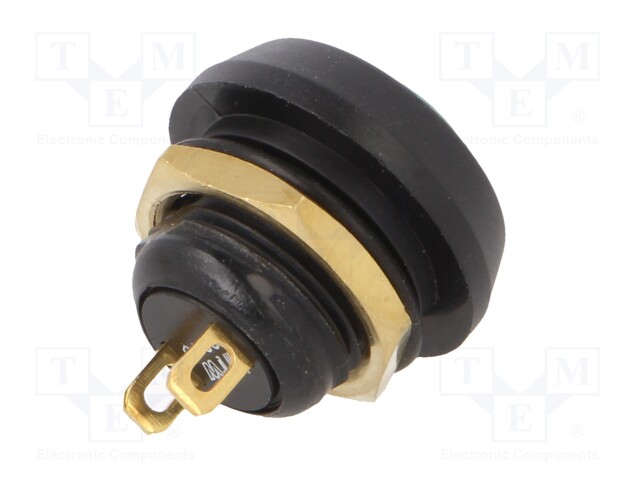

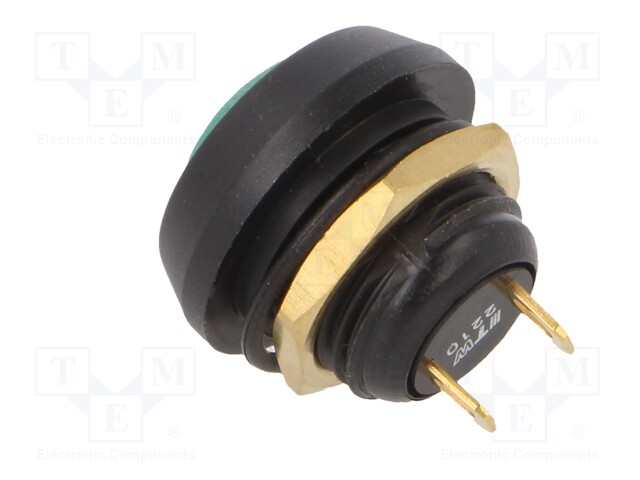

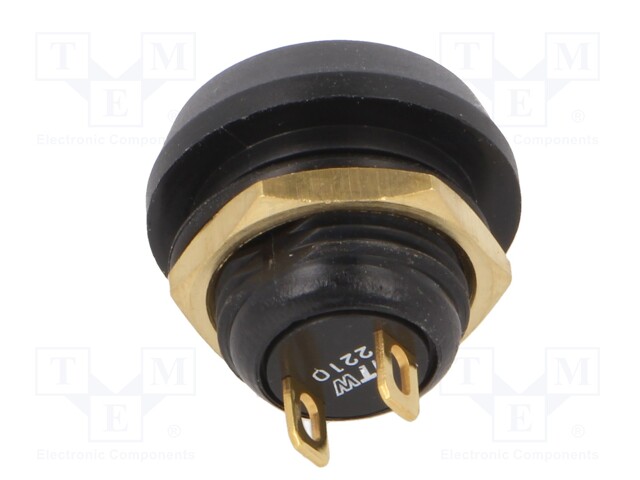

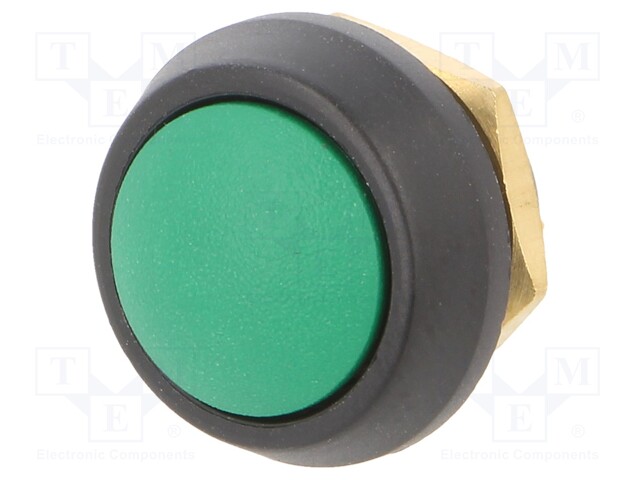

Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.1A/50VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: W49-113
    Manufacturer: ITW SWITCHES
    Manufacturer code: W49-113
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Mounting hole diameter
    • Mechanical durability
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape

    11.96 € 11.96 € (wo VAT) 11.96 EUR

    11.96 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 0.125A/125VAC; 0.1A/50VDC

    Mounting panel
    Operating temperature -40...105°C
    IP rating IP67 (from the front)
    Type of switch push-button
    Contact plating gold-plated
    Number of positions 2
    Leads for soldering
    Max. contact resistance: 50mΩ
    Mounting hole diameter Ø13.6mm
    Mechanical durability 1000000cycles
    Electrical life 500000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 0.1A / 50V DC
    AC contacts rating @R 0.125A / 125V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3N
    Actuator colour green
    Button shape round
