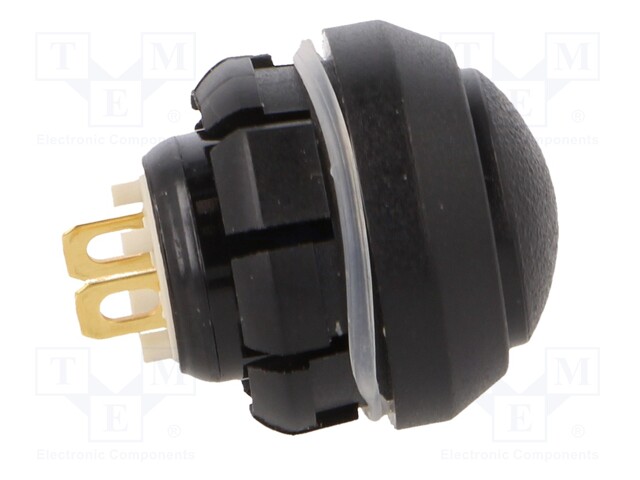

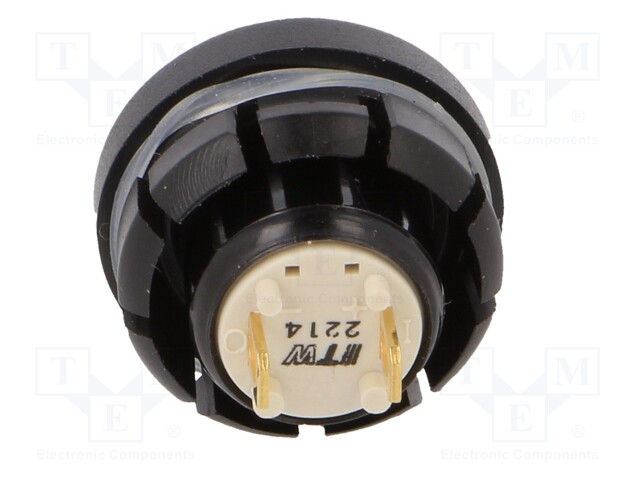

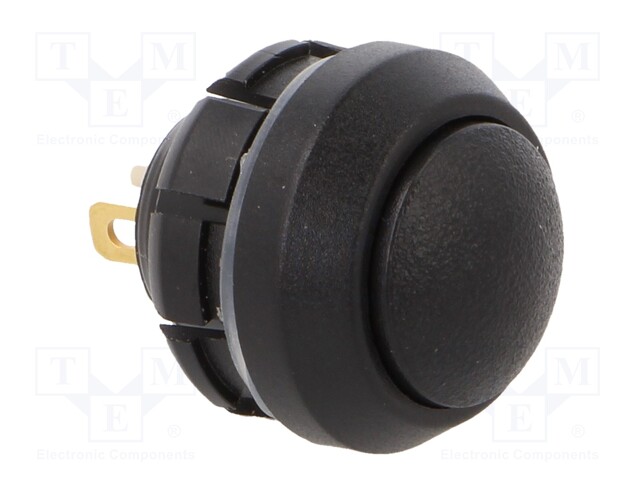

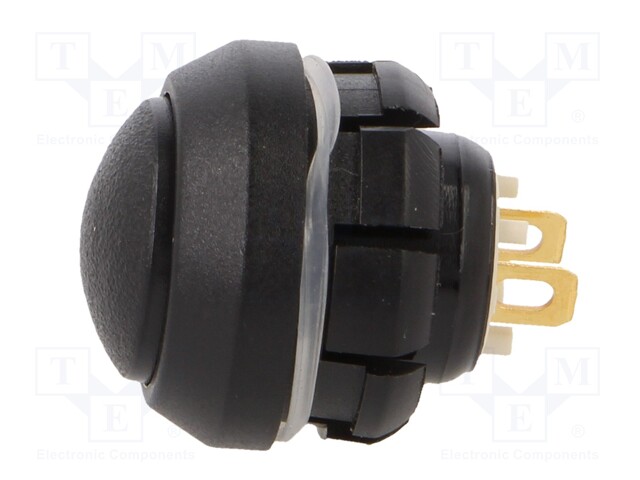

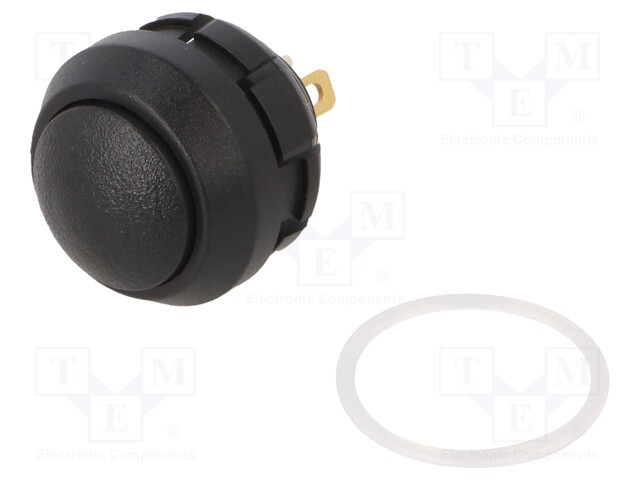

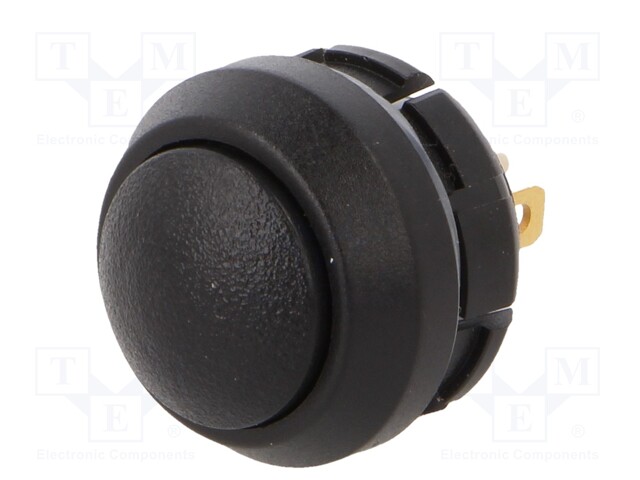

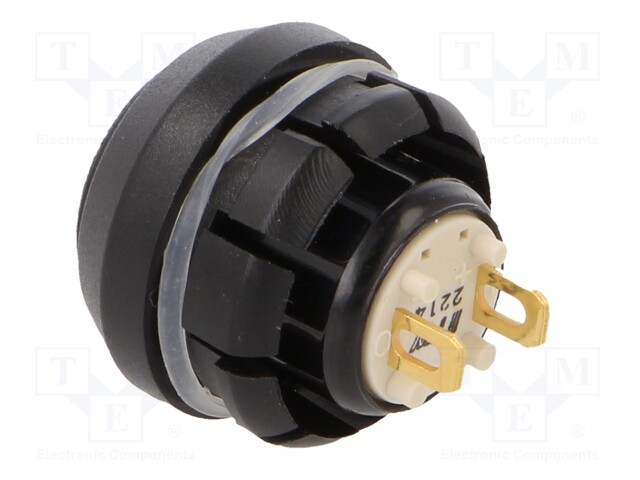

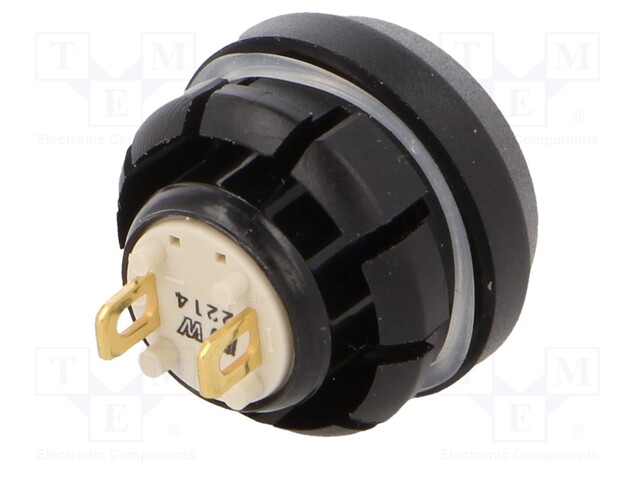

Switch: push-button; Pos: 2; SPST-NO; 0.01A/12VDC; OFF-ON; panel

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: W48-2-RB-N-BK-F
    Manufacturer: ITW SWITCHES
    Manufacturer code: W48-2-RB-N-BK-F
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body material
    • Body colour
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; SPST-NO; 0.01A/12VDC; OFF-ON; panel

    Mounting panel
    Operating temperature -25...65°C
    IP rating IP67 (from the front)
    Type of switch push-button
    Contact plating gold-plated
    Number of positions 2
    Leads for soldering
    Max. contact resistance: 50mΩ
    Body material plastic
    Body colour black
    Electrical life 50000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 0.01A / 12V DC
    Switching method OFF-ON
    Stable positions number 2
    Operating Force 3N
    Actuator colour black
    Button shape round
