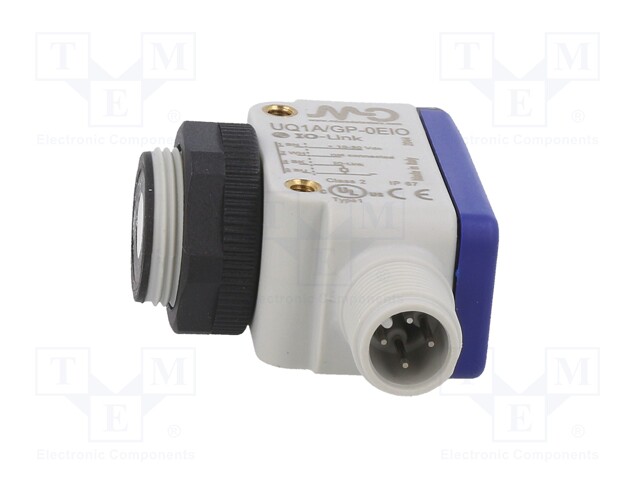

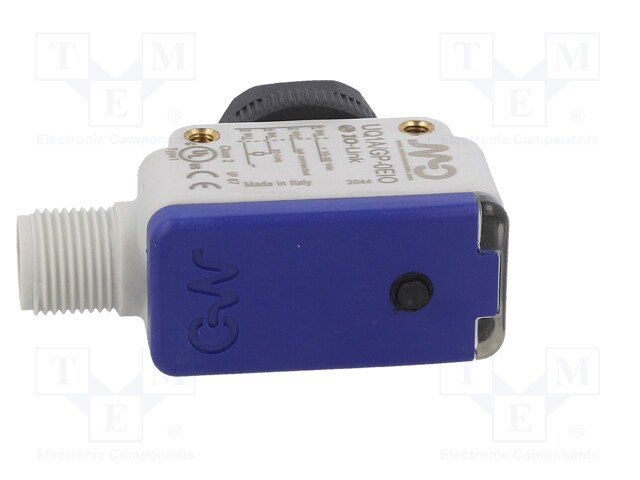

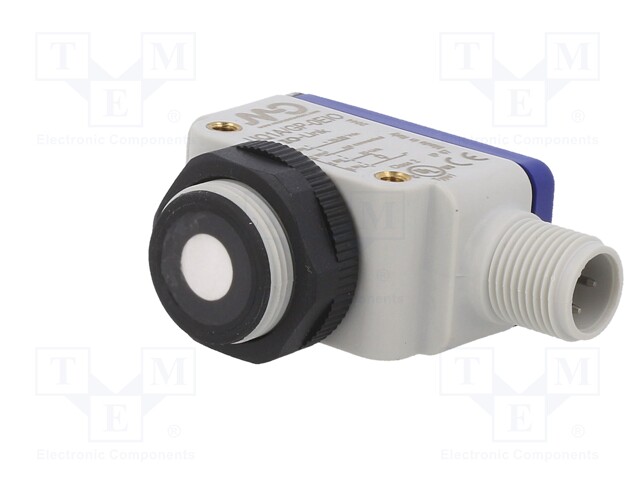

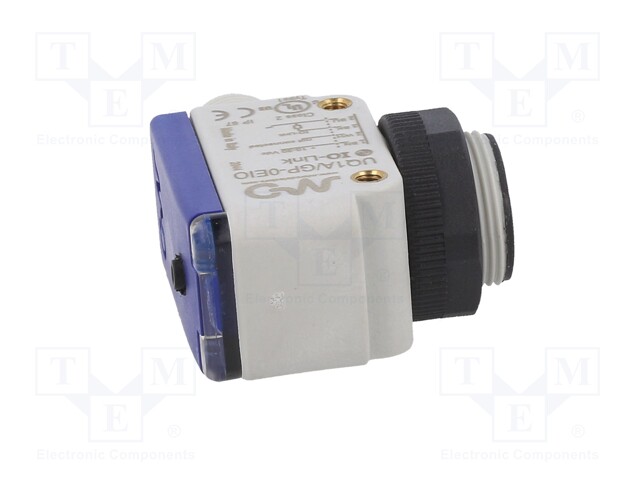

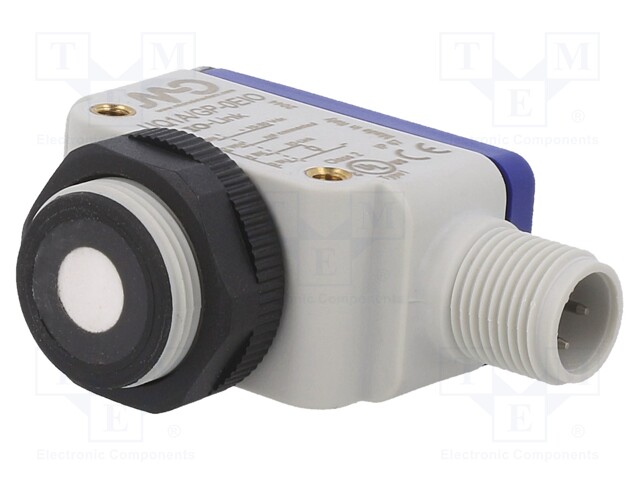

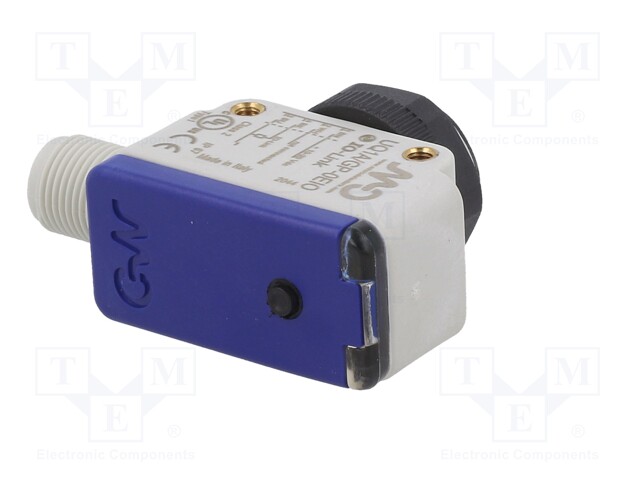

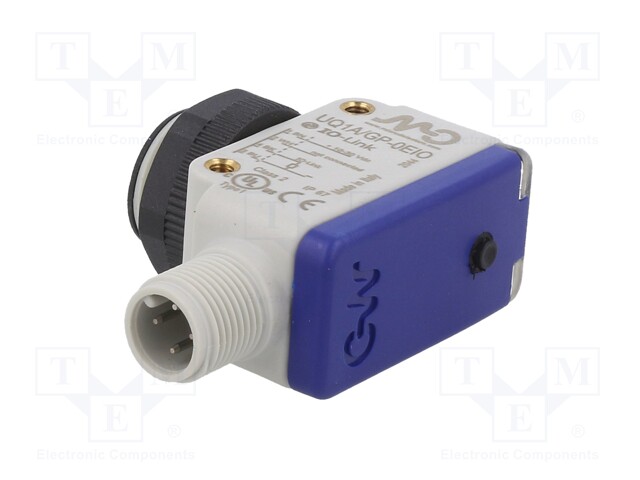

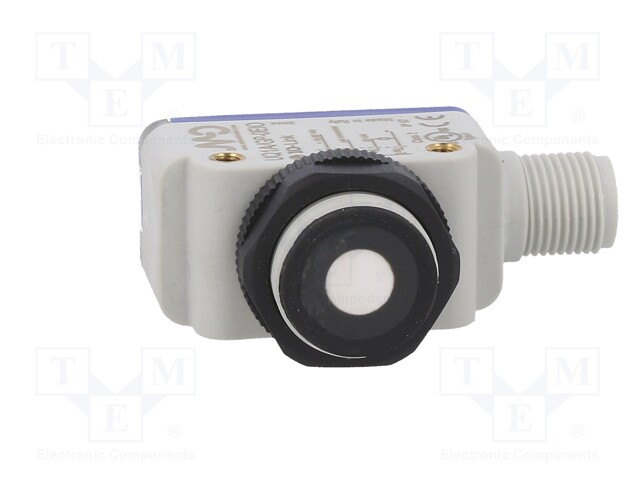

Sensor: ultrasonic; angular; Range: 40÷300mm; IO-Link; -20÷70°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: UQ1A/GP-0EIO
    Manufacturer: Micro Detectors
    Manufacturer code: UQ1A/GP-0EIO
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Kind of sensor
    • Type of sensor
    • Connection
    • Switching frequency max

    155.30 € 155.30 € (wo VAT) 155.3 EUR

    155.30 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: ultrasonic; angular; Range: 40÷300mm; IO-Link; -20÷70°C

    Supply voltage 10...30V DC
    Max. operating current 100mA
    Operating temperature -20...70°C
    IP rating IP67
    Number of pins 4
    Body material PBT
    Range 40...300mm
    Kind of sensor angular
    Type of sensor ultrasonic
    Connection connector M12
    Switching frequency max 8Hz
