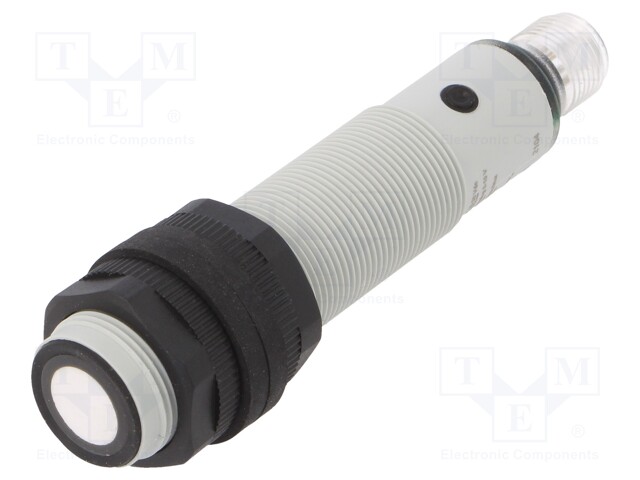

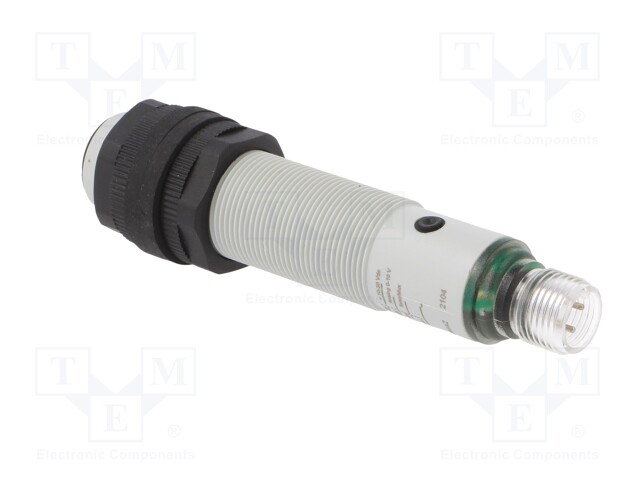

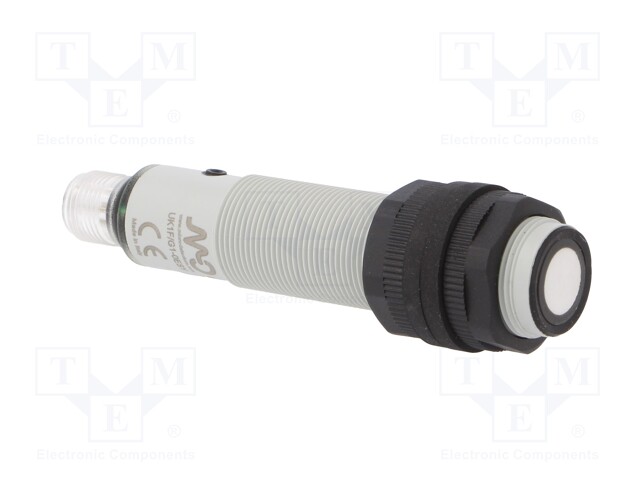

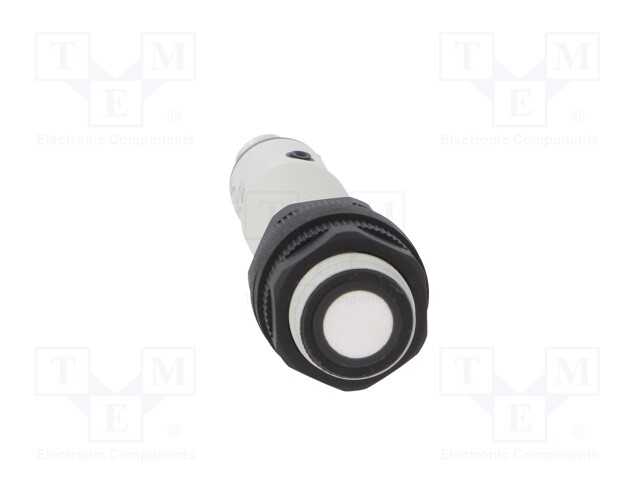

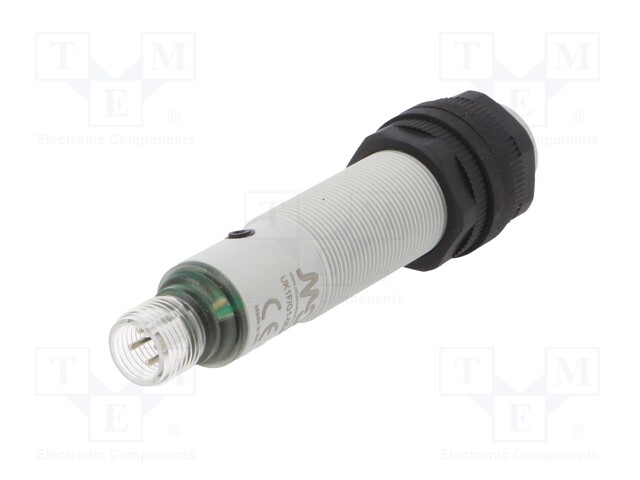

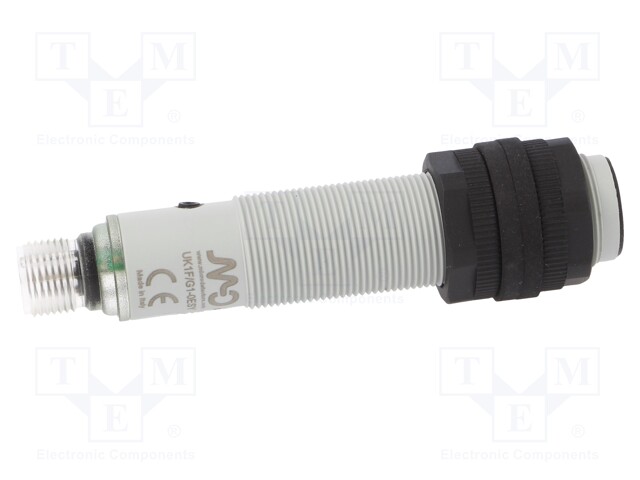

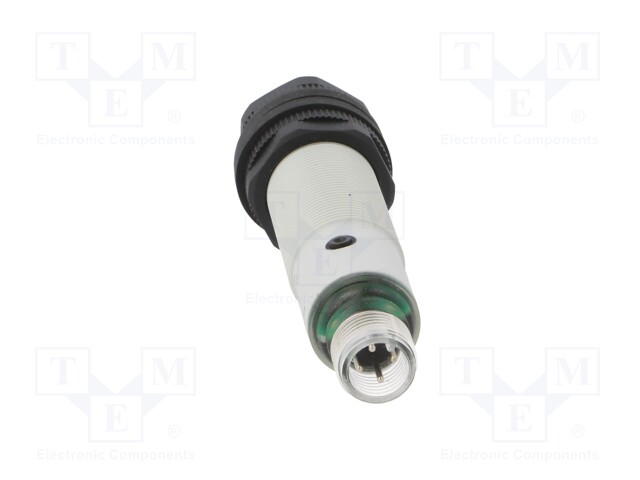

Sensor: ultrasonic; straight; Range: 0.2÷2.2m; 0-10V analogue

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: UK1F/G1-0ESY
    Manufacturer: Micro Detectors
    Manufacturer code: UK1F/G1-0ESY
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Kind of sensor
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max

    484.74 € 484.74 € (wo VAT) 484.74 EUR

    484.74 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: ultrasonic; straight; Range: 0.2÷2.2m; 0-10V analogue

    Supply voltage 15...30V DC
    Max. operating current 100mA
    Operating temperature -25...70°C
    IP rating IP67
    Number of pins 4
    Body material PBT
    Range 0.2...2.2m
    Output configuration 0-10V analogue
    Kind of sensor straight
    Type of sensor ultrasonic
    Connection connector M12
    Switch housing M18
    Switching frequency max 2Hz
