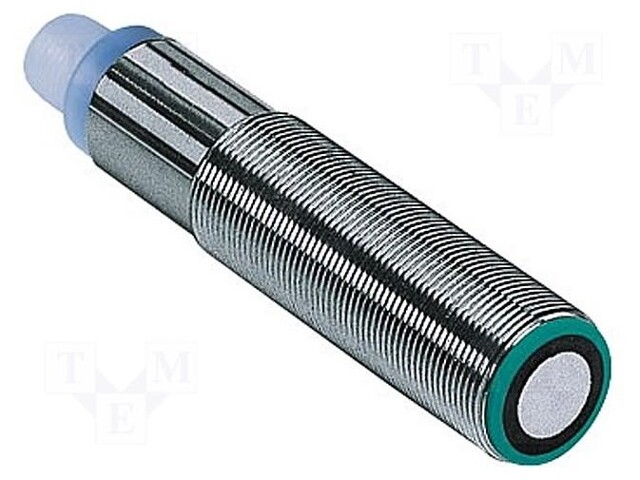

Sensor: ultrasonic; straight; Range: 70÷1000mm; analogue 4-20mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: UB1000-18GM75-I-V15
    Manufacturer: PEPPERL+FUCHS
    Manufacturer code: UB1000-18GM75-I-V15
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Kind of sensor
    • Body plating
    • Type of sensor
    • Connection
    • Switch housing

    472.49 € 472.49 € (wo VAT) 472.49 EUR

    472.49 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: ultrasonic; straight; Range: 70÷1000mm; analogue 4-20mA

    Supply voltage 10...30V DC
    Max. operating current 200mA
    Operating temperature -25...70°C
    IP rating IP65
    Number of pins 5
    Body material brass
    Range 70...1000mm
    Output configuration analogue 4-20mA
    Kind of sensor straight
    Body plating nickel
    Type of sensor ultrasonic
    Connection connector M12
    Switch housing M18
