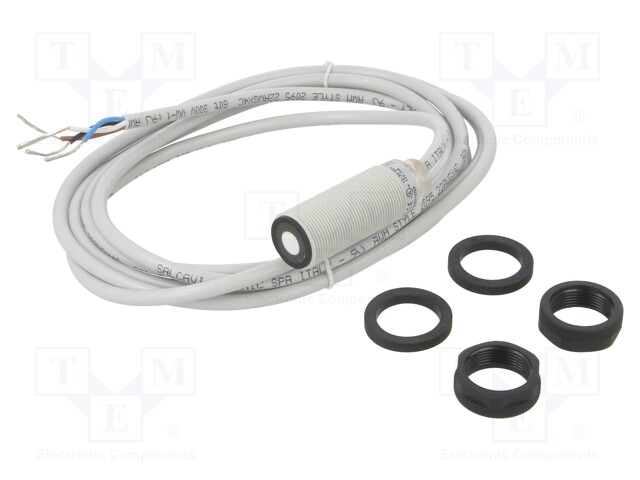

Sensor: ultrasonic; Range: 40÷300mm; PNP / NO / NC; Usup: 10÷30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: UA18CSD03PPTI
    Manufacturer: CARLO GAVAZZI
    Manufacturer code: UA18CSD03PPTI
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Body material
    • Range
    • Output configuration
    • Indication
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max

    266.01 € 266.01 € (wo VAT) 266.01 EUR

    266.01 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: ultrasonic; Range: 40÷300mm; PNP / NO / NC; Usup: 10÷30VDC

    Supply voltage 10...30V DC
    Max. operating current 100mA
    Operating temperature -20...60°C
    IP rating IP67
    Body material PBT
    Range 40...300mm
    Output configuration PNP / NO / NC
    Indication LED
    Type of sensor ultrasonic
    Connection lead 2m
    Switch housing M18
    Switching frequency max 8Hz
