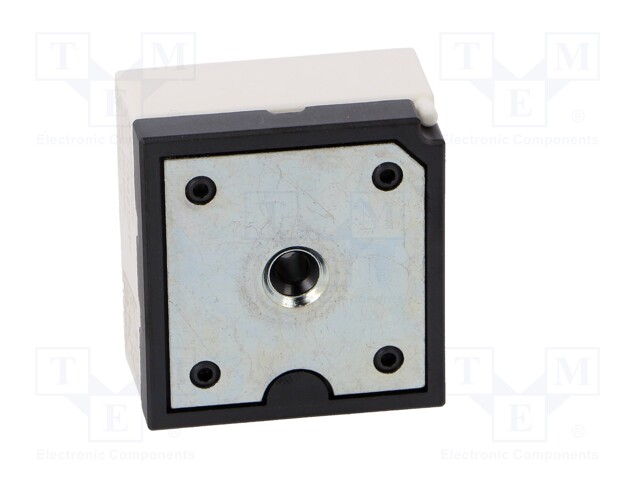

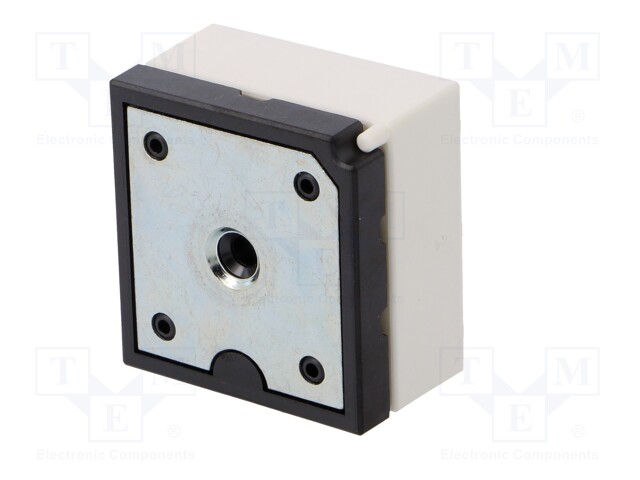

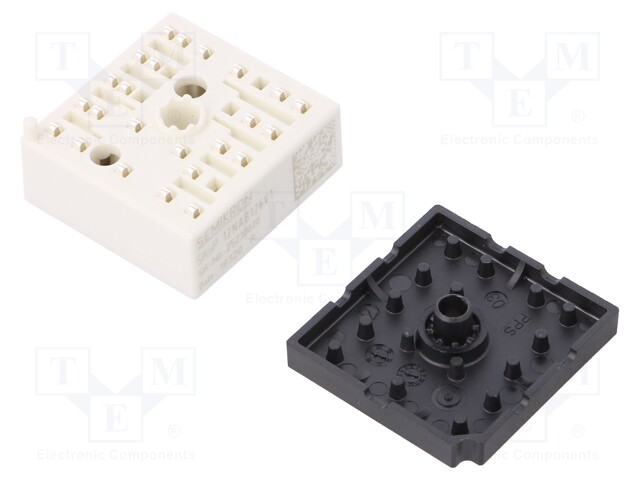

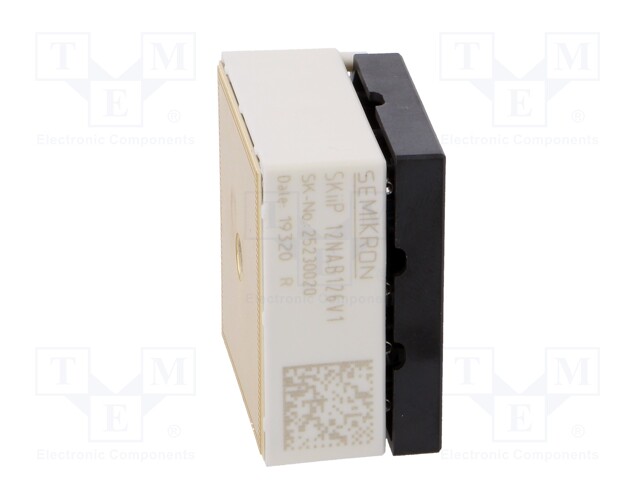

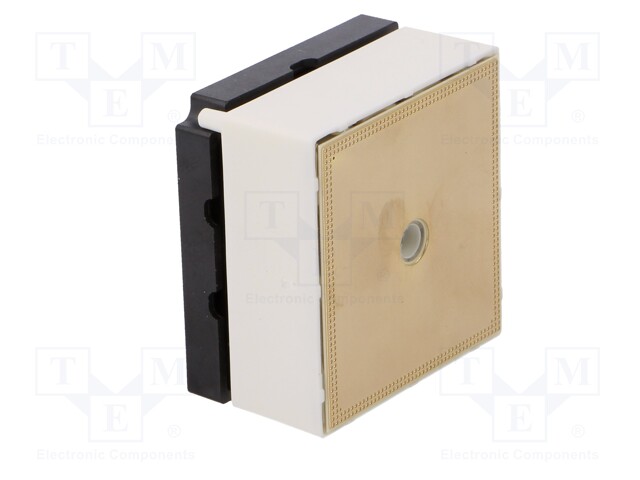

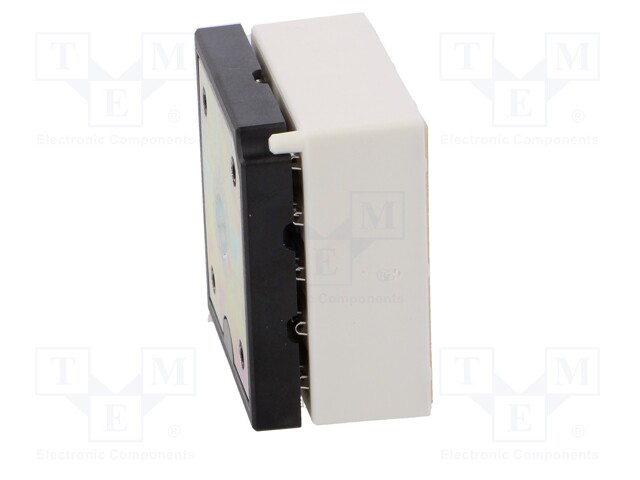

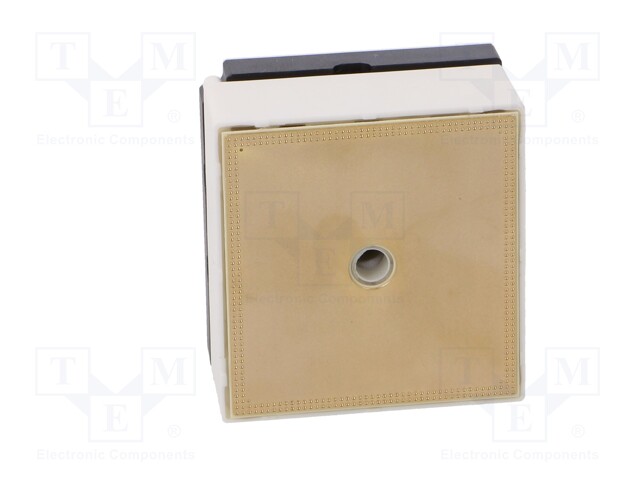

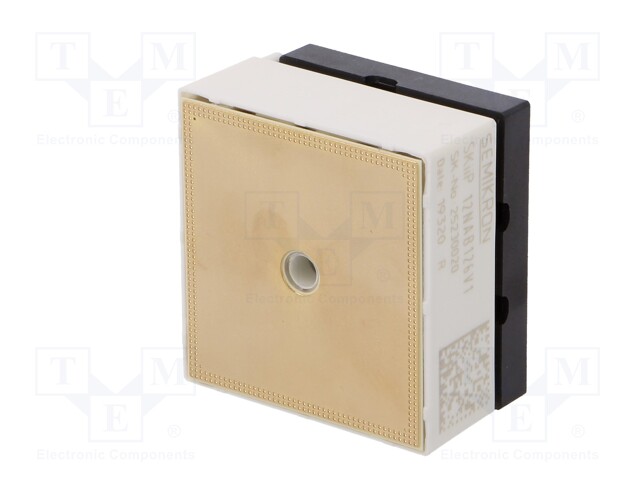

Module: IGBT; diode/transistor; IGBT three-phase bridge; Ic: 22A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: SKIIP 12NAB126V1 25230020
    Manufacturer: SEMIKRON
    Manufacturer code: SKIIP 12NAB126V1 25230020
    • Case
    • Power
    • Electrical mounting
    • Mechanical mounting
    • Semiconductor structure
    • Max. off-state voltage
    • Type of module
    • Application
    • Application
    • Application
    • Gate-emitter voltage
    • Pulsed collector current
    • Topology
    • Topology
    • Topology
    • Topology
    • Collector current

    44.93 € 44.93 € (wo VAT) 44.93 EUR

    44.93 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: IGBT; diode/transistor; IGBT three-phase bridge; Ic: 22A

    Case MiniSKiiP® 1
    Power 5.5kW
    Electrical mounting Press-Fit
    Mechanical mounting screw
    Semiconductor structure diode/transistor
    Max. off-state voltage 1.2kV
    Type of module IGBT
    Application frequency changer, Inverter, for UPS
    Gate-emitter voltage ±20V
    Pulsed collector current 30A
    Topology brake chopper, IGBT three-phase bridge, thermistor, three-phase diode bridge
    Collector current 22A
