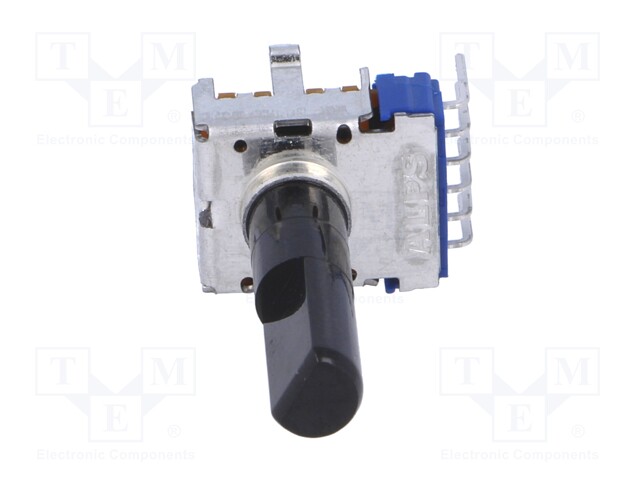

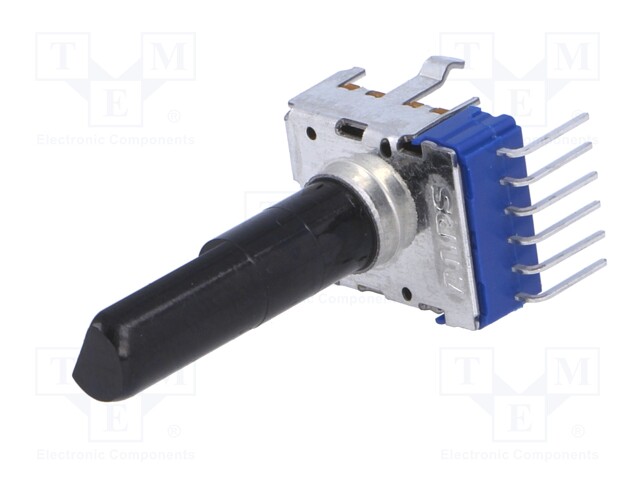

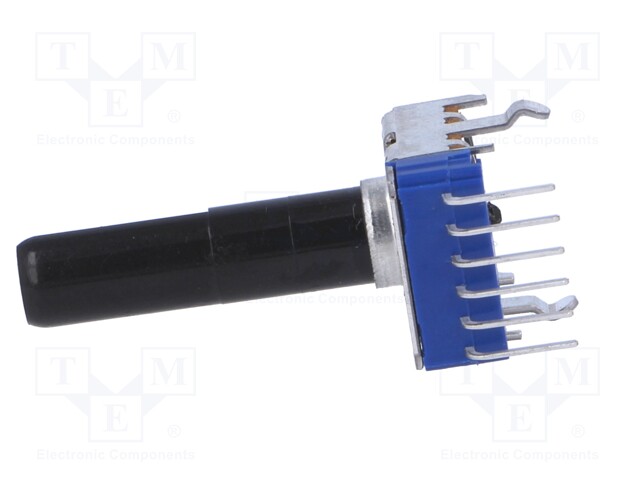

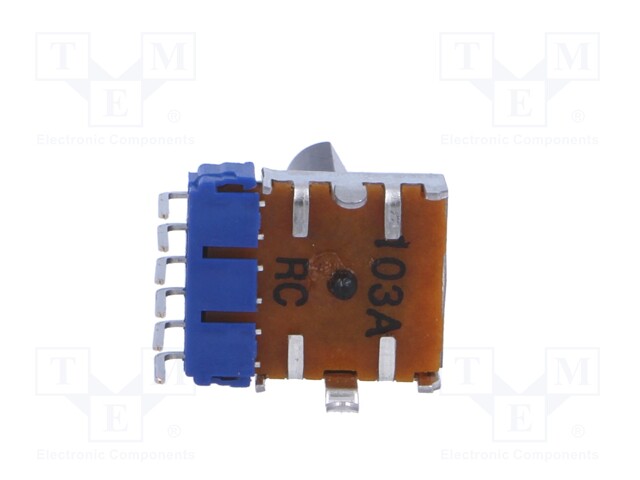

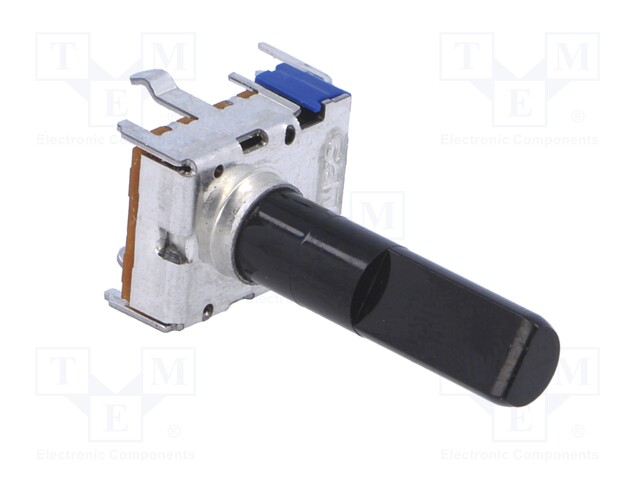

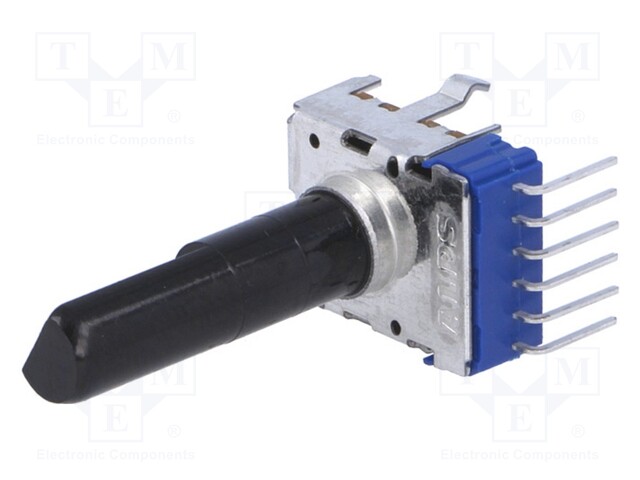

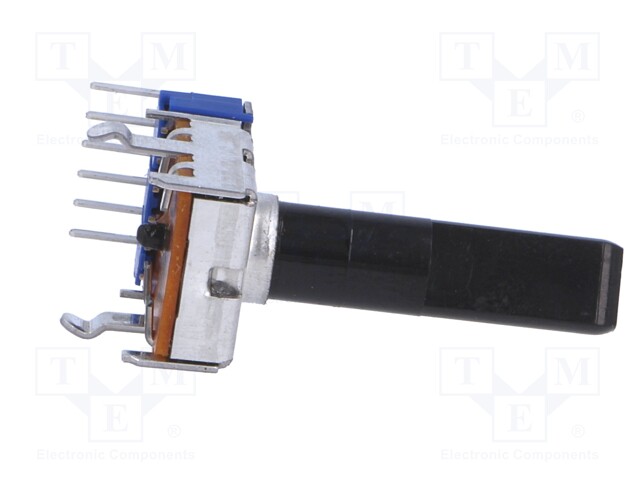

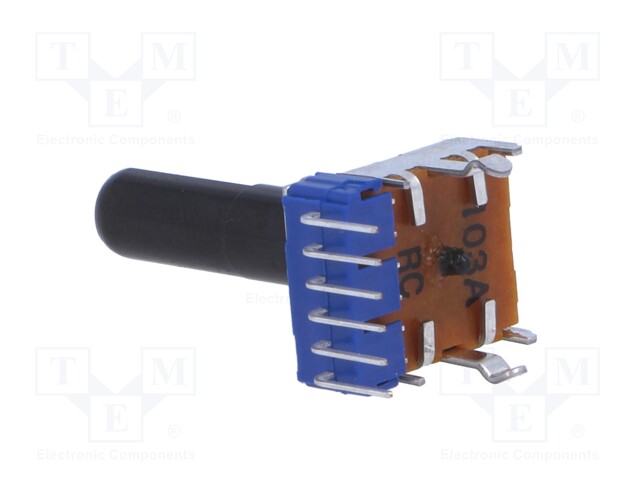

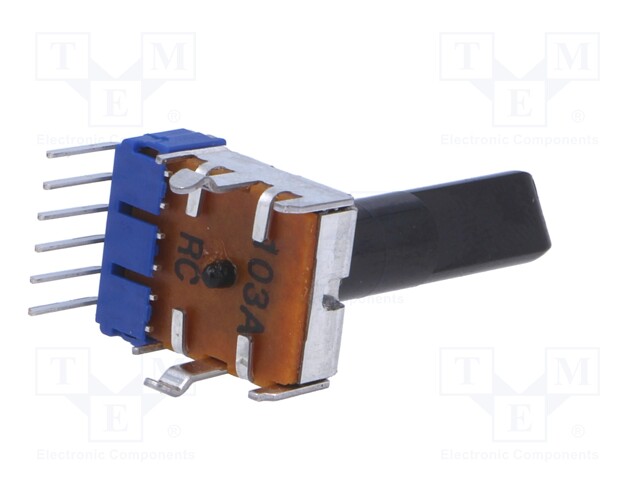

Potentiometer: shaft; 50mW; 10kΩ; ±20%; 300°; for PCB; logarithmic

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RK12L12C0A0G
    Manufacturer: ALPS
    Manufacturer code: RK12L12C0A0G
    • Power
    • Resistance
    • Tolerance
    • Leads
    • Terminal pitch
    • Body dimensions
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Cut depth
    • Kind of potentiometer
    • Kind of potentiometer
    • Type of potentiometer
    • Characteristics
    • Mechanical rotation angle
    • Potentiometer features
    • Shaft material

    1.56 € 1.56 € (wo VAT) 1.56 EUR

    1.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; 50mW; 10kΩ; ±20%; 300°; for PCB; logarithmic

    Power 50mW
    Resistance 10kΩ
    Tolerance ±20%
    Leads for PCB
    Terminal pitch 2mm
    Body dimensions 15.5x12x8.6mm
    Shaft length 21.4mm
    Shaft diameter 6mm
    Shaft surface D spring
    Cut depth 1.5mm
    Kind of potentiometer single turn, vertical
    Type of potentiometer shaft
    Characteristics logarithmic
    Mechanical rotation angle 300°
    Potentiometer features stereo
    Shaft material plastic
