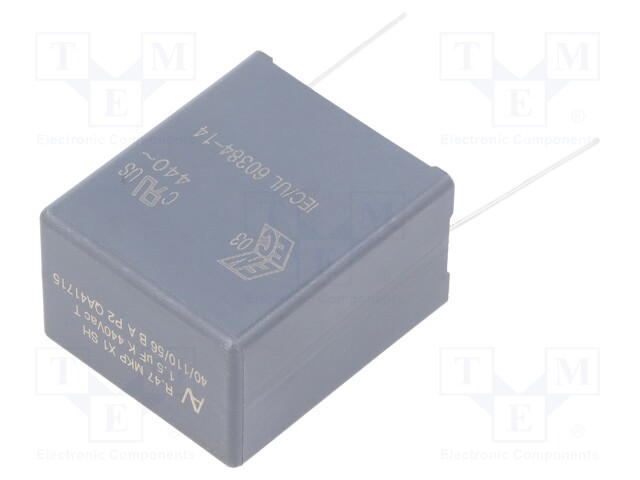

Capacitor: polypropylene; X1; 1.5uF; 440VAC; ±10%; Pitch: 27.5mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R474R415050A1KV057
    Manufacturer: KEMET
    Manufacturer code: R474R415050A1KV057
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • Lead length
    • Conform to the norm
    • Climate class
    • Pulse resistance

    5.24 € 5.24 € (wo VAT) 5.24 EUR

    5.24 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: polypropylene; X1; 1.5uF; 440VAC; ±10%; Pitch: 27.5mm

    Mounting THT
    Operating temperature -40...110°C
    Tolerance ±10%
    Terminal pitch 27.5mm
    Body dimensions 32x37x22mm
    Max. operating voltage 440V AC, 1kV DC
    Capacitance 1.5µF
    Kind of capacitor X1
    Type of capacitor polypropylene
    Lead length 25mm
    Conform to the norm AEC-Q200
    Climate class IEC60068-1
    Pulse resistance 225V/μs
