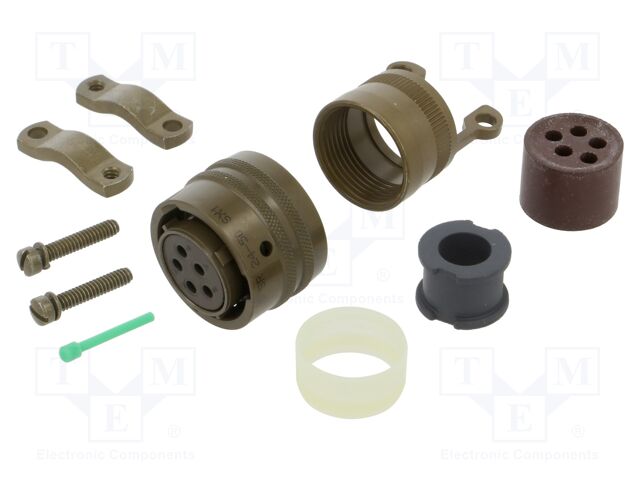

Connector: circular; plug; PT/451

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PT06E1405SSR
    Manufacturer: AMPHENOL
    Manufacturer code: PT06E1405SSR
    • Case
    • Operating temperature
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Enclosure material
    • Type of connector
    • Number of pins
    • Current rating
    • Rated voltage
    • Locking system
    • Connector variant
    • Spatial orientation
    • Contact size

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Connector: circular; plug; PT/451

    Case size 14
    Operating temperature -55...125°C
    Electrical mounting soldering
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour olive
    Contact plating gold-plated
    Enclosure material aluminium alloy
    Type of connector circular
    Number of pins 5
    Current rating 13A
    Rated voltage 600V
    Locking system internal bayonet
    Connector variant with cable clamp
    Spatial orientation straight
    Contact size 16
