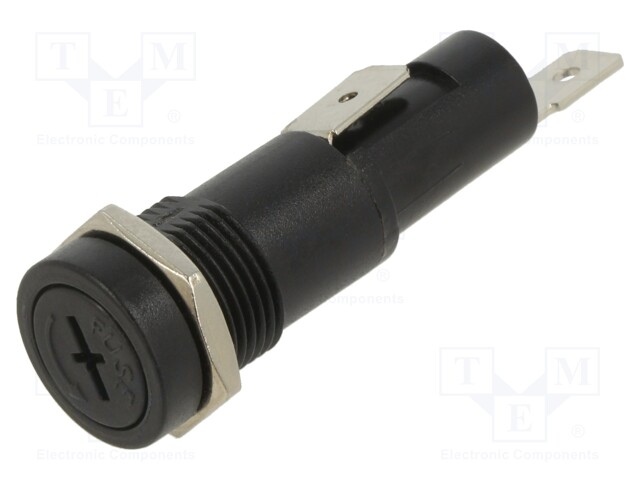

Fuse holder; 6.3x32mm; 10A; on panel; Cutout: Ø14mm; UL94V-2; IP56

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PMA-DS-08-Q2S
    Manufacturer: OPTIFUSE
    Manufacturer code: PMA-DS-08-Q2S
    • Mounting
    • IP rating
    • Contact plating
    • Leads
    • Leads
    • Contact material
    • Body material
    • Flammability rating
    • Maximum current
    • Mounting hole diameter
    • Rated voltage
    • Rated voltage
    • Panel thickness
    • Type of fuse accessories
    • Cap type

    6.14 € 6.14 € (wo VAT) 6.140000000000001 EUR

    6.14 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fuse holder; 6.3x32mm; 10A; on panel; Cutout: Ø14mm; UL94V-2; IP56

    Mounting on panel
    IP rating IP56
    Contact plating nickel plated
    Leads 6,4mm connectors, for soldering
    Contact material brass
    Body material polycarbonate
    Flammability rating UL94V-2
    Maximum current 10A
    Mounting hole diameter Ø14mm
    Rated voltage 12V DC, 250V AC
    Panel thickness max. 10mm
    Type of fuse accessories fuse holder
    Cap type screw in
