Power supply: switched-mode; 103W; 141÷370VDC; 100÷264VAC; OUT: 2
Multiples:
1.0
Minimum quantity:
1.0
Product code:
PD-110A
Manufacturer: MEAN WELL
Manufacturer code: PD-110A
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE2B4CE4E88B7CC6135&compId=pd-110-spec.pdf?ci_sign=19cd98a818cb326ecfccbb571171f73b1b439923
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69CA033D50E462FA8&compId=INB-MN-PCB-EN.pdf?ci_sign=4e5a9b6cf17e89160a630d6ea826c0c42c232ea3
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Specification for Power supply: switched-mode; 103W; 141÷370VDC; 100÷264VAC; OUT: 2
| Output current | 5 (0.5...5)A |
| Supply voltage | 100...264V AC, 141...370V DC |
| Power | 103W |
| Operating temperature | -10...60°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | PD-110 |

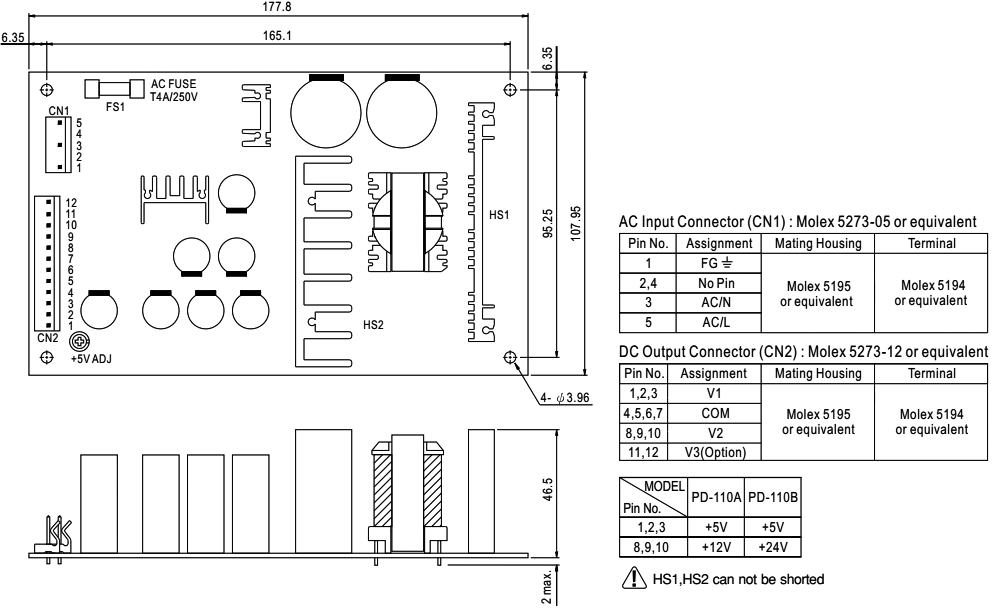

| Body dimensions | 177.8x108x46.5mm |
| Output voltage | 5V DC |
| Efficiency | 75% |
| Output current 2 | 6.5 (0.5...6.5)A |
| Output voltage 2 | 12V DC |
| Number of outputs | 2 |
| Electrical connection | plug with 3,96mm pitch |
| Kind of power supply | open |
