Power supply: switched-mode; modular; 108W; 24VDC; 129x97x30mm
Multiples:
1.0
Minimum quantity:
1.0
Product code:
LRS-100-24
Manufacturer: MEAN WELL
Manufacturer code: LRS-100-24
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED881B4CFC1C93BAA18&compId=LRS-100-SPEC.pdf?ci_sign=a894ecb03f8e1485e6a3b16b2a75d2de56eebba9
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69AF1DDED075F4FA8&compId=INB-MN-ENCLOSED-EN.pdf?ci_sign=8e403b3848ad88af3c834f5c23e01f888bbf668c
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Specification for Power supply: switched-mode; modular; 108W; 24VDC; 129x97x30mm
| Output current | 4.5A |
| Supply voltage | 85...264V AC, 120...373V DC |
| Power | 108W |
| Operating temperature | -30...70°C |
| Protection | anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | LRS-100 |

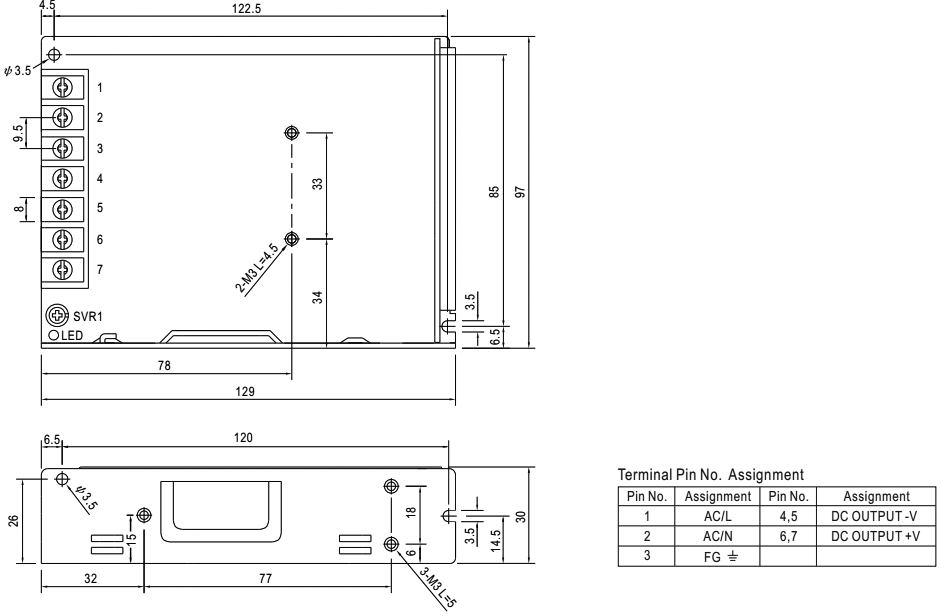

| Body dimensions | 129x97x30mm |
| Output voltage | 24V DC |
| Efficiency | 90% |
| Number of outputs | 1 |
| Electrical connection | terminal block |
| Kind of power supply | modular |
| Kind of case | 238A |
