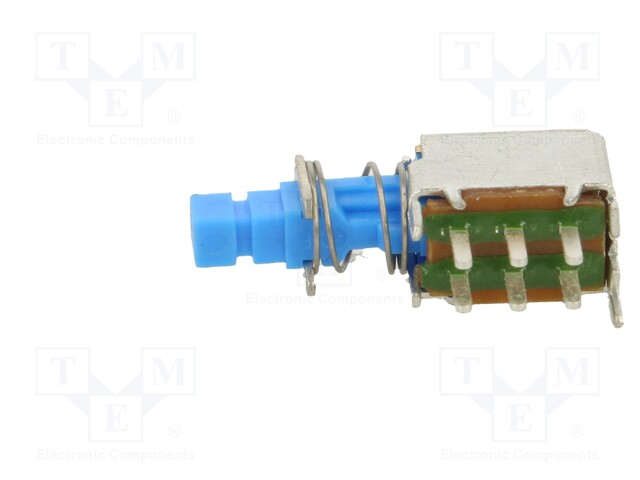

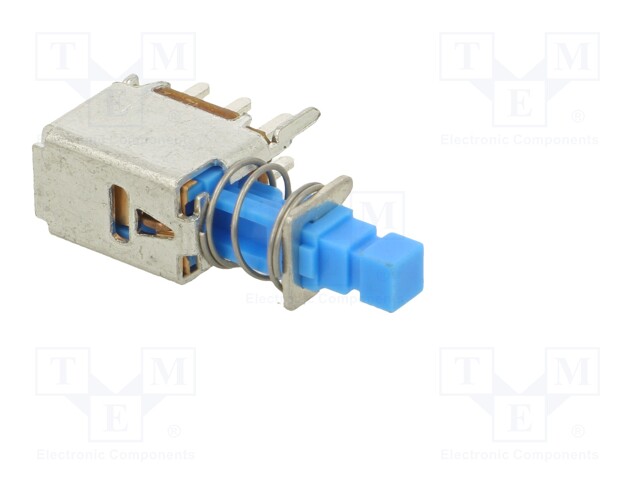

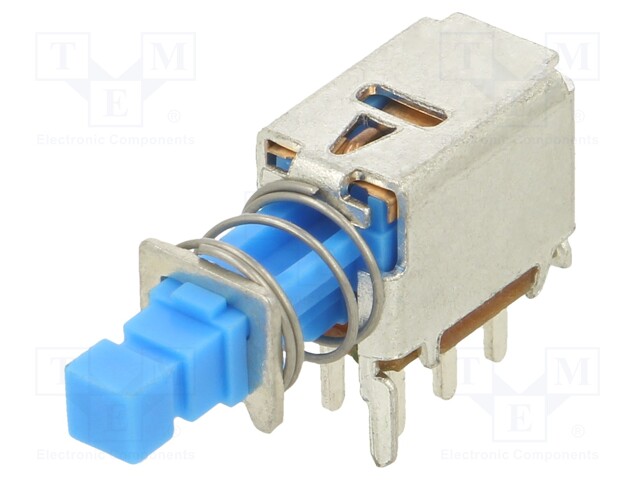

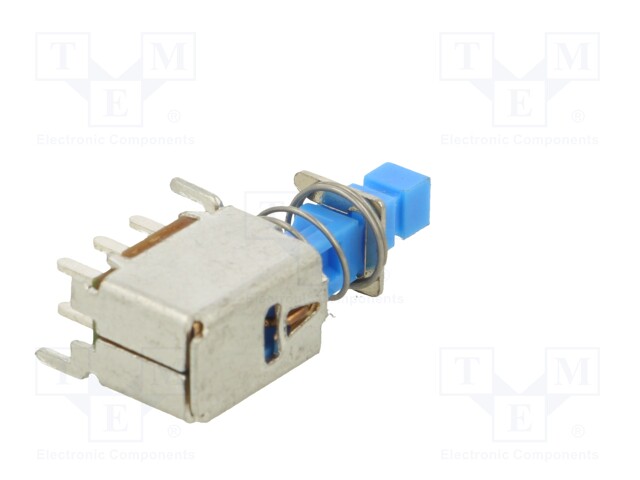

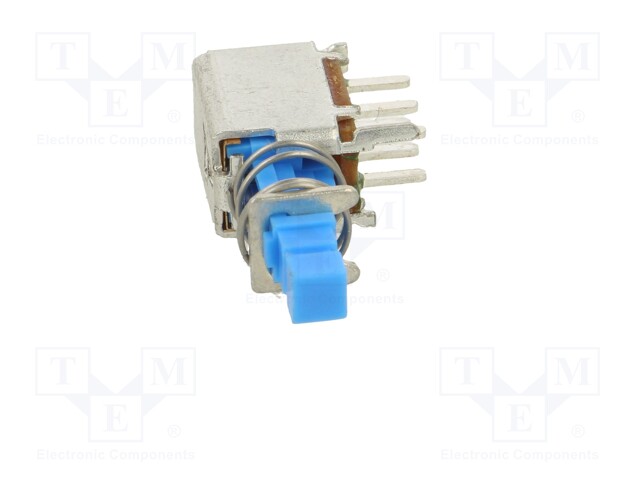

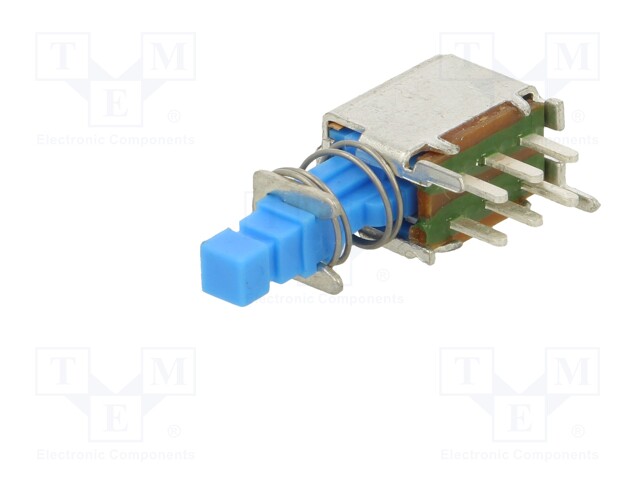

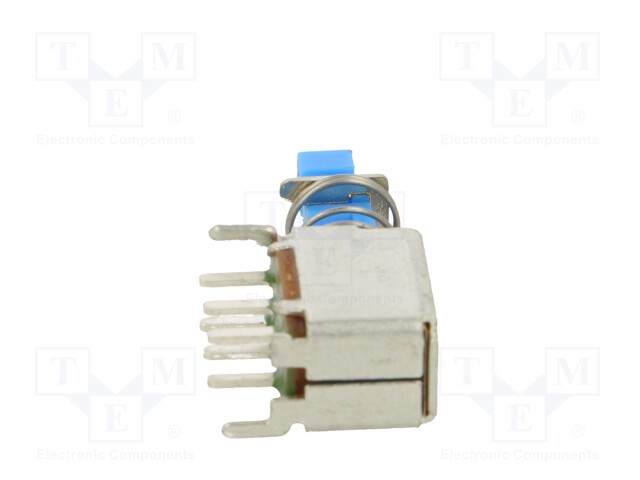

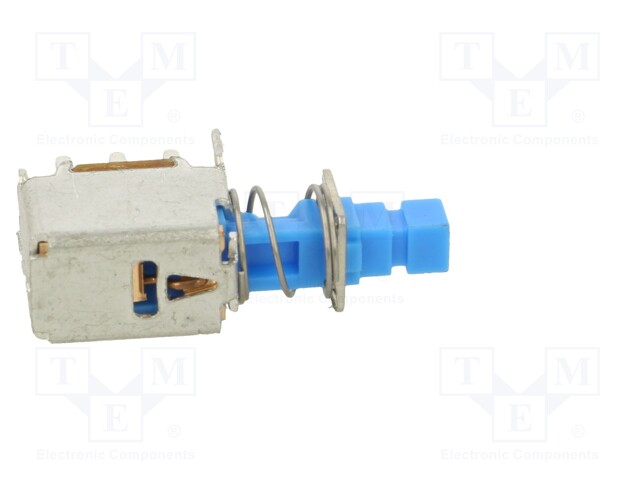

Switch: push-button; Pos: 2; DPDT; 0.3A/30VDC; Rcont max: 200mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: LC2255EENP
    Manufacturer: E-SWITCH
    Manufacturer code: LC2255EENP
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Mechanical durability
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Switching method
    • Stable positions number
    • Operating Force

    1.78 € 1.78 € (wo VAT) 1.78 EUR

    1.78 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; DPDT; 0.3A/30VDC; Rcont max: 200mΩ

    Mounting THT
    Operating temperature -20...80°C
    Type of switch push-button
    Contact plating silver plated
    Number of positions 2
    Leads angled, for PCB
    Contact material phosphor bronze
    Max. contact resistance: 200mΩ
    Mechanical durability 10000cycles
    Contacts configuration DPDT
    DC contacts rating @R 0.3A / 30V DC
    Switching method BBM (non-shorting), ON-ON
    Stable positions number 2
    Operating Force 2.94N
