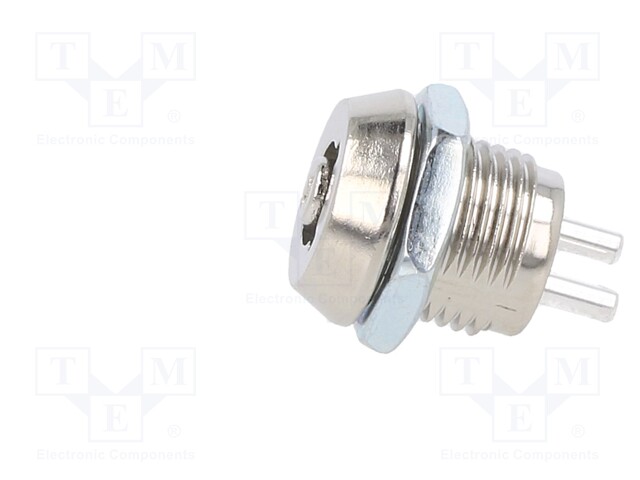

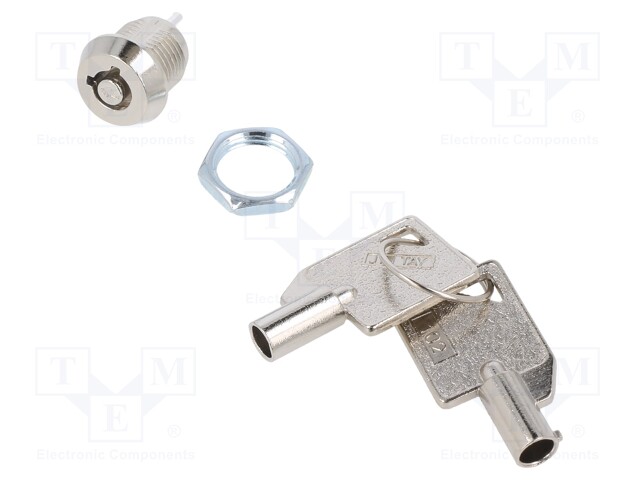

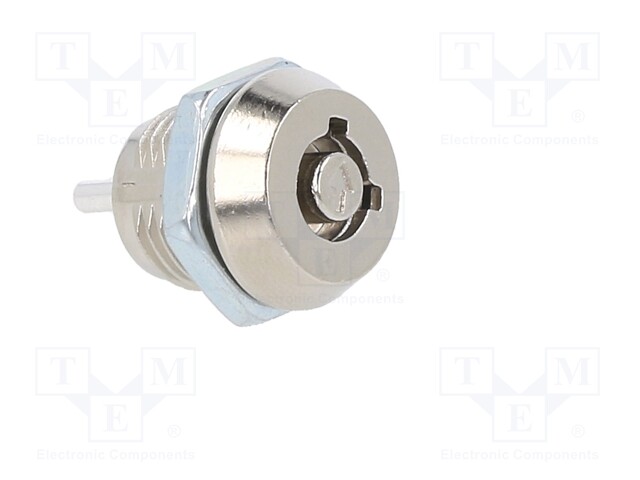

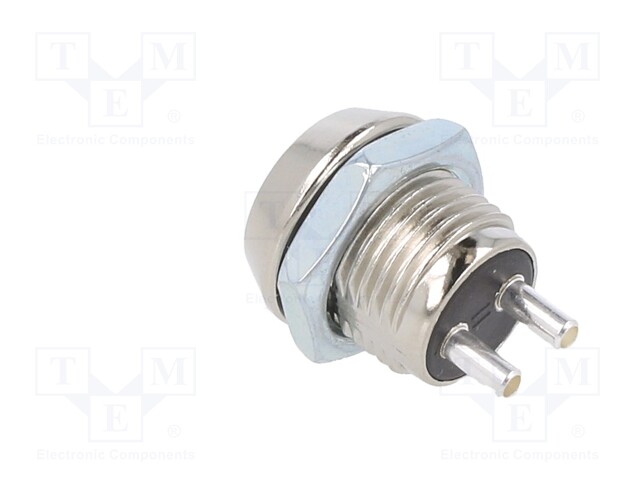

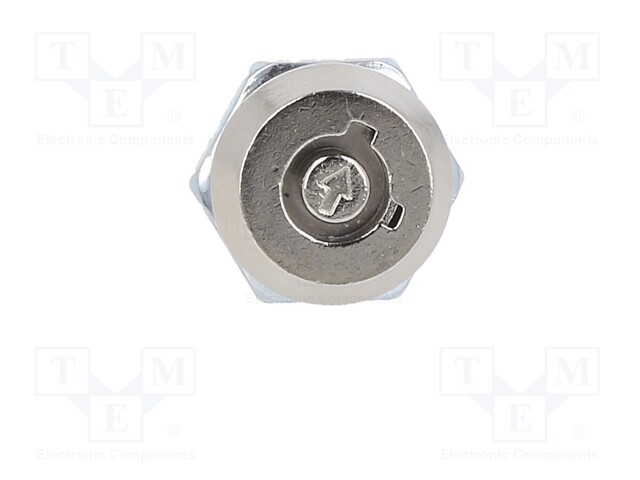

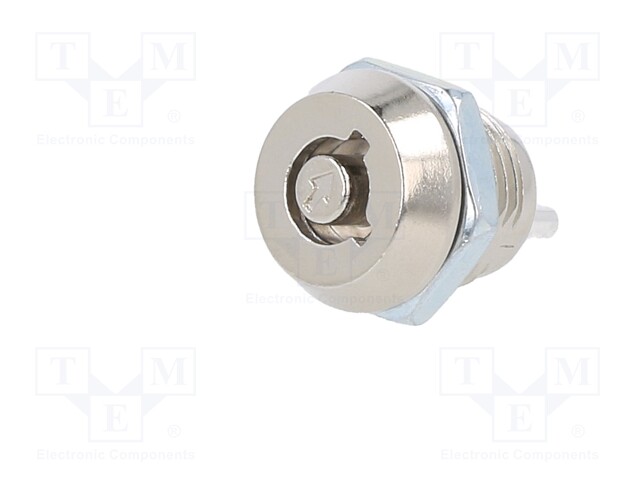

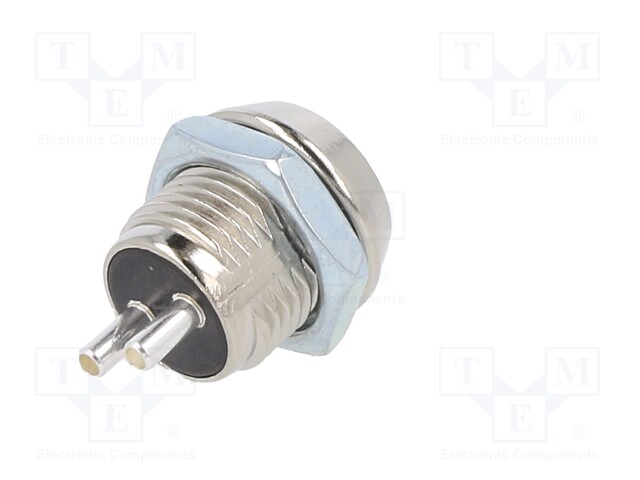

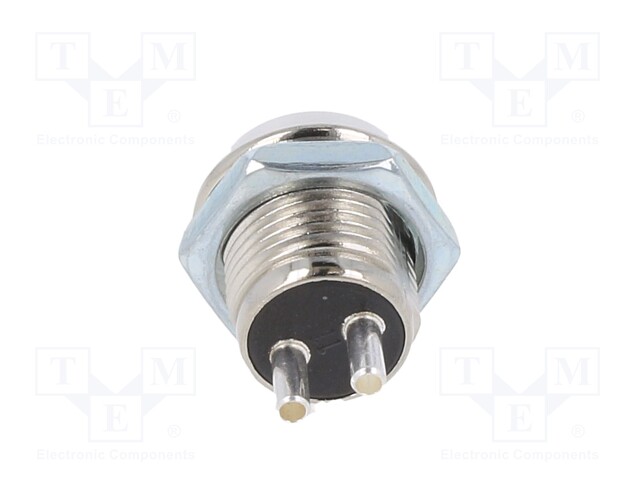

Switch: key switch; Stabl.pos: 2; Switch.method: OFF-ON; Key: round

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: KO106A102
    Manufacturer: E-SWITCH
    Manufacturer code: KO106A102
    • Mounting
    • Type of switch
    • Contact plating
    • Number of positions
    • Contact material
    • Max. contact resistance:
    • Body material
    • Mounting hole diameter
    • Number of terminals
    • Overall length
    • Body plating
    • Mechanical rotation angle
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Key shape

    4.40 € 4.40 € (wo VAT) 4.4 EUR

    4.40 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: key switch; Stabl.pos: 2; Switch.method: OFF-ON; Key: round

    Mounting on panel
    Type of switch key switch
    Contact plating silver plated
    Number of positions 2
    Contact material copper
    Max. contact resistance: 20mΩ
    Body material zinc alloy
    Mounting hole diameter Ø12mm
    Number of terminals 2
    Overall length 19.3mm
    Body plating chrome
    Mechanical rotation angle 90°
    Contacts configuration SPST-NO
    AC contacts rating @R 0.5A / 250V AC
    Switching method OFF-ON
    Stable positions number 2
    Key shape round
