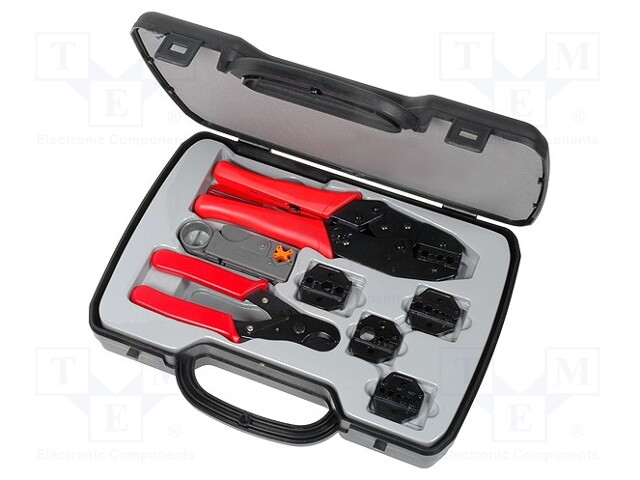

For colaxial/RF connector crimping; Package: case

• Kind of package case
• Package dimensions 305x235x60mm
• Tools features 236A die - crimping HF connectors on RG cables: 55, 58, 59, 62, 140, 141, 142, 210, 223, 174, 303, 400, fiber-optic cables, Belden 8279
• Tools features 336C die - crimping HF connectors on RG cables: 6, 59, 62, 140, 210, Belden 8279, 55, 58, 141, 142, 223, 303, 400, fiber-optic cables;
• Tools features 336G die - crimping HF connectors on RG cables: 59, 62 , 8X, 140, 210, Belden 8279, 55, 58, 141, 142, 174, 223, 303, 400, fiber-optic cables;
• Tools features 336J die - crimping HF connectors on RG cables: 122, 174, 179, 180, 187, 188, 195, 178, 316, Belden 8279, fiber-optic cables
• Tools features 336K - crimping HF connectors on RG cables: 8, 9, 11, 87A, 149, 165, 213, 216, 225, 393, 174, 179, 187, 188, 316, Belden 9913
• Crimp tool features a special lever mechanism generates high pressure
• Crimp tool features a stripper design enables to mount the tool on the cable as a self- tightening clip
• Crimp tool features cutting of insulation layers occurs simultaneously after the tool rotates several times around the cable
• Crimp tool features handles fitted with plastic sleeves
• Crimp tool features pliers fitted with return spring, jaws opening lock and plastic sleeves on handles
• Crimp tool features pliers made of hardened carbon steel
• Crimp tool features the crimp correctness is ensured by special ratchet mechanism which enables to open the tool only after finishing the full crimping cycle
• Crimp tool features two movable knives, adjustable with delivered Allen hex key, enable to set insulation cutting acc. to system: 4, 6, 8, 12mm
• Type of tools set for colaxial/RF connector crimping
• Pliers length 165mm
• Crimp tool length 220mm
• Stripper head marking 6 - RG6
• Stripper head marking 8 - RG58
• Stripper head marking 9 - RG59/62
• Stripper head marking D - special
