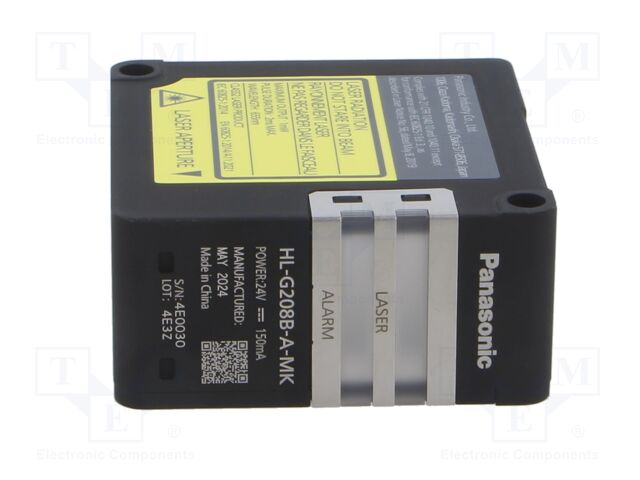

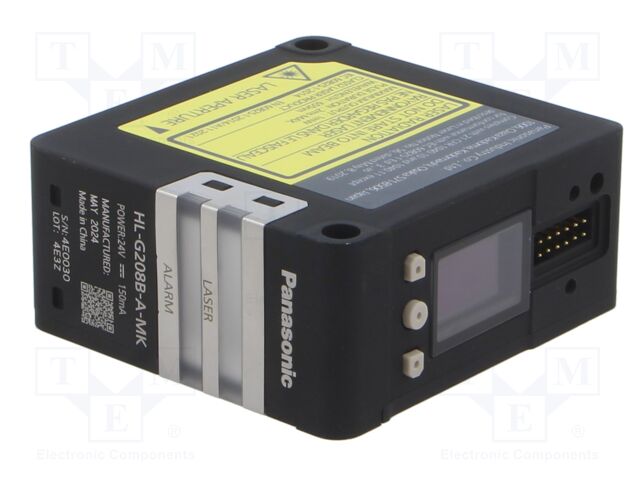

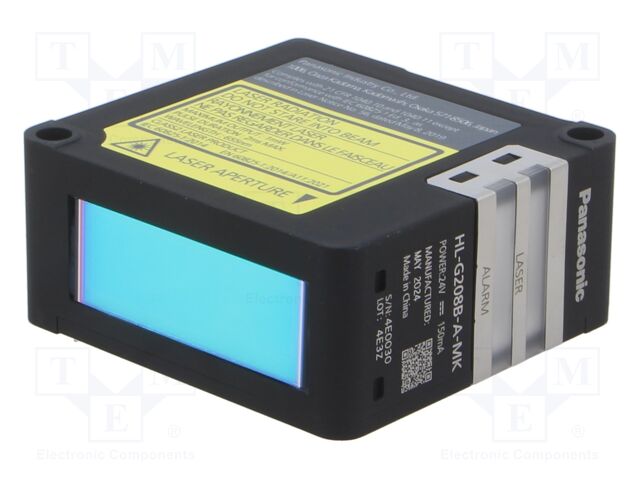

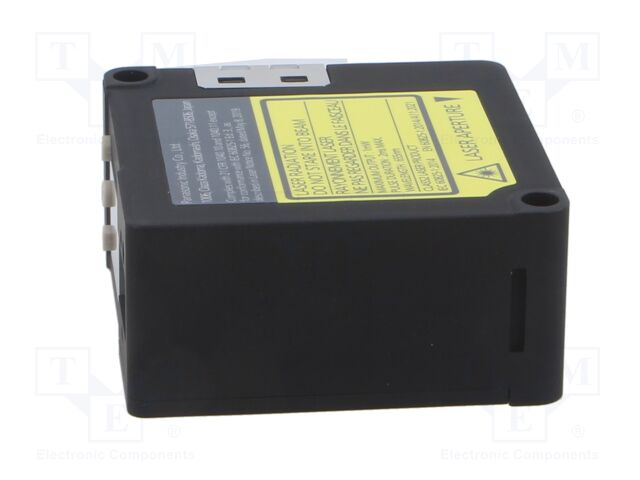

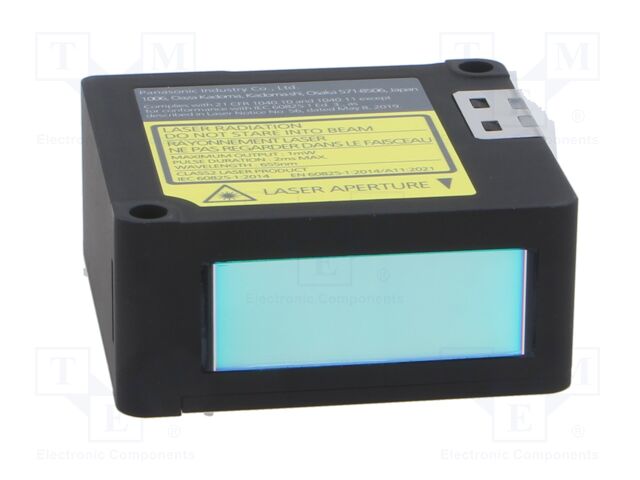

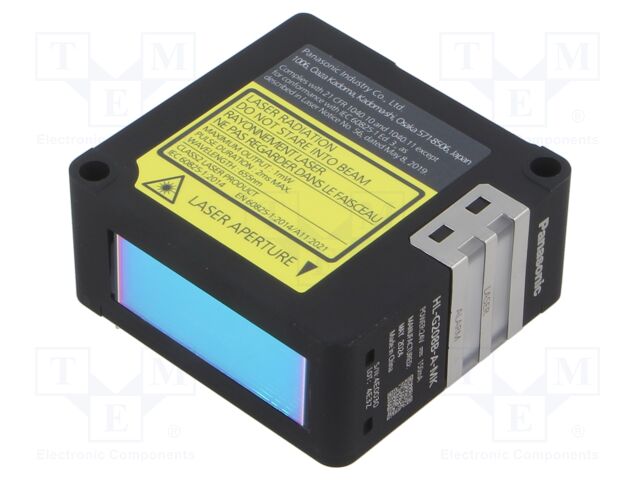

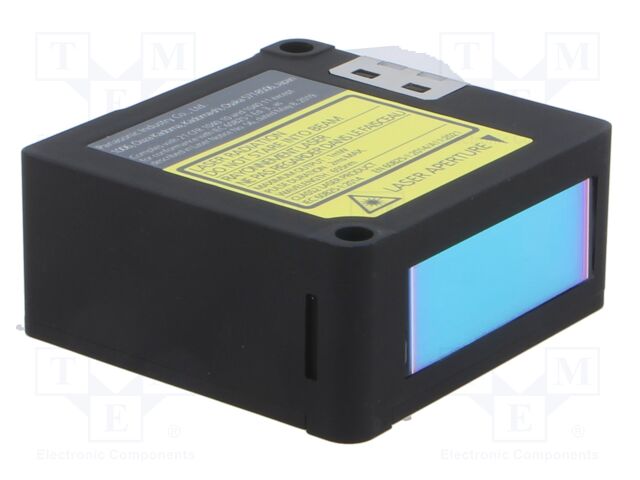

Sensor: distance; laser; diffuse-reflective; Range: 85mm; analogue

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HL-G208B-A-MK
    Manufacturer: PANASONIC
    Manufacturer code: HL-G208B-A-MK
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Body material
    • Range
    • Resolution
    • Output configuration
    • Kind of sensor
    • Type of sensor
    • Measuring range
    • Operation mode
    • Number of digital outputs
    • Number of digital inputs

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: distance; laser; diffuse-reflective; Range: 85mm; analogue

    Supply voltage 24V DC
    Max. operating current 50mA
    Operating temperature -10...45°C
    IP rating IP67
    Body material PBT
    Range 85mm
    Resolution 2,5µm
    Output configuration analogue
    Kind of sensor laser
    Type of sensor distance
    Measuring range ±20mm
    Operation mode diffuse-reflective
    Number of digital outputs 3
    Number of digital inputs 3
