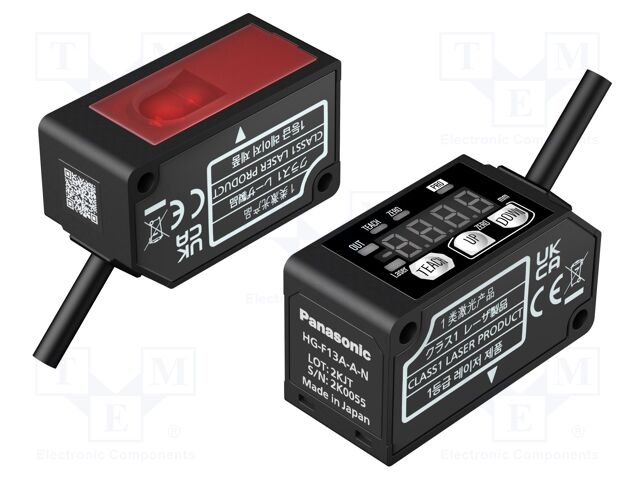

Sensor: distance; laser; diffuse-reflective; Range: 250÷3000m; NPN

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HG-F13A-A-N
    Manufacturer: PANASONIC
    Manufacturer code: HG-F13A-A-N
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Body material
    • Body dimensions
    • Output configuration
    • Kind of sensor
    • Type of sensor
    • Kind of output 1
    • Connection
    • Operation mode
    • Operation modes
    • Operation modes
    • Number of digital outputs

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: distance; laser; diffuse-reflective; Range: 250÷3000m; NPN

    Supply voltage 24V DC
    Max. operating current 50mA
    Operating temperature -10...45°C
    IP rating IP67
    Body material PBT
    Body dimensions 44x25x20mm
    Output configuration NPN
    Kind of sensor laser
    Type of sensor distance
    Kind of output 1 transistor
    Connection lead 2m
    Operation mode diffuse-reflective
    Operation modes DARK-ON, LIGHT-ON
    Number of digital outputs 1
