Wire: ribbon; 0.635mm; solid; Cu; 50x30AWG; unshielded; LSZH; grey

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF447/50 (100FT)
    Manufacturer: 3M
    Manufacturer code: HF447/50 (100FT)
    • Operating temperature
    • Core structure
    • Kind of core
    • Kind of core
    • Number of cores
    • Rated voltage
    • Ribbon cable pitch
    • B dimension
    • A dimension
    • Insulation colour
    • Type of wire
    • Shield structure

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Wire: ribbon; 0.635mm; solid; Cu; 50x30AWG; unshielded; LSZH; grey

    Operating temperature -40...90°C
    Core structure solid
    Kind of core Cu, tinned
    Number of cores 50
    Rated voltage 50V
    Ribbon cable pitch 0.635mm

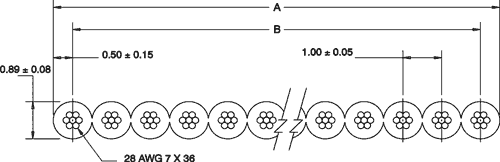

    B dimension 31.12mm
    A dimension 31.75mm
    Insulation colour grey
    Type of wire ribbon
    Shield structure unshielded
