Switch: push-button; Pos: 2; SPST-NO; 12A/250VAC; black; Body: black
Multiples:
1.0
Minimum quantity:
1.0
Product code:
H8300ABBB
Manufacturer: BULGIN
Manufacturer code: H8300ABBB
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDD93D97DC8F02AA0D3&compId=SWITCHES-YTB.txt?ci_sign=6774b27fa556736fdcee83bebd900a36353e2b01
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE787EC0DF4553C2745&compId=Bulgin_Catalogue_High_Quality.pdf?ci_sign=354c7c793ba33dd8f6a93cc91e3047cce90b7904
- pVersion=0046&contRep=ZT&docId=E1C0434790F7ADF1A6F5005056AB5A8F&compId=8300.pdf?ci_sign=e02be7e8adb7ae8200f406ec30fc34abc2c5605c

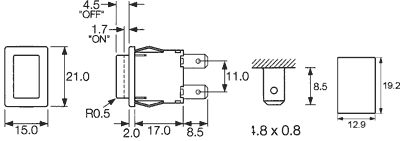

Specification for Switch: push-button; Pos: 2; SPST-NO; 12A/250VAC; black; Body: black
Mounting | on panel |
Operating temperature | -25...70°C |
Type of switch | push-button |
Number of positions | 2 |
Leads | 4,8x0,8mm connectors |
Mounting hole diameter | 19.2x12.9mm |
Body colour | black |
Illumination | none |
Contacts configuration | SPST-NO |
AC contacts rating @R | 12A / 250V AC |
Switching method | OFF-ON |
Stable positions number | 2 |
Actuator colour | black |
