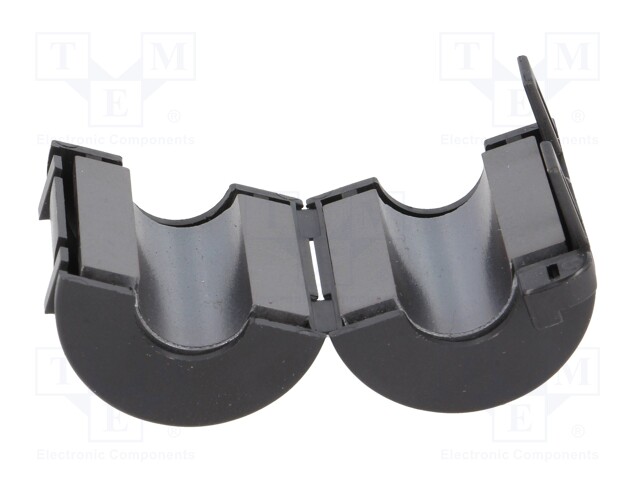

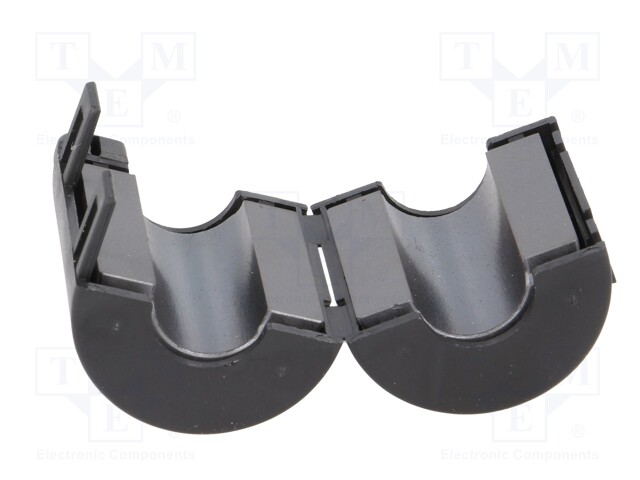

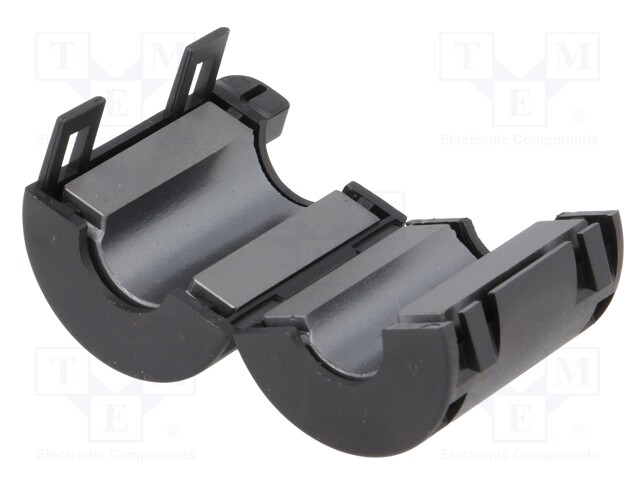

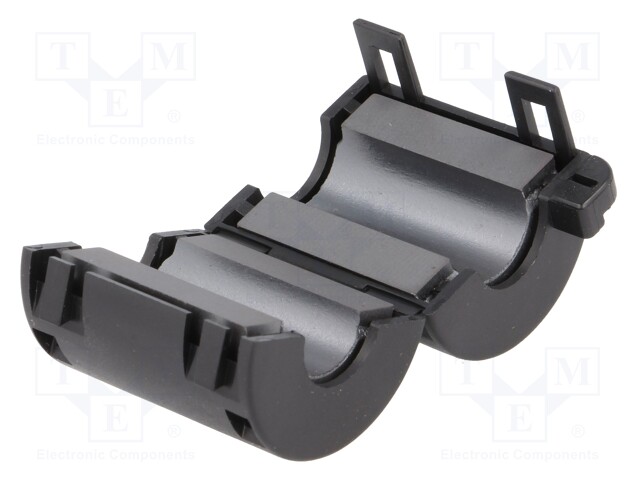

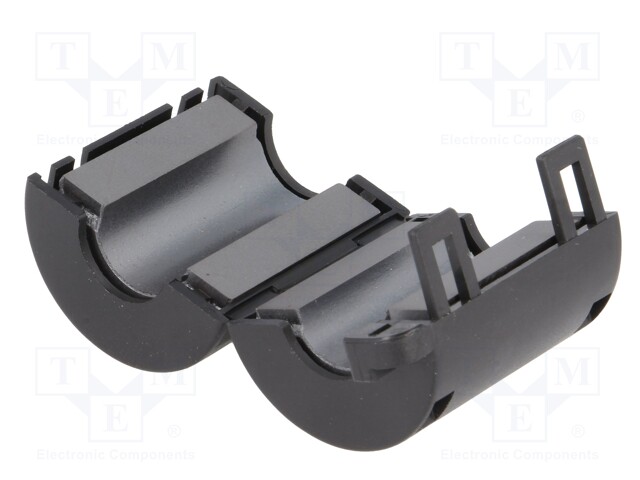

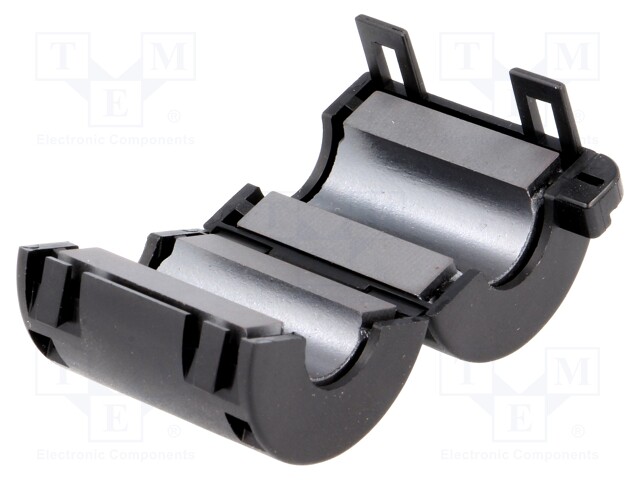

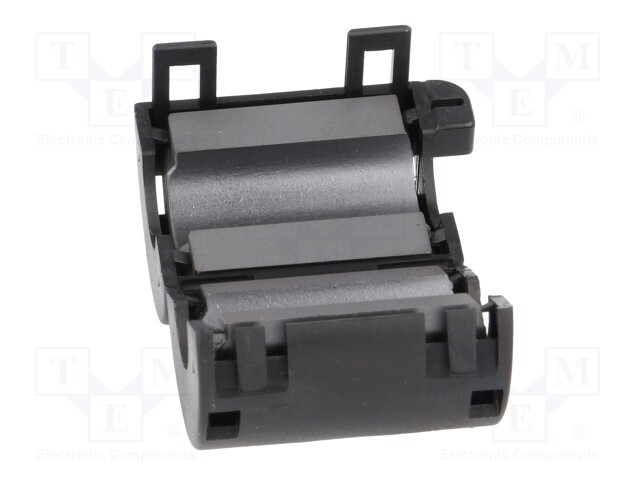

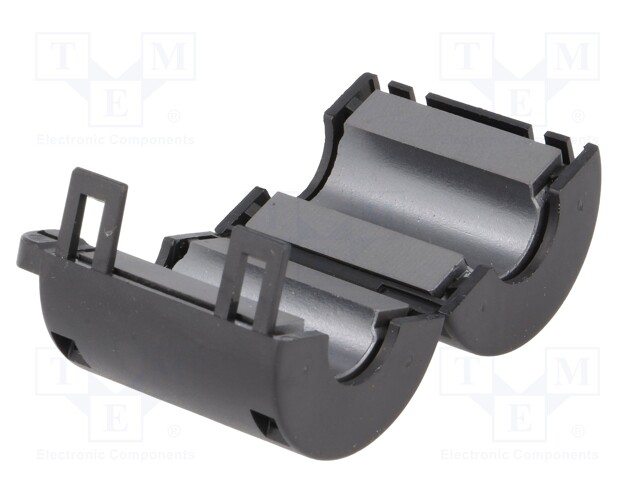

Ferrite: two-piece; on round cable; Ø: 13mm; 125Ω; A: 31.5mm; C: 13mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FLF-1302B
    Manufacturer: FERROCORE
    Manufacturer code: FLF-1302B
    • Mounting
    • Enclosure material
    • D dimension
    • B dimension
    • A dimension
    • C dimension
    • Type of ferrite
    • Ferrite application
    • Impedance at 100MHz
    • Core material
    • Impedance at 25MHz
    • Ferrite features
    • Max. wire diameter

    1.00 € 1.00 € (wo VAT) 1.0 EUR

    1.00 €

    This combination does not exist.

    Add to Cart

    Specification for Ferrite: two-piece; on round cable; Ø: 13mm; 125Ω; A: 31.5mm; C: 13mm

    Mounting on cable
    Enclosure material polyamide
    D dimension 34mm
    B dimension 30.5mm
    A dimension 31.5mm
    C dimension 13mm
    Type of ferrite two-piece
    Ferrite application on round cable
    Impedance at 100MHz 230Ω
    Core material Ni-Zn ferromagnetic
    Impedance at 25MHz 125Ω
    Ferrite features reduce electromagnetic interference
    Max. wire diameter 13mm
