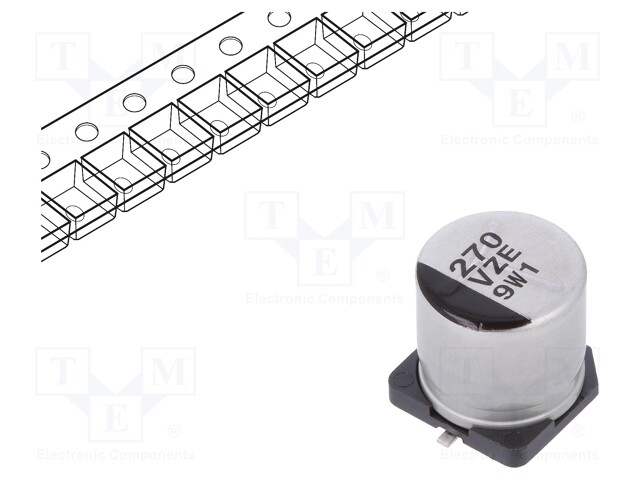

Capacitor: hybrid; 270uF; 35VDC; ESR: 20mΩ; ZE; SMD; ±20%; -55÷125°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EEHZE1V271P
    Manufacturer: PANASONIC
    Manufacturer code: EEHZE1V271P
    • Mounting
    • Operating voltage
    • Operating temperature
    • Tolerance
    • Operating current
    • Body dimensions
    • Capacitance
    • Type of capacitor
    • Conform to the norm
    • Capacitors features
    • Capacitors features
    • Service life
    • ESR value

    1.74 € 1.74 € (wo VAT) 1.74 EUR

    1.74 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: hybrid; 270uF; 35VDC; ESR: 20mΩ; ZE; SMD; ±20%; -55÷125°C

    Mounting SMD
    Operating voltage 35V DC
    Operating temperature -55...145°C
    Tolerance ±20%
    Operating current 900mA
    Body dimensions Ø10x10.2mm
    Capacitance 270µF
    Type of capacitor hybrid
    Conform to the norm AEC-Q200
    Capacitors features high temperature reflow, long life
    Service life 2000h
    ESR value 20mΩ
